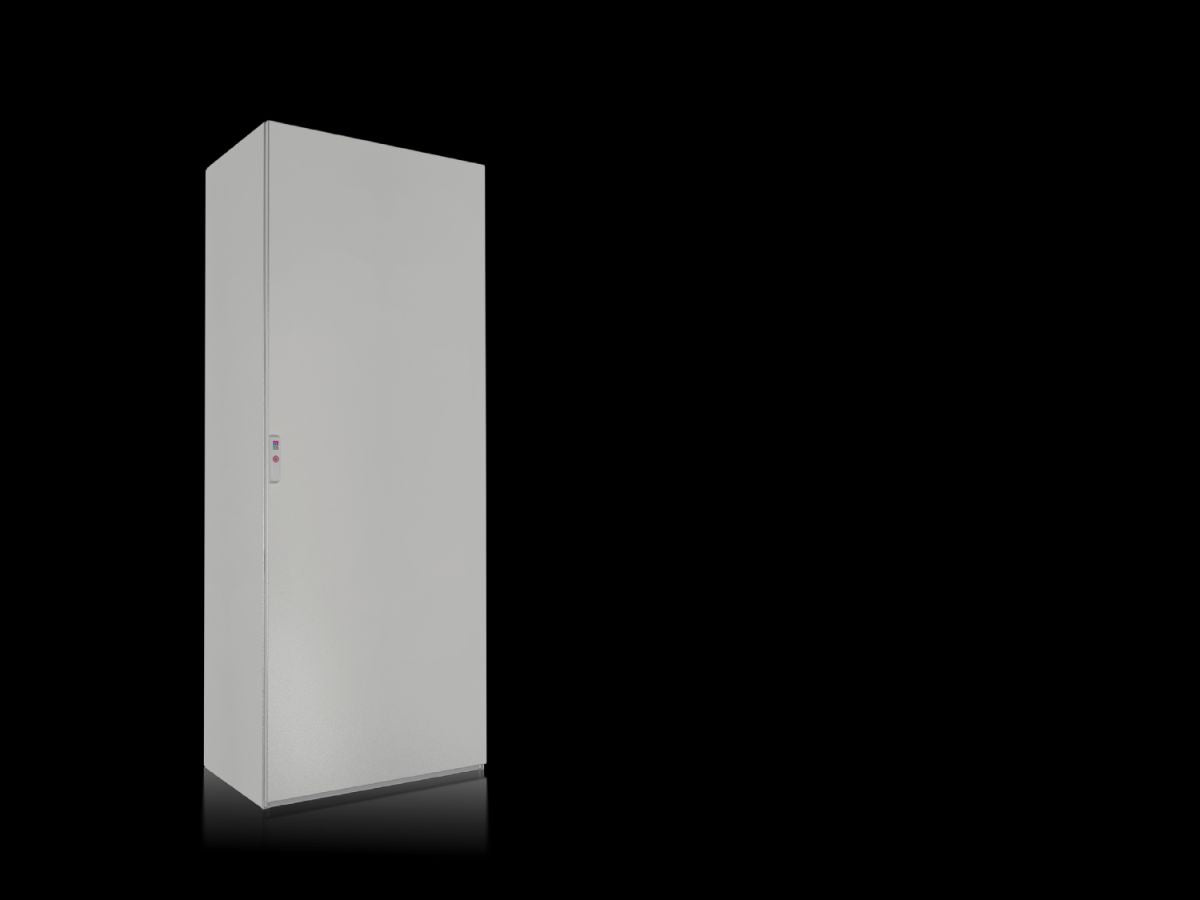

Rittal SE 5833.600, VX SE free-standing enclosure system
Rittal SE 5833.600, VX SE free-standing enclosure system
Regular price
€815,30
Regular price
Sale price
€815,30
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SE 5833.600
Free-standing sheet steel enclosure with stable enclosure body, two integral mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. System-compatible for configuration with VX25 accessories. Efficiency is enhanced, as the side panels no longer need to be fitted and large enclosure widths replace small bayed suites.
| Article number: | SE 5833.600 |
| Material | Enclosure: Sheet steel 1.5 mmDoor: Sheet steel, 2.0 mmRear panel: Sheet steel, 1.5 mmGland plates: Sheet steel, 1.5 mmMounting plate: Sheet steel, 3.0 mm |
| Surface finish | Enclosure, door and rear panel: dipcoat-primed, powder-coated on the outside, textured paintMounting plate and gland plates: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure, solid top and sidesDoor(s)R/h door hinge with single-door enclosures, may be swapped to opposite sideMounting plateGland platesRear panel, detachableLock: 3 mm double-bit2 punched rails 18 x 39 mmRear panel, one-piece |
| Dimensions | Width: 800 mmHeight: 2,000 mmDepth: 500 mm |
| Dimensions mounting plate (W x H) | 699 mm x 1,896 mm |
| Protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Type rating to UL 50E | Type 1 |
| IK Code | IK10 |
| Number of doors | 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 134.32 kg |
| Gross weight | 136.2 kg |
| PCF per pack (cradle-to-gate) | 518.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177959217 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX SE free-standing enclosure system, WHD: 800x2000x500 mm, sheet steel, with mounting plate, single door at the front |
