Rittal SE 5852.600, VX SE free-standing enclosure system Stainless steel
Rittal SE 5852.600, VX SE free-standing enclosure system Stainless steel
Regular price
€2.898,39
Regular price
Sale price
€2.898,39
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SE 5852.600

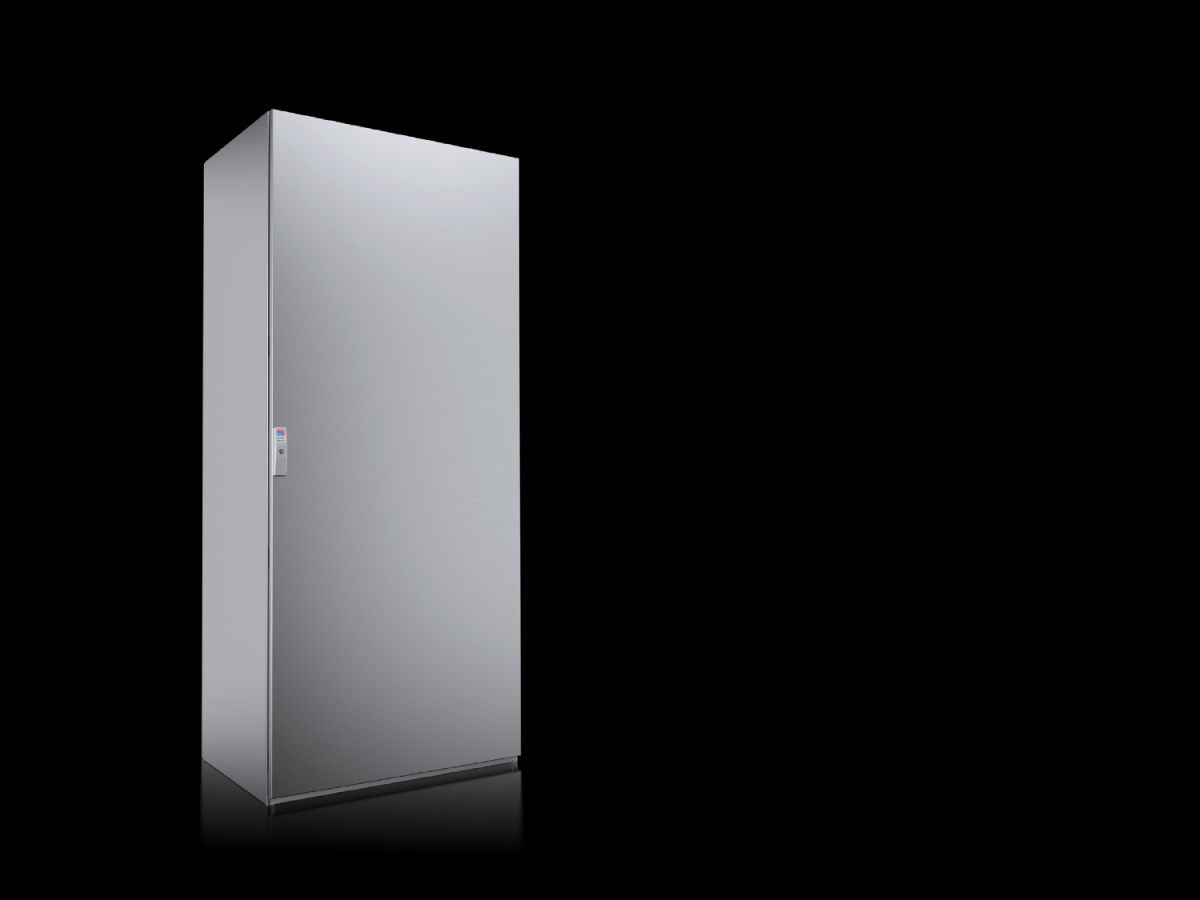

Free-standing stainless steel enclosure with stable enclosure body, two integral mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. Fully compatible with the VX25 baying system. Enclosure widths ranging from 600 to 1200 mm. Efficiency is enhanced, as the side panels no longer need to be fitted.
| Article number: | SE 5852.600 |
| Material | Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushedDoor: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushedRear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushedGland plates: Stainless steel 1.4301 (AISI 304), 1.5 mmMounting plate: Sheet steel, 3.0 mm |
| Surface finish | Enclosure, door and rear panel: Brushed, grain size 400Gland plates: UncoatedMounting plate: Zinc-plated |
| Supply includes | Enclosure, solid top and sidesDoor(s)R/h door hinge with single-door enclosures, may be swapped to opposite sideRear panel, detachableMounting plateGland platesLock: 3 mm double-bit2 punched rails 18 x 39 mm |
| Dimensions | Width: 800 mmHeight: 1,800 mmDepth: 500 mm |
| Dimensions mounting plate (W x H) | 699 mm x 1,696 mm |
| Protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Type rating to UL 50E | Type 1 |
| IK Code | IK10 |
| Number of doors | 1 |
| Note | Due to the hardness of the material, we recommend using metal multi-tooth screws 2486.400 for the interior installation. |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| Packs of | 1 pc(s). |
| Net weight | 119.85 kg |
| Gross weight | 125.35 kg |
| EAN | 4028177959354 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX SE Free-standing enclosure system, WHD: 800x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front |
