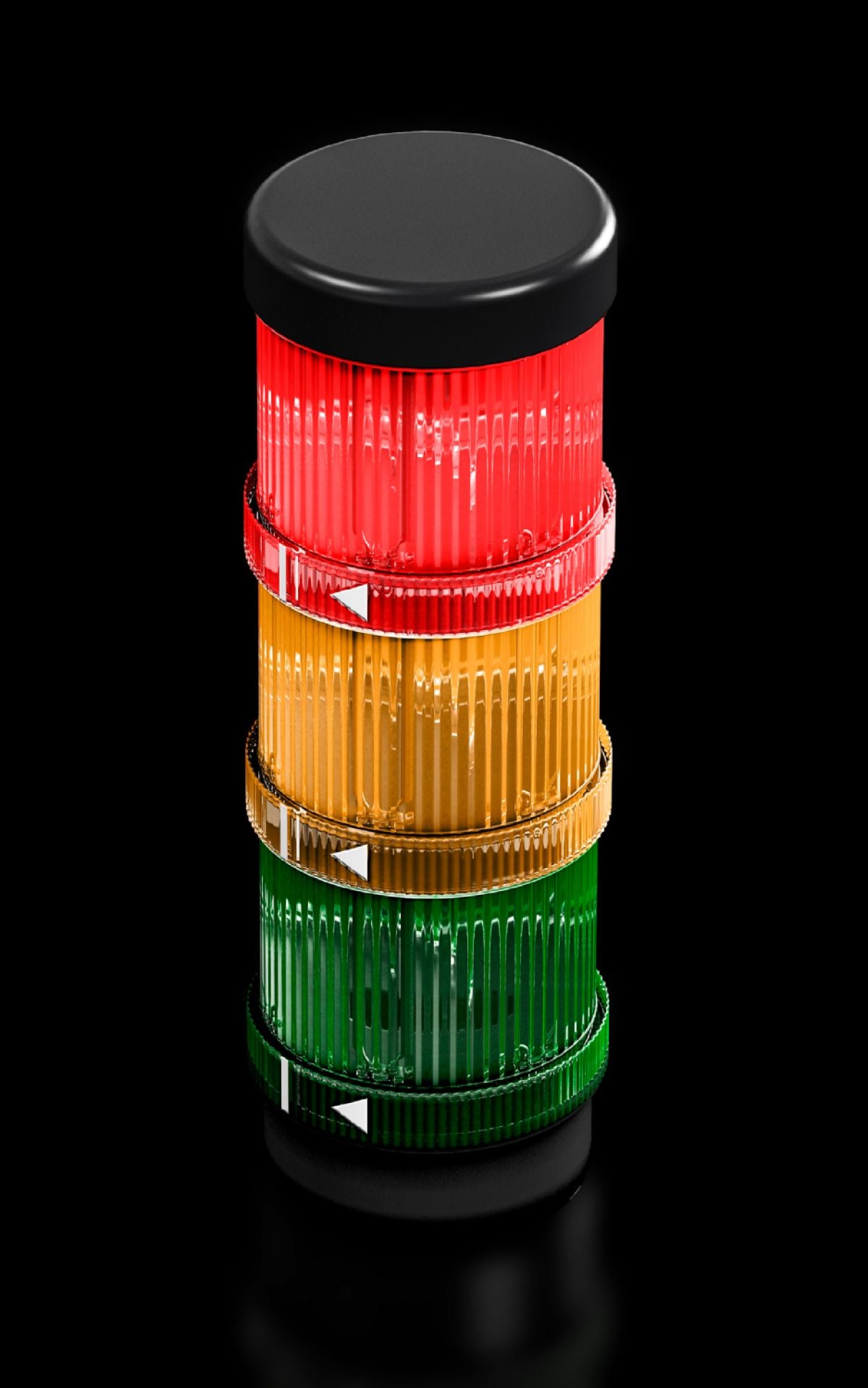

Rittal SG 2372.101, Signal pillar 3-way LED
Rittal SG 2372.101, Signal pillar 3-way LED
Regular price
€179,71
Regular price
Sale price
€179,71
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SG 2372.101
Identify malfunctions and operating statuses in machines and automated processes immediately with Rittal’s flexible range of signal pillars to suit all applications. If you only need three standard signal colours, the plug-and-play 3-way LED signal system is the ideal choice.
| Article number: | SG 2372.101 |
| Design | for conduit mounting |
| Benefits | Complete, ready-to-connect solution |
| Technical specifications | 3-stage, red, yellow, green |
| Cable entry | Min. cable diameter: 3 mmMax. cable diameter: 6.5 mm |
| Type of electrical connection | Screwless spring terminals |
| Light | LEDs |
| Dimensions | Height: 211.5 mm |
| Operating temperature range | -20 °C...50 °C |
| Protection category to IEC 60 529 | IP 65 |
| Rated operating voltage | 24 V |
| Thread | M12 x 1.5 |
| Packs of | 1 pc(s). |
| Net weight | 0.25 kg |
| Gross weight | 0.308 kg |
| Customs tariff number | 85318070 |
| EAN | 4028177953758 |
| ETIM 9 | EC001042 |
| ETIM 8 | EC001042 |
| ECLASS 8.0 | 27371230 |
| Product description | SG signal pillar, LED compact for tube |
