Rittal

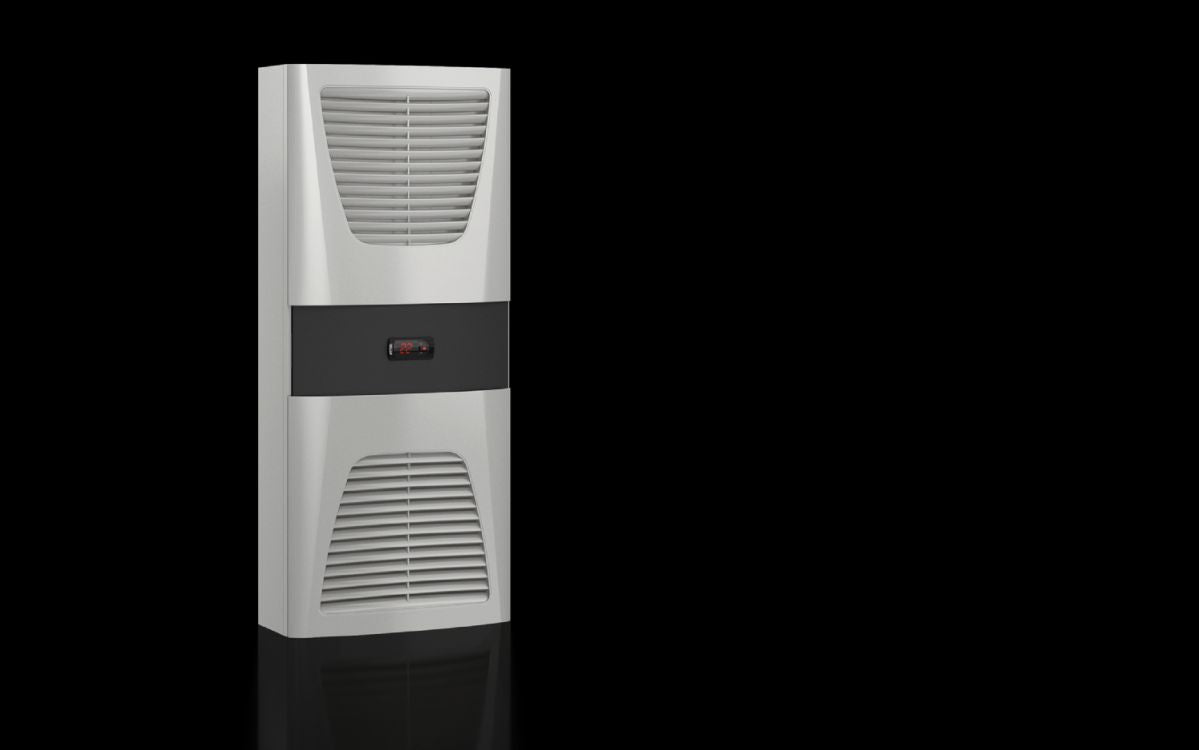

Rittal SK 3129.100, TopTherm air-air heat exchanger wall-mounted with controller
Rittal SK 3129.100, TopTherm air-air heat exchanger wall-mounted with controller
Regular price
€1.238,34
Regular price
Sale price
€1.238,34
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3129.100
Fully wired wall-mounted heat exchanger unit with controller and digital temperature display.
| Article number: | SK 3129.100 |
| Design | wall-mounted |
| Product description | Air/air heat exchangers are particularly well-suited to aggressive ambient conditions, because the internal and external air circuits are completely separate from one another. |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready for connectionPlug-in terminal stripFloating fault signal contact in case of overtemperatureDrilling templateAssembly parts |
| Specific thermal output | 60 W/K |
| Air throughput (unimpeded air flow) | External circuit with 50 Hz: 860 m³/hExternal circuit with 60 Hz: 900 m³/hInternal circuit at 50 Hz: 860 m³/hInternal circuit at 60 Hz: 900 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated current max. | At 50 Hz: 0.75 AAt 60 Hz: 0.8 A |
| Dimensions | Width: 400 mmHeight: 950 mmDepth: 225 mm |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Temperature control | Electronic control with digital display (factory setting +35 °C) |
| Operating temperature range | -5 °C...55 °C |
| IP protection category to IEC 60 529 | Internal circuit IP 54 |
| Packs of | 1 pc(s). |
| Net weight | 20.664 kg |
| Gross weight | 22.752 kg |
| Customs tariff number | 84158300 |
| EAN | 4028177388987 |
| ETIM 9 | EC002514 |
| ETIM 8 | EC002514 |
| ECLASS 8.0 | 27180711 |
| Product description | SK Air/Air heat exchanger TopTherm, wall-mounted with controller, 60 W/K, 230 V, 1~, 50/60 Hz, WHD: 400 x 950 x 225 mm |
