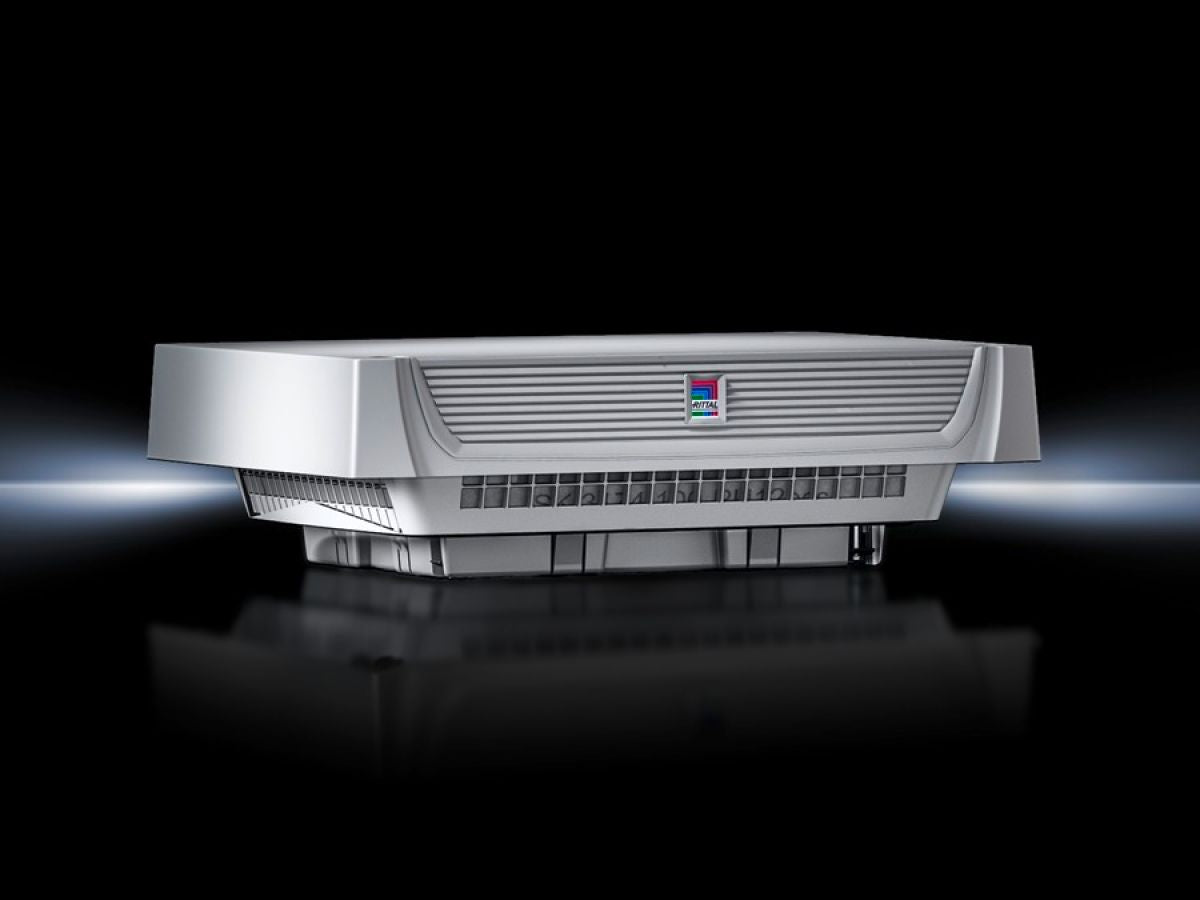

Rittal SK 3138.000, Roof-mounted fan, roof vent
Rittal SK 3138.000, Roof-mounted fan, roof vent
Regular price
€133,30
Regular price
Sale price
€133,30
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3138.000
The new generation of roof-mounted fans is one system for all sizes: only one mounting cut-out is needed for all output categories. Air routing with minimal pressure losses ensures a high level of efficiency, while an innovative clamping attachment supports a high protection category of IP54.
| Article number: | SK 3138.000 |
| Design | roof-mounted |
| Product description | Roof-mounted fan with a high protection category and flexible installation from the inside or outside. |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including pleated filter |
| Fan | without fan motor |
| Dimensions | Width: 400 mmHeight: 133 mmDepth: 400 mm |
| Installation depth | 27.5 mm |
| Mounting cut-out | Cut-out width: 258 mmCut-out depth: 258 mm |
| IP protection category to IEC 60 529 | IP 21 without filter mat |
| Protection category NEMA | NEMA 12 |
| Note | A chopped-fibre filter filter may optionally be used to increase the protection category to IP 55 (see accessories). |
| Operating temperature range | -20 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Packs of | 1 pc(s). |
| Net weight | 3.2 kg |
| Gross weight | 3.5 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177709188 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK roof-mounted fan, roof vent, WHD: 400 x 133 x 400 mm, without fan motor |
