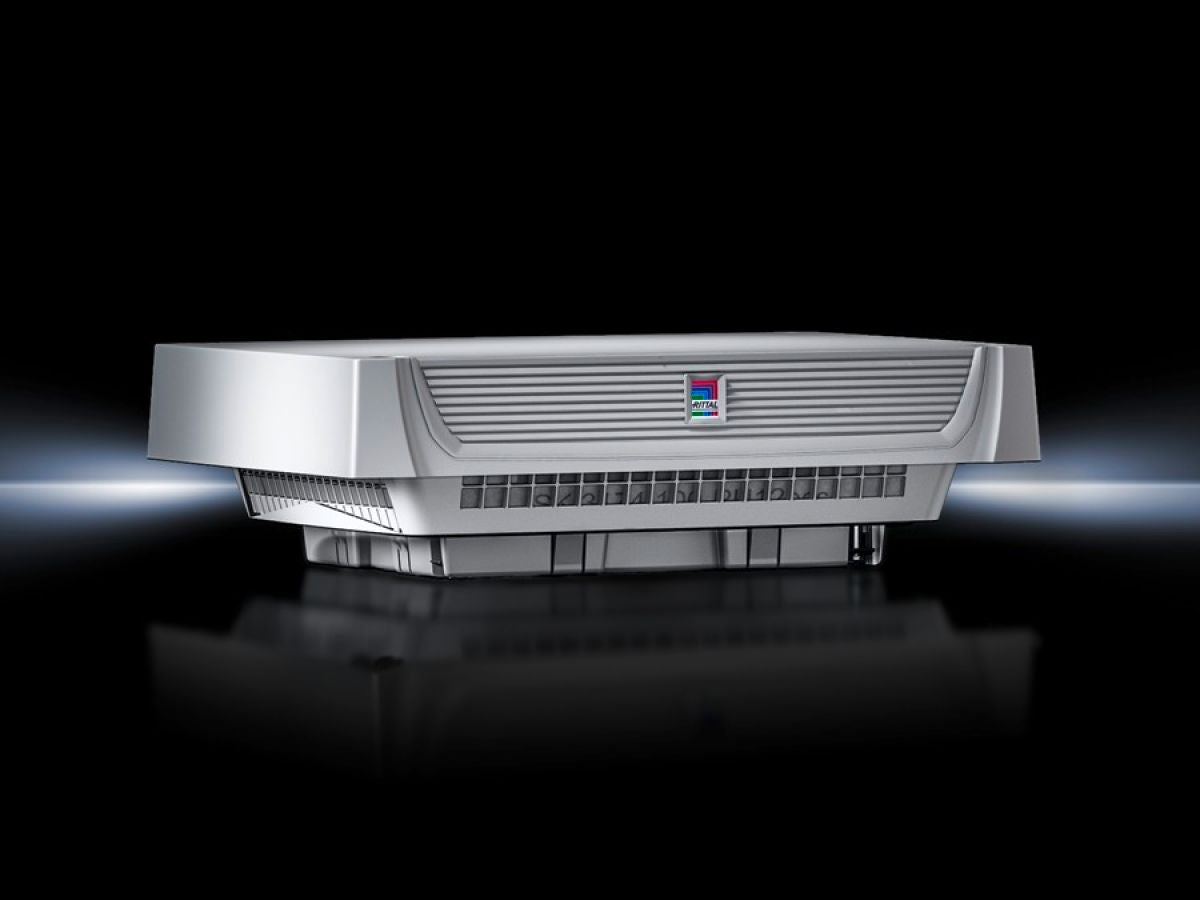

Rittal SK 3140.510, Roof-mounted fans with EC technology
Rittal SK 3140.510, Roof-mounted fans with EC technology
Regular price
€618,50
Regular price
Sale price
€618,50
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3140.510
The new generation of roof-mounted fans (EC variant) is one system for all sizes: only one mounting cut-out is needed for all output categories. Air routing with minimal pressure losses ensures a high level of efficiency, while an innovative clamping attachment supports a high protection category of IP54. The fan may be activated via the control interface with tacho signal output integrated as standard, and monitoring of the fan speed and function is supported.
| Article number: | SK 3140.510 |
| Design | roof-mountedEC |
| Product description | Energy-efficient and powerful design of the roof-mounted fans. The fan may be activated via the control interface with tacho signal output integrated as standard, and monitoring of the fan speed and function is supported. |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including pleated filter |
| Fan | Radial, EC motor |
| Air throughput, unimpeded airflow (with pleated filter) | At 60 Hz: 975 m³/h |
| Air throughput, unimpeded air flow (without filter mats) | At 60 Hz: 1,069 m³/h |
| Air flow (with pleated filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat | 1 x 3243200: 690 m³/h |
| Air flow (without filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat | 1 x 3243200: 690 m³/h |
| Rated operating voltage | 115 V, 1~, 60 Hz |
| Power consumption Pel | At 60 Hz: 112 W |
| Rated current max. | At 60 Hz: 1.51 A |
| Dimensions | Width: 400 mmHeight: 133 mmDepth: 400 mm |
| Installation depth | 34.6 mm |
| Mounting cut-out | Cut-out width: 258 mmCut-out depth: 258 mm |
| IP protection category to IEC 60 529 | IP 21 without filter mat |
| Protection category NEMA | NEMA 12 |
| Control interface | Yes |
| Pre-fuse | Miniature circuit-breaker/fuse: 3 A |
| Note | A chopped-fibre filter filter may optionally be used to increase the protection category to IP 55 (see accessories). |
| Service life of fans (L10, 40 °C) | At 50 Hz: 82,000 hAt 60 Hz: 82,000 h |
| Operating temperature range | -20 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Noise level | At 60 Hz: 60 dB(A) |
| Packs of | 1 pc(s). |
| Net weight | 5.3 kg |
| Gross weight | 6 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177805767 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK roof-mounted fan TopTherm, 1069/1069 m³/h, 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm, EC-Technology |
