Rittal

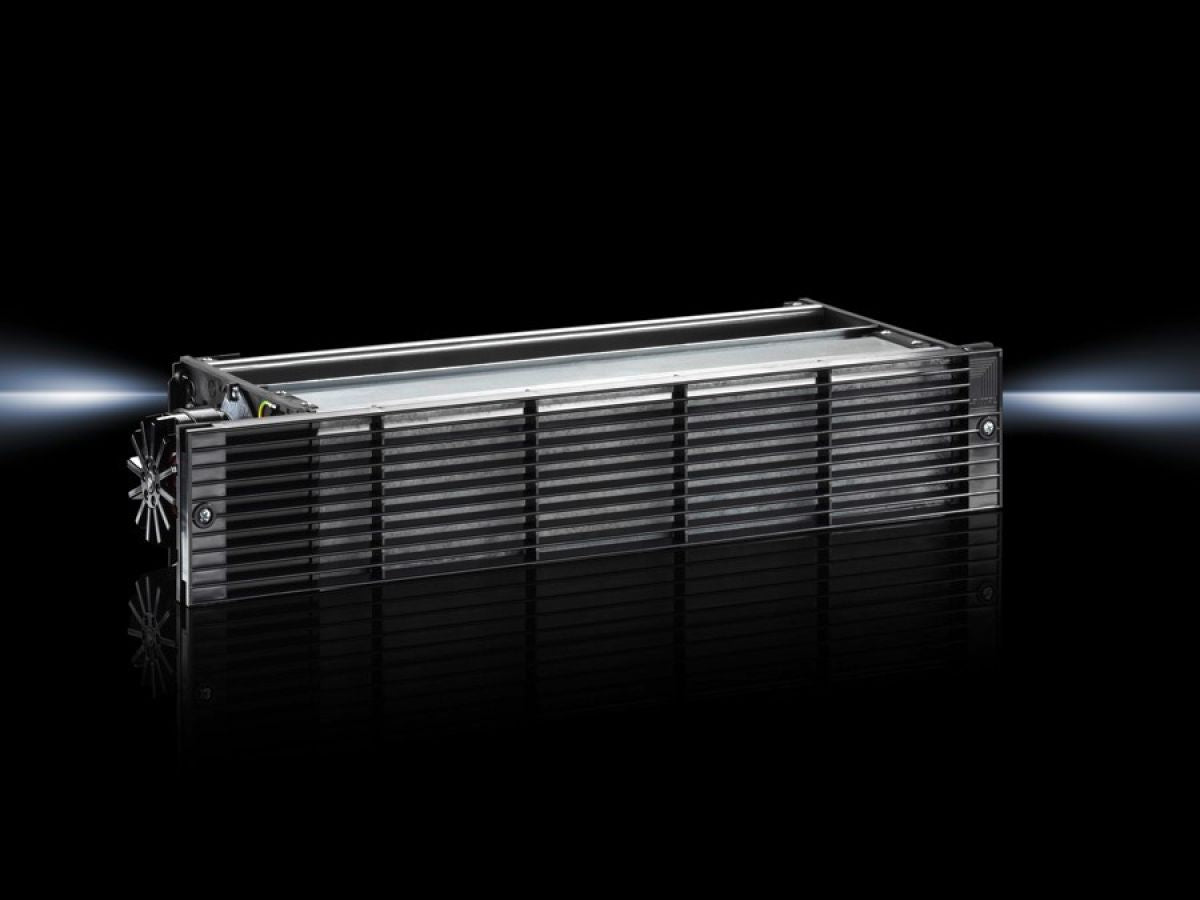

Rittal SK 3145.000, Tangential fans for 482.6 mm (19") Air throughput 320 m³/h
Rittal SK 3145.000, Tangential fans for 482.6 mm (19") Air throughput 320 m³/h
Regular price
€273,81
Regular price
Sale price
€273,81
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3145.000
2 U tangential fan with up to 320 m3/h air throughput. The minimal noise generation of 52 dB makes it suitable for use in office environments.
| Article number: | SK 3145.000 |
| Product description | Centrifugal fans for direct installation in the 482.6 mm (19") level have a wide column plus favourable noise characteristics to set them apart from other fans. |
| Colour | RAL 9005 |
| Supply includes | Fully wired unit ready for connectionFilter mat |
| Speed | 2,245 rpm |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Power consumption Pel | At 50 Hz: 37 WAt 60 Hz: 46 W |
| Rated current max. | At 50 Hz: 0.32 A |
| Dimensions | Width: 482.6 mmHeight: 88 mmDepth: 158 mm |
| Noise level | At 50 Hz: 52 dB(A)At 60 Hz: 62 dB(A) |
| Maximum static pressure difference | 65 ‐ 70 Pa |
| Operating temperature range | -10 °C...55 °C |
| Internal circuit at 50 Hz | 320 m³/h |
| Internal circuit at 60 Hz | 330 m³/h |
| Packs of | 1 pc(s). |
| Net weight | 2.3 kg |
| Gross weight | 2.388 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177037151 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK Tangential fans for 486. mm (19") installation, 320 m³/h, 115 V, 50/60 Hz, WHD: 482.6x88x158 mm |
