Rittal

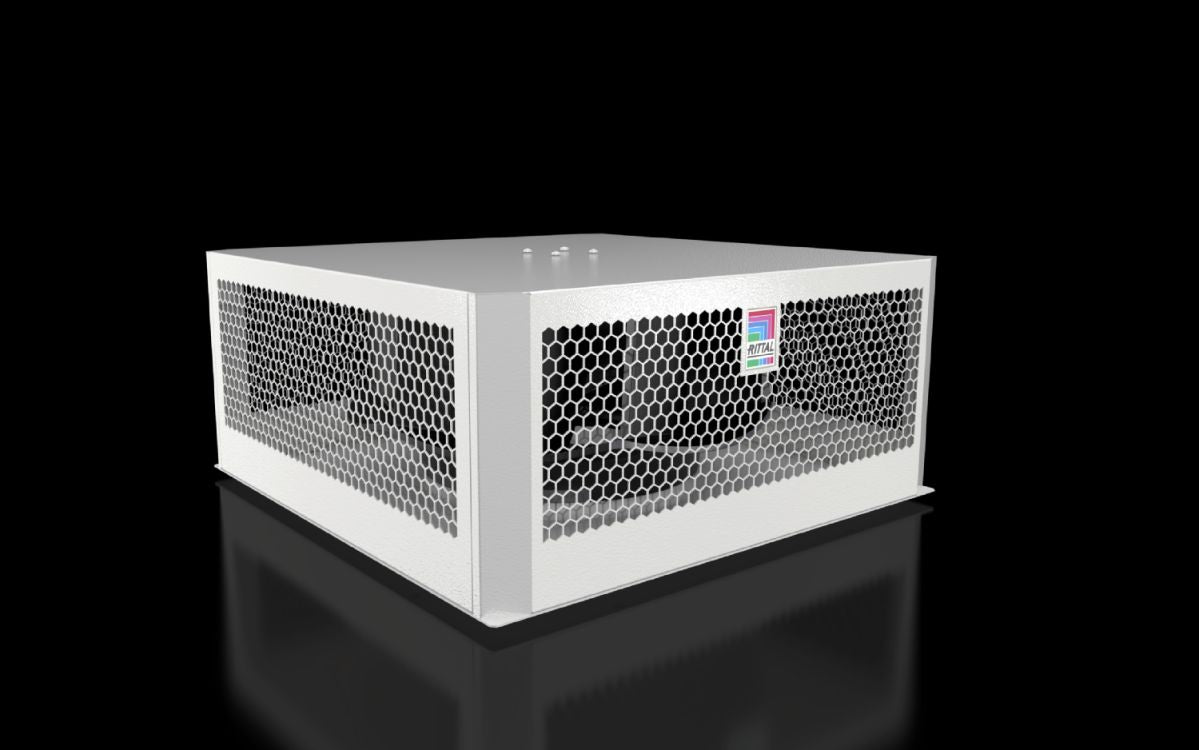

Rittal SK 3166.230, Roof-mounted fans for VX IT, TS IT
Rittal SK 3166.230, Roof-mounted fans for VX IT, TS IT
Regular price
€811,28
Regular price
Sale price
€811,28
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3166.230
Roof-mounted fan with an exceptionally low noise level of 39 dB(A) and a high volumetric flow (unimpeded air flow 1245 to 1345 m³/h), for use in office environments.
| Article number: | SK 3166.230 |
| Benefits | Simple connection system with C13 IEC 320 socket |
| Applications | for the office sector |
| Function principle | The speed-regulated fan modifies output to the actual requirements |
| Material | Sheet steel, spray-finished |
| Colour | RAL 7035 |
| Supply includes | 1 fan unitSpeed controlFully wired ready for connectionAssembly partsInstallation and Short User's GuideWithout roof plate |
| Rated operating voltage | 200 V - 240 V, 1~, 50 Hz/60 Hz |
| Note on Model No. | Reduction in the specified air throughput to 950 m³/h at 40 Pa counterpressure using two vented base/plinth trim panels |
| Rated current max. | At 50 Hz: 0.3 AAt 60 Hz: 0.3 A |
| Design | Pre-configured |
| Dimensions | Width: 470 mmHeight: 200 mmDepth: 470 mm |
| Mounting cut-out | Width:410 mmDepth:410 mm |
| Protection category to IEC 60 529 | IP 20 |
| Temperature control | Speed-controlled fan |
| Operating temperature range | 5 °C...55 °C |
| Power consumption Pel | Power consumption L35 L35/50 Hz: 30 WPower consumption L35 L35/60 Hz: 30 W |
| Air throughput (unimpeded air flow) | 1,345 m³/h |
| Air throughput (at operating point) | 950 m³/h |
| Noise level (at operating point) | 39 dB(A) |
| Pre-fuse | Miniature circuit-breaker/fuse: 10 A |
| Packs of | 1 pc(s). |
| Net weight | 11.362 kg |
| Gross weight | 11.96 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177966277 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK Roof-mounted fan 200-240 V, 50-60 Hz, speed-controlled, 950 m³/h, for VX IT, for office environments (very quiet), WxHxD: 470x200x470 mm, RAL 7035 |
