Rittal

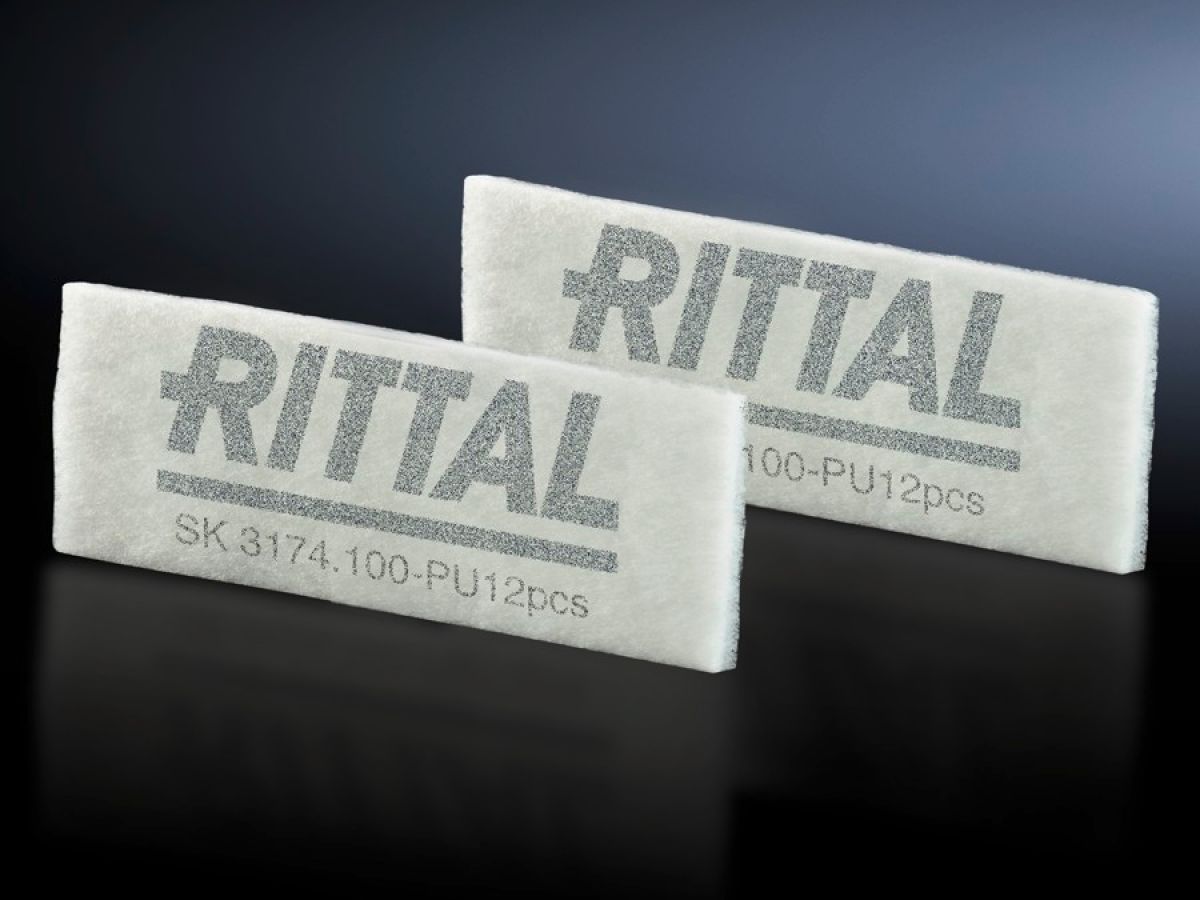

Rittal SK 3174.100, Chopped-fibre filter mat
Rittal SK 3174.100, Chopped-fibre filter mat
Regular price
€42,62
Regular price
Sale price
€42,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3174.100
Spare filter mats for roof-mounted fans, fan-and-filter units or thermoelectric coolers, for effective protection of enclosure components from dirt, dust and water.
| Article number: | SK 3174.100 |
| Design | for roof-mounted fans |
| Product description | Made of chopped-fibre mat with a progressive structure. Temperature-resistant to 100 °C, self-extinguishing category F1 to DIN 53 438. Dust-laden air side: Open structure. Clean-air side: Closed structure. Reliable filtering of virtually all types of dust from a particle size of 10 µm. |
| Material | Chemical fibres |
| Note | Performance data, protection category and device approvals are only guaranteed when used in conjunction with original Rittal filter mats. |
| To fit Model No. | 3138.... |
| Dimensions | Width: 264 mmHeight: 95 mmDepth: 17 mm |
| Filter class | to DIN EN 779: G3 |
| IP protection category to IEC 60 529 | IP 55 in roof-mounted fans |
| Packs of | 12 pc(s). |
| Net weight | 0.012 kg |
| Gross weight | 0.1 kg |
| Customs tariff number | 56039390 |
| EAN | 4028177709218 |
| ETIM 9 | EC002513 |
| ETIM 8 | EC002513 |
| ECLASS 8.0 | 27180706 |
| Product description | SK spare filter mat, for roof-mounted fans, for SK 3138./3139./3140. WHD: 264 x 95 x 17 mm |
