Rittal

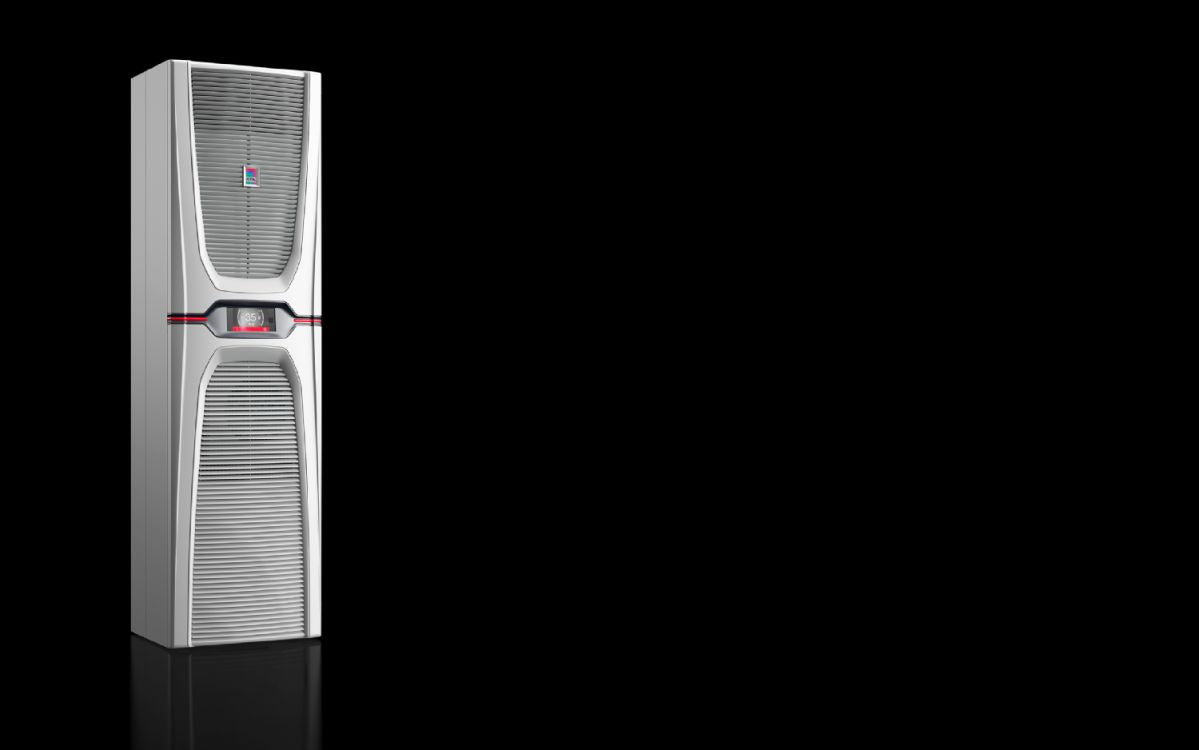

Rittal SK 3189.945, Wall-mounted cooling unit Blue e+ chemical 1.6 - 5.5 kW
Rittal SK 3189.945, Wall-mounted cooling unit Blue e+ chemical 1.6 - 5.5 kW
Regular price
€6.202,43
Regular price
Sale price
€6.202,43
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3189.945
Energy-efficient Blue e+ wall-mounted chemical industry cooling units in output classes ranging from 1600 W to 5500 W. Thanks to a special surface finish, these units provide components with optimum protection in contaminated environments – especially in applications where the air may contain sulphuric acid aerosols.
| Article number: | SK 3189.945 |
| Design | wall-mountedchemical |
| Benefits | Average 75% energy savings thanks to speed-regulated components and heat pipe technology |
| Product modification | The cover for the connection box to protect the electrical connection to the cooling unit has not been included with the supply since the start of 2024. Covers 3355.200 and 3355.210 can be ordered as optional accessories. |
| Applications | Applications where the air may contain sulphuric acid aerosols (e.g. paper industry, food industry, chemical industry, electroplating and offshore operations) |
| Material | Sheet steel |
| Surface finish | Sheet metal parts and electronics: Clear varnish coatingCooling circuit with two-component PUR coating |
| Colour | RAL 7035 |
| Supply includes | Condenser with hydrophobic RiNano coatingIntegral electric condensate evaporationAssembly partsFully wired ready for connection (plug-in terminal strip) |
| Options | For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages. |
| Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 5.5 kWCooling output L35 L35/60 Hz: 5.5 kWCooling output L35 L50/50 Hz: 3.95 kWCooling output L35 L50/60 Hz: 3.95 kW |
| Rated operating voltage | 380 V - 480 V, 3~, 50 Hz/60 Hz |
| Note | Please observe the mounting instructions. |
| Note on Model No. | Tolerance: 380 V -10% (342 V) and 480 V +5% (509 V) |
| Rated power input | 2.35 kW |
| Air throughput (unimpeded air flow) | External circuit: 2,300 m³/hInternal circuit: 2,300 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 2.5Refrigeration factor L35 L35 (EER) 60 Hz: 2.5 |
| Seasonal energy efficiency ratio (SEER) 50/60 Hz | 5.6 |
| Design | wall-mounted |
| Dimensions | Width: 450 mmHeight: 1,600 mmDepth: 393 mm |
| Required mounting cut-out | Cut-out width: 433 mmCut-out height: 1,579 mm |
| Protection category to IEC 60 529 | Internal circuit IP 55 |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 1.8 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 1.14 t |
| Temperature control | e+ controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...60 °C |
| Storage temperature range | -40 °C...70 °C |
| Operating temperature range of refrigerant circuit (active) | 3 °C...60 °C |
| Heat pipe operating temperature range | -20 °C...45 °C |
| Setting range | 20 °C...50 °C |
| Power consumption Pel | Power consumption L35 L35/50 Hz: 2.2 kWPower consumption L35 L35/60 Hz: 2.2 kWPower consumption L35 L50/50 Hz: 2.2 kWPower consumption L35 L50/60 Hz: 2.2 kW |
| Permissible operating pressure (p. max.) | 24 bar |
| Packs of | 1 pc(s). |
| Net weight | 80 kg |
| Gross weight | 90 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177935563 |
| Product description | SK Cooling unit Blue e+ chemical industry design, wall-mounted, 5.5 kW, 380-480 V, 3~, 50-60 Hz, sheet steel, WHD: 450 x 1600 x 393 mm |
