Rittal

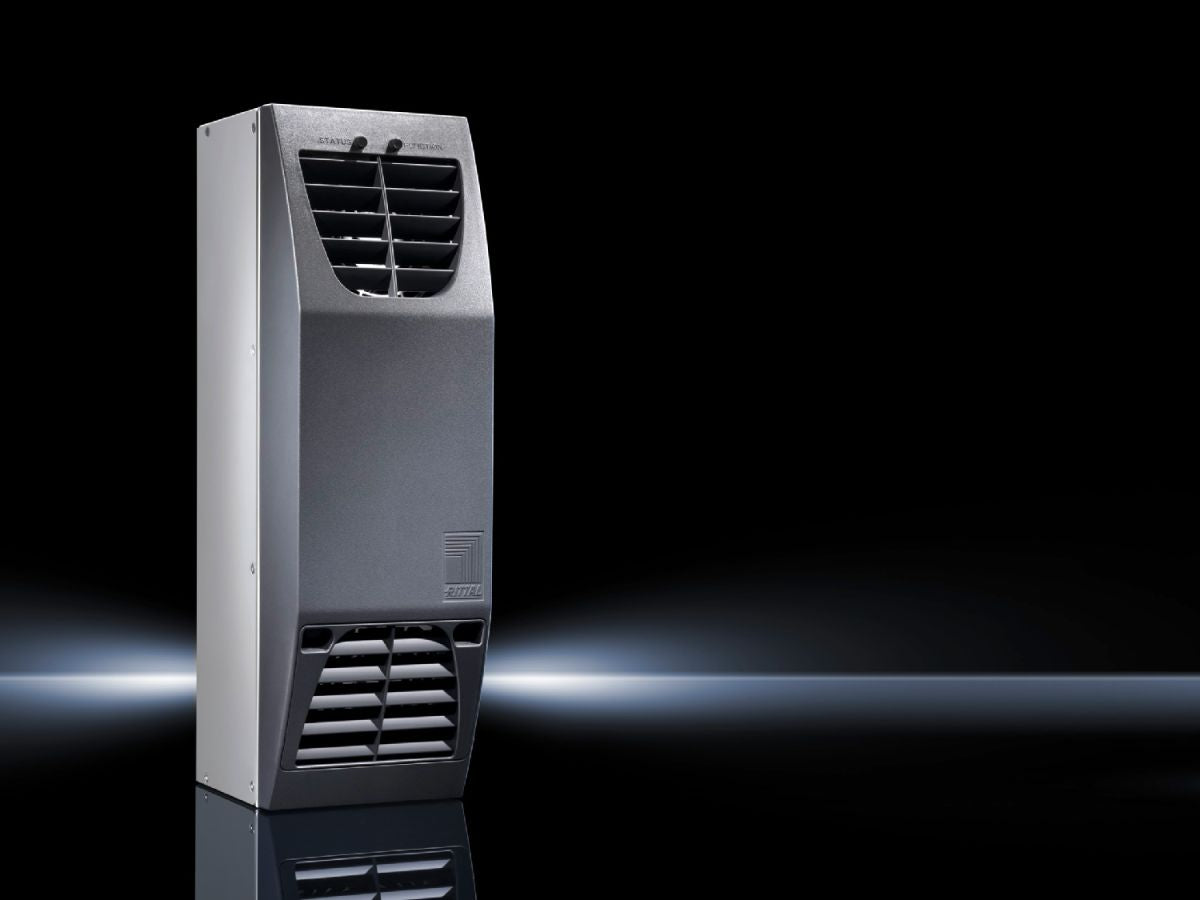

Rittal SK 3201.300, Thermoelectric cooler Total cooling/heating output 80/80 W
Rittal SK 3201.300, Thermoelectric cooler Total cooling/heating output 80/80 W
Regular price
€856,80
Regular price
Sale price
€856,80
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3201.300
The powerful, lightweight climate control units based on Peltier technology provide efficient cooling of command panels and small enclosures. Cooling/heating output 80/80 W.
| Article number: | SK 3201.300 |
| Product description | Powerful thermoelectric cooling units in a lightweight design for the climate control of command panels and small enclosures. |
| Material | Device: Aluminium, anodised |
| General colour | RAL 7015 |
| Colour | Cover: RAL 7015 |
| Supply includes | Thermoelectric climate control unitFully wired ready for connection (plug-in terminal strip)Mounting accessoriesFilter matUSB cable A/BDrilling template |
| Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 80 W |
| Total cooling output L35 L30 | Cooling output L35 L30/50 Hz : 100 W |
| Rated operating voltage | 24 V (DC) |
| Rated current max. | 4.5 A |
| Start-up current (LRA) | 4.5 A |
| Air throughput (unimpeded air flow) | External circuit: 45 m³/hInternal circuit: 45 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 0.9 |
| Thermal output | 80 W |
| Design | wall-mounted |
| Dimensions | Width: 125 mmHeight: 400 mmDepth: 155 mm |
| Protection category to IEC 60 529 | External circuit IP 34 |
| Type of electrical connection | Plug-in spring connection terminal |
| Temperature control | PID control (factory setting: cooling +35 °C / heating +5 °C) |
| Operating temperature range | -30 °C...55 °C |
| Cooling setting range | 5 °C...55 °C |
| Heating setting range | -10 °C...20 °C |
| Pre-fuse | Miniature circuit-breaker/fuse: 10 A |
| Packs of | 1 pc(s). |
| Net weight | 3.249 kg |
| Gross weight | 3.449 kg |
| Customs tariff number | 84186900 |
| EAN | 4028177598621 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| ECLASS 8.0 | 27180704 |
| Product description | SK Thermoelectric cooler, 80 W, 24 V (DC), WHD: 125 x 400 x 155 mm |
