Rittal

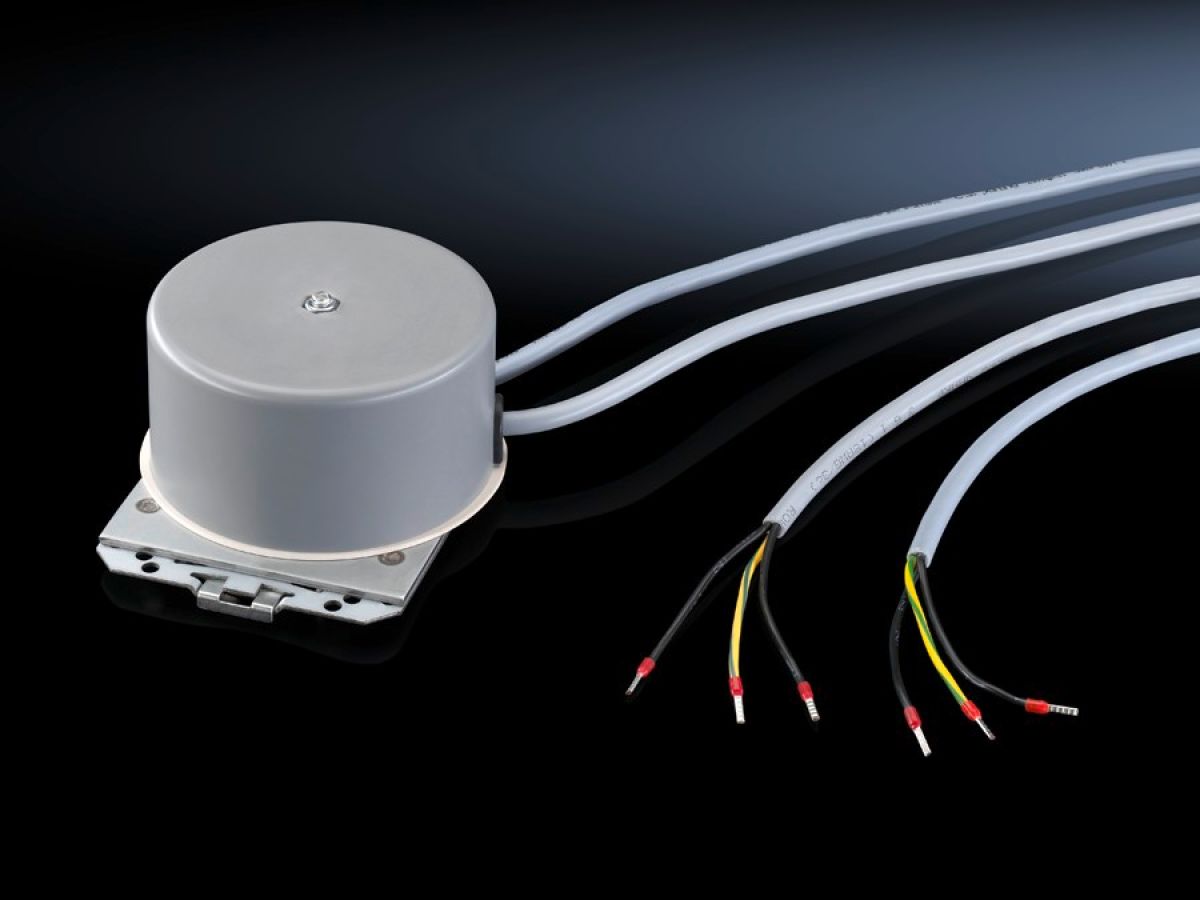

Rittal SK 3201.970, Toroidal transformer Primary connection 115 V/400 V
Rittal SK 3201.970, Toroidal transformer Primary connection 115 V/400 V
Regular price
€218,12
Regular price
Sale price
€218,12
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3201.970
For power supply to wall-mounted 230 V air/water heat exchangers. Available with 115 V or 400 V primary connection.
| Article number: | SK 3201.970 |
| Product description | For the power supply of wall-mounted 230 V air/water heat exchangers. Available with 115 V or 400 V primary connection. |
| Technical specifications | Output 110 VA |
| Supply includes | Toroidal transformerAssembly parts |
| Packs of | 1 pc(s). |
| Snap-mounting to support rails TS 35 | Yes |
| To fit Model No. | 3363.X0X |
| Dimensions | Width: 105 mmHeight: 123 mmDepth: 55 mm |
| Rated operating voltage | 115 V (primary), 1~, 50 Hz/60 Hz |
| Net weight | 2.1 kg |
| Gross weight | 2.355 kg |
| Customs tariff number | 85043121 |
| EAN | 4028177690233 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| ECLASS 8.0 | 27180704 |
| Product description | SK Toroidal transformer, 115 V (primary), 1~, 50/60 Hz, 230 V (secondary), 1~, 50/60 Hz, WHD: 105 x 123 x 55 mm |
