Rittal SK 3201.990, Connection set for air-water heat exchangers
Rittal SK 3201.990, Connection set for air-water heat exchangers
Regular price
€292,95
Regular price
Sale price
€292,95
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3201.990
For professional laying of water connections and regulation of volumetric flow.
| Article number: | SK 3201.990 |
| Product description | For professional laying of water connections and regulation of volumetric flow. The pressure hoses may be cut to length individually, depending on the application. |
| Material | Water-carrying parts EPDM/brass |

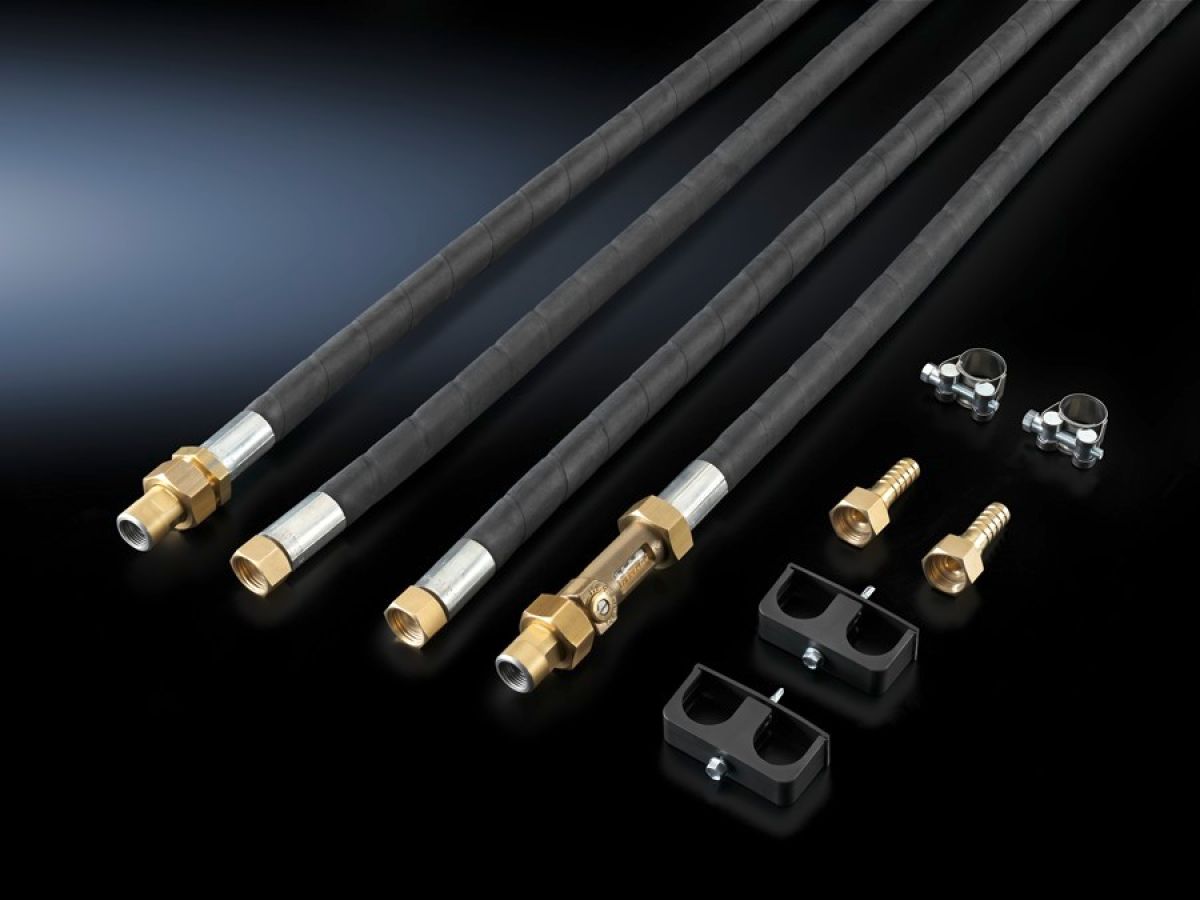

| Supply includes | Hose for water returnHose for water inlet including regulator valve for regulating the volumetric flow (setting range 3 to 12 l/min)Assembly parts |
| Length | 3,600 mm |
| Water connections | G ⅜" internal thread |
| To fit Model No. | 3209.XX0 |
| Dimensions | Length: 3,600 mm |
| Permissible operating pressure (p. max.) | 1 ‐ 10 bar |
| Packs of | 1 pc(s). |
| Net weight | 4 kg |
| Gross weight | 4.58 kg |
| Customs tariff number | 85444290 |
| EAN | 4028177709270 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| ECLASS 8.0 | 27180704 |
| Product description | SK Connection set, for air/water heat exchanger, G 3/8" internal thread, Length: 3600 mm |
