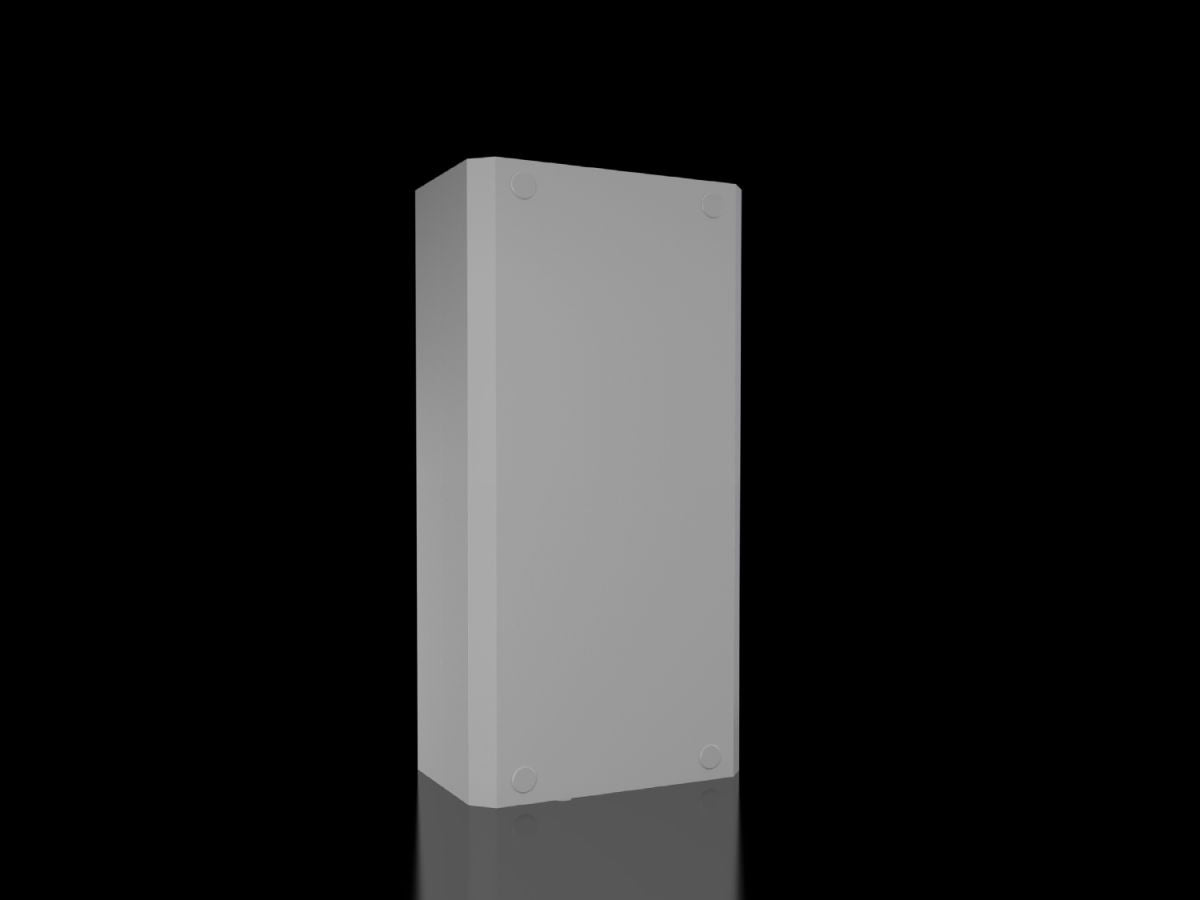

Rittal SK 3212.230, Air-water heat exchangers wall-mounted

Rittal SK 3212.230, Air-water heat exchangers wall-mounted

€625,20
€625,20
Sale Sold out
Taxes included.

📦 Ready for dispatch: 07.12.2025

SKU: SK 3212.230

Output classes 375 – 5,000 W. For use in tough environments. Convenient mounting options and flexible water connection options. External mounting or full internal mounting possible.

Article number: SK 3212.230
Design wall-mountedWater-carrying parts, copper/brass (Cu/CuZn)
Product description For use in harsh environments and temperature ranges up to +70 °C. User-friendly assembly plus flexible water connection options. External mounting or full internal mounting are supported.
Colour RAL 7035
Supply includes Fully wired ready for connectionDrilling templateSealing and assembly parts
Total cooling output L 35 W 10 at 200 l/h: 0.3 kW
Rated operating voltage 230 V, 1~, 50 Hz/60 Hz
Power consumption Pel At 50 Hz: 23 WAt 60 Hz: 27 W
Rated current max. At 50 Hz: 0.11 AAt 60 Hz: 0.13 A
Permissible operating pressure (p. max.) 1 ‐ 10 bar
Duty cycle 100 %
Cooling medium Water (see Internet for specifications)
Water inlet temperature 1 °C...30 °C
Water connections ⅜" connector sleeve
Operating temperature range 1 °C...70 °C
Note Integral non-return valve for version with e-Comfort controller
Dimensions Width: 150 mmHeight: 300 mmDepth: 85 mm
Pre-fuse Miniature circuit-breaker/fuse: 2 A
Setting range 20 °C...55 °C
Protection category to IEC 60 529 IP 55
Packs of 1 pc(s).
Net weight 3.227 kg
Gross weight 3.427 kg
Customs tariff number 84158300
EAN 4028177430938
ETIM 9 EC002515
ETIM 8 EC002515
ECLASS 8.0 27180712
Product description SK Air/water heat exchanger, wall-mounted, 0.3 kW, 230 V, 1~, 50/60 Hz, Water-carrying parts: copper/brass , WHD: 150 x 300 x 85 mm
