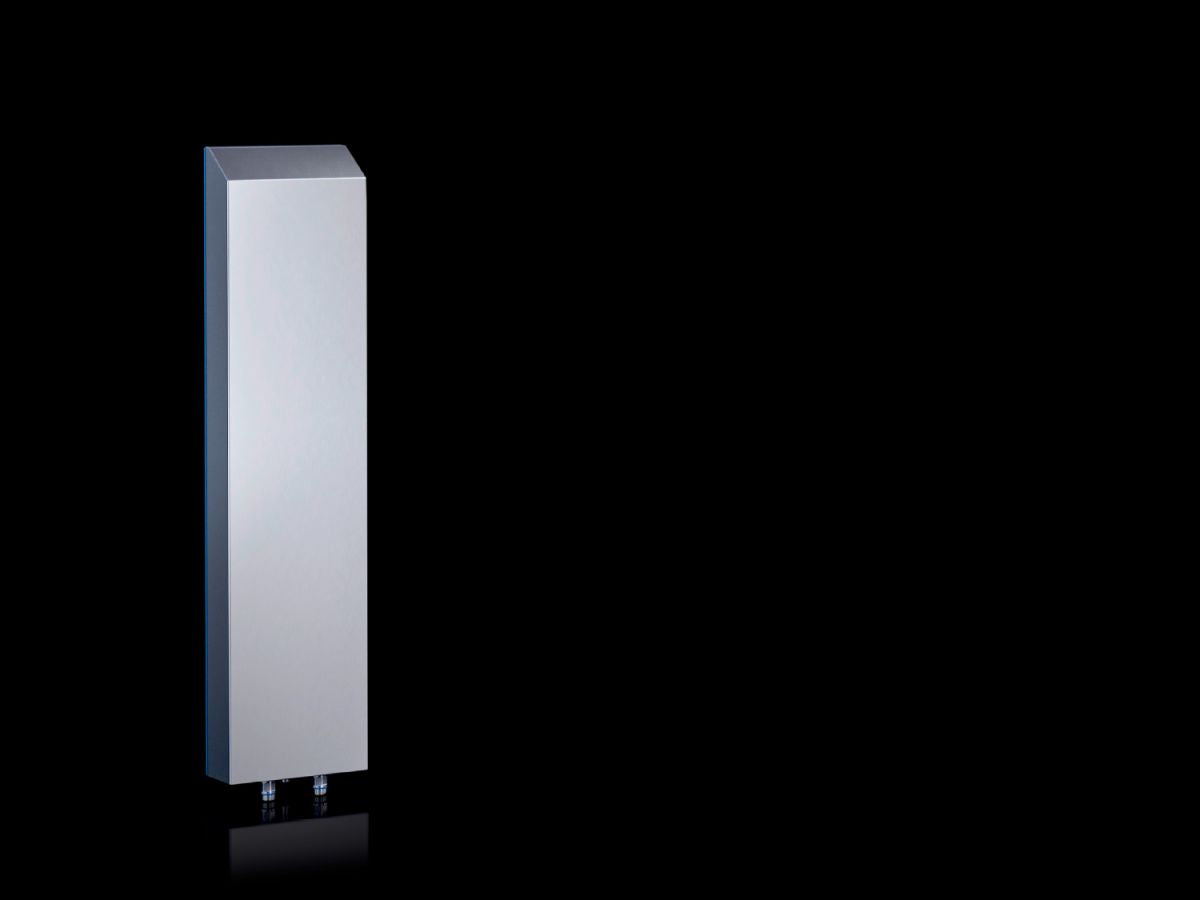

Rittal SK 3215.700, Air-water heat exchangers wall-mounted HD
Rittal SK 3215.700, Air-water heat exchangers wall-mounted HD
Regular price
€1.516,80
Regular price
Sale price
€1.516,80
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3215.700
Air/water heat exchanger for hygiene-critical production zones in the food and beverage industry – the optimum addition to the Rittal Hygienic Design range. The cleaning-friendly design reduces the risk of contamination and ensures food safety.
| Article number: | SK 3215.700 |
| Design | Water-carrying parts, copper/brass (Cu/CuZn) |
| Product description | Air/water heat exchanger for hygiene-critical production zones in the food and beverage industry – the optimum addition to the Rittal Hygienic Design range. The cleaning-friendly design reduces the risk of contamination and ensures food safety. |
| Benefits | Easy-to-clean, hygienic design |
| Material | Enclosure: Stainless steel 1.4301 (AISI 304) |
| Surface finish | Enclosure: Brushed, grain 400, peak-to-valley height < 0.8 µm |
| Supply includes | Fully wired ready for connectionDrilling templateSealing and assembly parts |
| Total cooling output | L 35 W 10 at 200 l/h: 1 kWL 35 W 10 at 400 l/h: 1.2 kW |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Power consumption Pel | At 50 Hz: 77 WAt 60 Hz: 104 W |
| Rated current max. | At 50 Hz: 0.38 AAt 60 Hz: 0.47 A |
| Permissible operating pressure (p. max.) | 1 ‐ 10 bar |
| Duty cycle | 100 % |
| Cooling medium | Water (see Internet for specifications) |
| Water inlet temperature | 1 °C...30 °C |
| Water connections | G ⅜" external thread |
| Temperature control | Thermostat-controlled magnetic valve |
| Temperature monitoring | Internal thermostat, with change-over contact, switching load 16 A, setting range +20 °C ... +60 °C (factory setting +35 °C) |
| Operating temperature range | 1 °C...70 °C |
| Note | To achieve a protection category of IP 66/69 to IEC 60 529, the ingress of leakage air through the condensate discharge opening must be completely prevented. |
| Dimensions | Width: 215 mmHeight: 982 mmDepth: 100 mm |
| Pre-fuse | Miniature circuit-breaker/fuse: 4 A |
| Setting range | 20 °C...60 °C |
| Protection category to IEC 60 529 | IP 56/59 |
| Protection category NEMA | NEMA 4X |
| Packs of | 1 pc(s). |
| Net weight | 14 kg |
| Gross weight | 14 kg |
| Customs tariff number | 84158300 |
| EAN | 4028177806405 |
| ETIM 9 | EC002515 |
| ETIM 8 | EC002515 |
| ECLASS 8.0 | 27180712 |
| Product description | SK Air/water heat exchanger, wall-mounted, HD, 1.2 kW, 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 215 x 982 x 100 mm |
