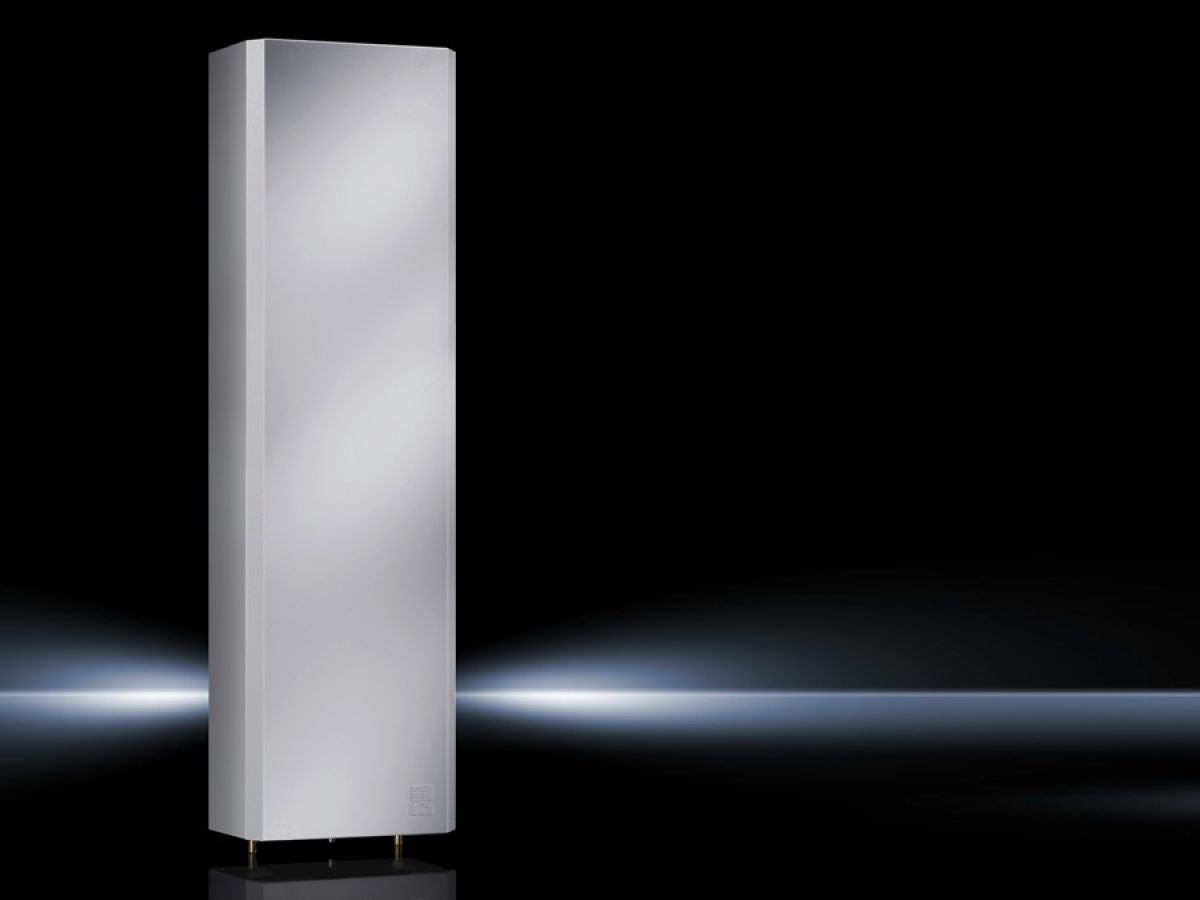

Rittal SK 3216.480, Air-water heat exchangers wall-mounted
Rittal SK 3216.480, Air-water heat exchangers wall-mounted
Regular price
€3.302,70
Regular price
Sale price
€3.302,70
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3216.480
Output category 7000 W. For use in harsh environments. With thermostat-controlled magnetic valve.
| Article number: | SK 3216.480 |
| Design | Water-carrying parts, copper/brass (Cu/CuZn) |
| Product description | For use in harsh environments and temperature ranges up to +70 °C. With thermostatically controlled magnetic valve. |
| Material | Copper/brass (Cu/CuZn) |
| Colour | RAL 7035 |
| Supply includes | Fully wired ready for connection (plug-in terminal strip)Sealing and assembly parts |
| Total cooling output | L 35 W 10 at 500 l/h: 7 kW |
| Rated operating voltage | 400 V, 3~, 50 Hz |
| Rated current max. | At 50 Hz: 1.4 AAt 60 Hz: 1.2 A |
| Permissible operating pressure (p. max.) | 1 ‐ 10 bar |
| Duty cycle | 100 % |
| Cooling medium | Water (see Internet for specifications) |
| Water inlet temperature | 1 °C...30 °C |
| Water connections | ½" connector sleeve |
| Temperature control | Thermostat-controlled magnetic valve |
| Temperature monitoring | Internal thermostat, with change-over contact, switching load 16 A, setting range +20 °C ... +60 °C (factory setting +35 °C) |
| Operating temperature range | 1 °C...70 °C |
| Note | Use 3-pole miniature circuit-breaker |
| Dimensions | Width: 450 mmHeight: 1,800 mmDepth: 300 mm |
| Note on Model No. | Extended delivery times. |
| Pre-fuse | Miniature circuit-breaker/fuse: 4 A |
| Pre-fuse | Motor circuit-breaker: 1.4...2 A |
| Setting range | 20 °C...55 °C |
| Protection category to IEC 60 529 | IP 55 |
| Packs of | 1 pc(s). |
| Net weight | 80 kg |
| Gross weight | 90 kg |
| Customs tariff number | 84158300 |
| EAN | 4028177458642 |
| ETIM 9 | EC002515 |
| ETIM 8 | EC002515 |
| ECLASS 8.0 | 27180712 |
| Product description | SK Air/water heat exchanger, wall-mounted, 7 kW, 400-480, 3~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 450 x 1800 x 300 mm |
