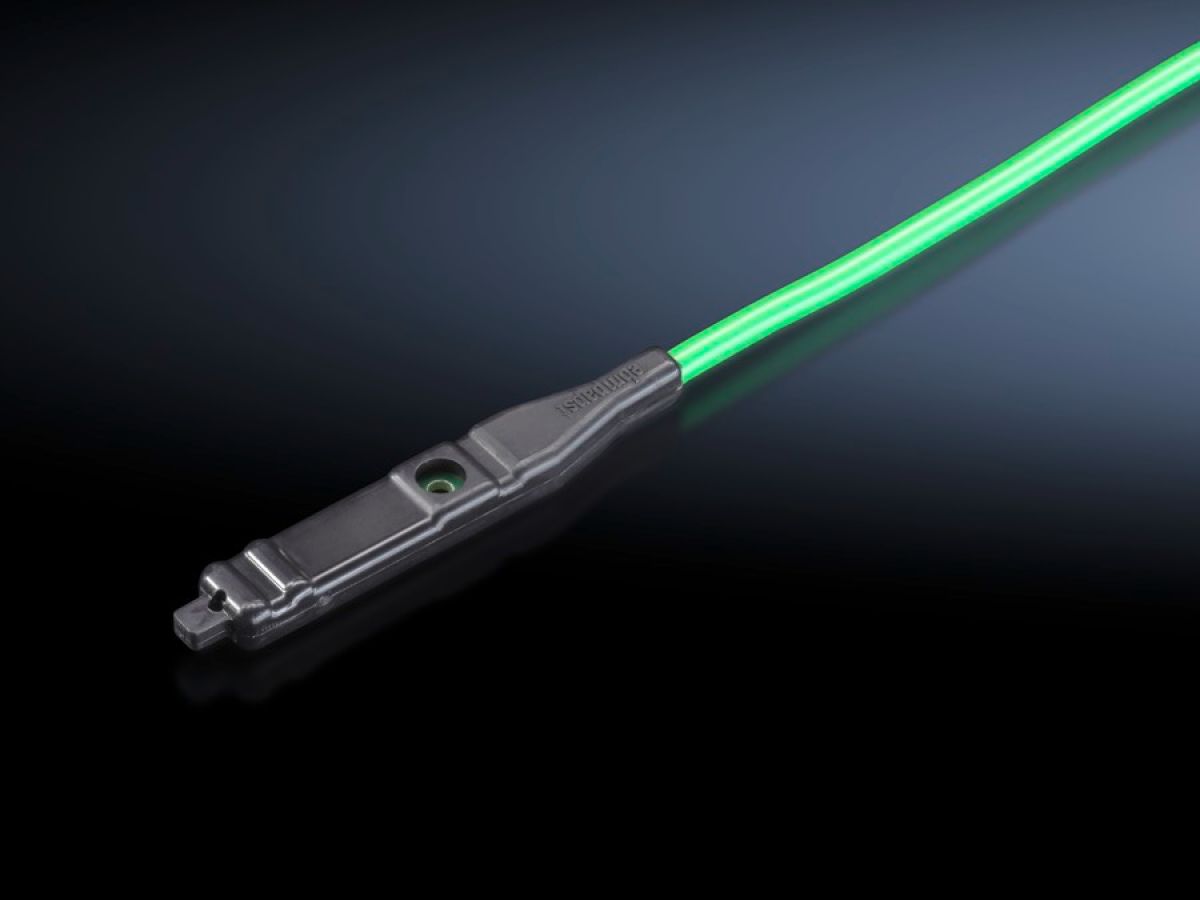

Rittal SK 3235.450, EC speed control Sensor for speed control
Rittal SK 3235.450, EC speed control Sensor for speed control
Regular price
€87,03
Regular price
Sale price
€87,03
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3235.450
NTC sensor for temperature-dependent speed control of EC fans to reduce noise and save energy.
| Article number: | SK 3235.450 |
| Product description | NTC sensor for temperature-dependent speed control of EC fans to reduce noise and save energy. Activation and power supply via an EC fan-and-filter unit. |
| Technical specifications | Control characteristic: fixed setpoint at 35 °C, with linear control range between +35 °C (maximum speed 100%) and +20 °C (minimum speed 10%) |
| Supply includes | External sensor with connection cable (length 3 m) |
| Packs of | 1 pc(s). |
| Speed | 100 % |
| To fit Model No. | 3240.500 |
| Operating temperature range | -25 °C...80 °C |
| Rated operating voltage | 10 V - 12 V (DC) |
| IP protection category to IEC 60 529 | IP 40 |
| Net weight | 0.2 kg |
| Gross weight | 0.202 kg |
| Customs tariff number | 85423190 |
| EAN | 4028177696617 |
| ETIM 9 | EC000256 |
| ETIM 8 | EC000256 |
| ECLASS 8.0 | 27142320 |
| Product description | SK speed control unit EC, Sensor for speed control, 10-12 V (DC) |
