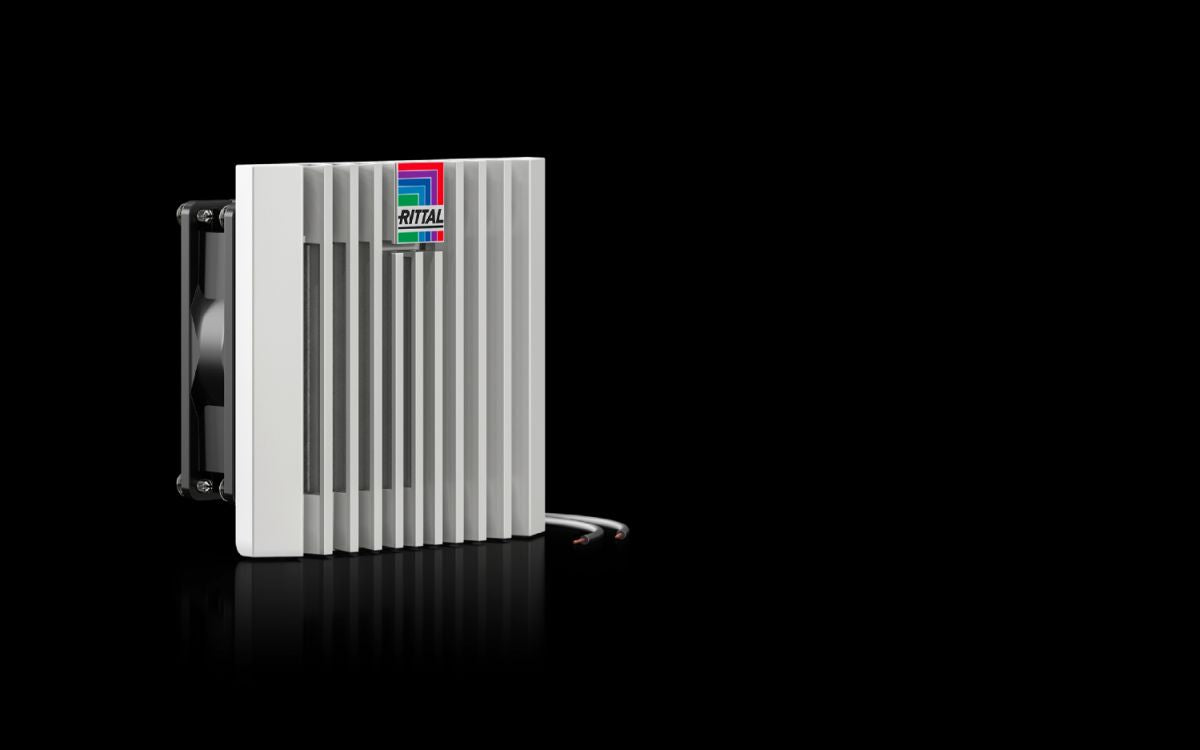

Rittal SK 3237.724, Blue e+ fan-and-filter unit
Rittal SK 3237.724, Blue e+ fan-and-filter unit
Regular price
€86,89
Regular price
Sale price
€86,89
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3237.724
Complete fan-and-filter units for tool-free installation in surfaces. Air throughput 20 – 1,160 m³/h, protection category IP 54 as standard.
| Article number: | SK 3237.724 |
| Design | wall-mounted |
| Product description | Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure. |
| Benefits | Easy filter changes, thanks to a new opening mechanism on the louvred grille |
| Material | Plastic |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including chopped-fibre filter mat |
| Fan | Axial, DC motor |
| Air throughput, unimpeded airflow (with chopped-fibre filter) | With DC: 20 m³/h |
| Air throughput with matching outlet filter including chopped-fibre filter | With DC: 15 m³/h |
| Rated operating voltage | 24 V (DC) |
| Power consumption Pel | With DC: 1.4 W |
| Rated current max. | With DC: 0.06 A |
| Dimensions | Width: 116.5 mmHeight: 116.5 mmDepth: 64.5 mm |
| Installation depth | 46 mm |
| Mounting cut-out | Cut-out width: 92 mmCut-out height: 92 mm |
| IP protection category to IEC 60 529 | IP 54 with chopped-fibre filter |
| Protection category NEMA | Type 12 with chopped-fibre filter |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Note | With the fan-and-filter unit 3237.XXX, electrical connection is made via two single wires (length approx. 300 mm) on the unit, for all other fan-and-filter units, a screwless spring terminal is used |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level | With DC: 42 dB(A) |
| Packs of | 1 pc(s). |
| Net weight | 0.21 kg |
| Gross weight | 0.292 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177998278 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK Blue e+ fan-and-filter unit, 20 m³/h, 24 V (DC), WHD 116.5 x 116.5 x 64.5 mm, RAL 7035 |
