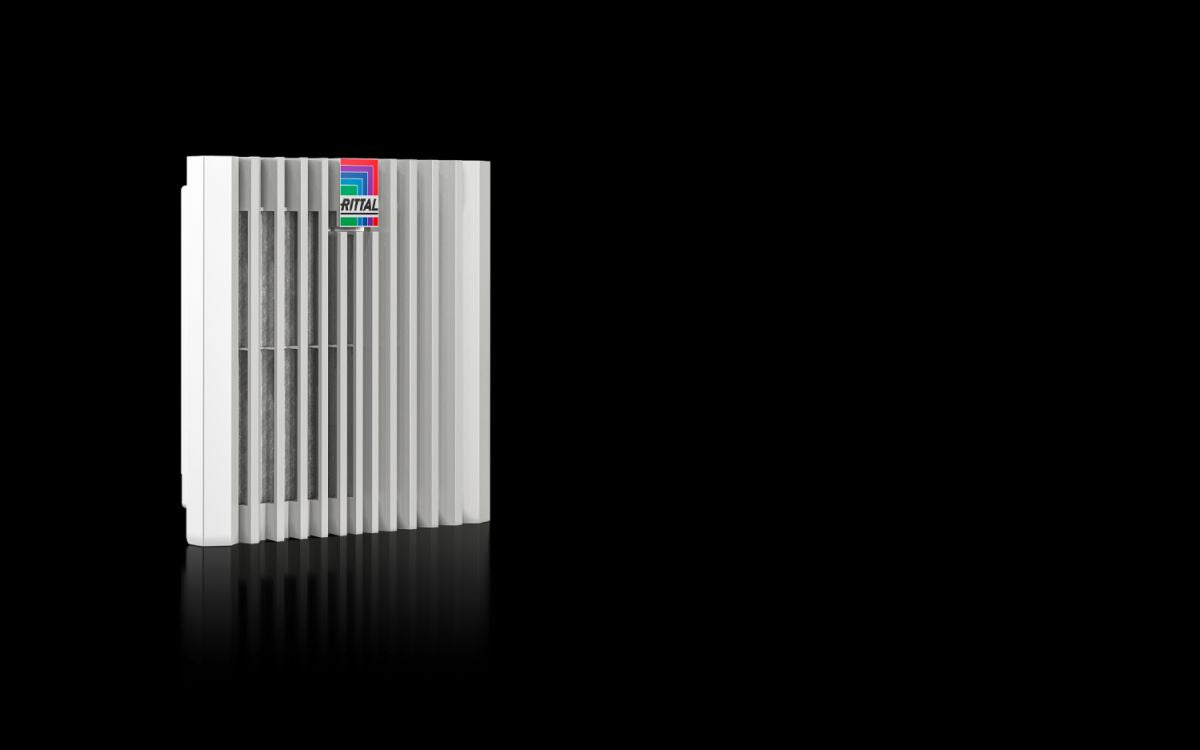

Rittal SK 3239.400, Blue e+ outlet filter EMC
Rittal SK 3239.400, Blue e+ outlet filter EMC
Regular price
€129,44
Regular price
Sale price
€129,44
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3239.400
The outlet filter is used in conjunction with the corresponding fan-and-filter unit to dissipate heat loss from enclosures, ventilate the enclosure and protect temperature-sensitive components. This is achieved through the direct infeed of ambient air, the temperature of which must be lower than the permissible internal temperature of the enclosure.
| Article number: | SK 3239.400 |
| Design | wall-mountedEMC |
| Benefits | Easy filter changes, thanks to a new opening mechanism on the louvred grille |
| Colour | RAL 7035 |
| Supply includes | Outlet filterEMC filter mat |
| Mounting cut-out | Cut-out width: 177 mmCut-out height: 177 mm |
| To fit Model No. | SK 3239.8xx |
| Dimensions | Width: 204 mmHeight: 204 mmDepth: 45.8 mm |
| Protection category NEMA | Type 12 with chopped-fibre filter |
| IP protection category to IEC 60 529 | IP 54 with chopped-fibre filter |
| Packs of | 1 pc(s). |
| Net weight | 0.3 kg |
| Gross weight | 0.473 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177998377 |
| ETIM 9 | EC002513 |
| ETIM 8 | EC002513 |
| ECLASS 8.0 | 27180706 |
| Product description | SK Blue e+ outlet filter, for fan-and-filter unit 3239.8xx, WxH 204 x 204 mm, RAL 7035 |
