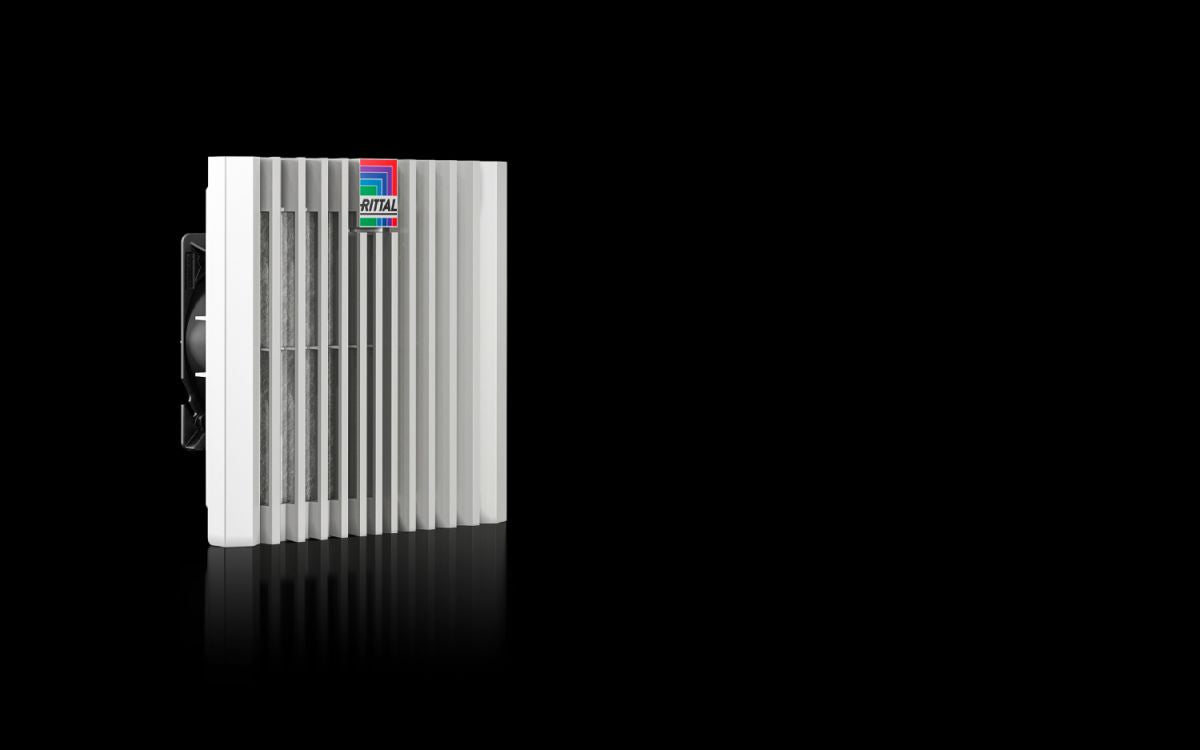

Rittal SK 3239.800, Blue e+ filter fan EMC
Rittal SK 3239.800, Blue e+ filter fan EMC
Regular price
€284,67
Regular price
Sale price
€284,67
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3239.800
Complete fan unit with EMC shielding for tool-free mounting on surfaces. Air throughput from 20 – 900 m³/h
| Article number: | SK 3239.800 |
| Design | wall-mountedEMC |
| Product description | EMC fan-and-filter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3. |
| Benefits | Easy filter changes, thanks to a new opening mechanism on the louvred grille |
| Material | Plastic |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including EMC filter mat |
| Fan | Axial, shaded pole motor |
| Air throughput, unimpeded airflow (with chopped-fibre filter) | At 50 Hz: 100 m³/hAt 60 Hz: 115 m³/h |
| Air throughput with matching outlet filter including chopped-fibre filter | At 50 Hz: 75 m³/hAt 60 Hz: 86 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Power consumption Pel | At 50 Hz: 14.7 WAt 60 Hz: 16.5 W |
| Rated current max. | At 50 Hz: 0.1 AAt 60 Hz: 0.12 A |
| Dimensions | Width: 204 mmHeight: 204 mmDepth: 105 mm |
| Installation depth | 84 mm |
| Mounting cut-out | Cut-out width: 177 mmCut-out height: 177 mm |
| IP protection category to IEC 60 529 | IP 54 with chopped-fibre filter |
| Protection category NEMA | Type 12 with chopped-fibre filter |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Note | To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level | At 50 Hz: 51 dB(A)At 60 Hz: 54 dB(A) |
| Packs of | 1 pc(s). |
| Net weight | 1.1 kg |
| Gross weight | 1.237 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177998162 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK Blue e+ fan-and-filter unit, EMC, 100/115 m³/h, 230 V, 1~, 50 Hz/60 Hz, WxHxD 204 x 204 x 105 mm, RAL 7035 |
