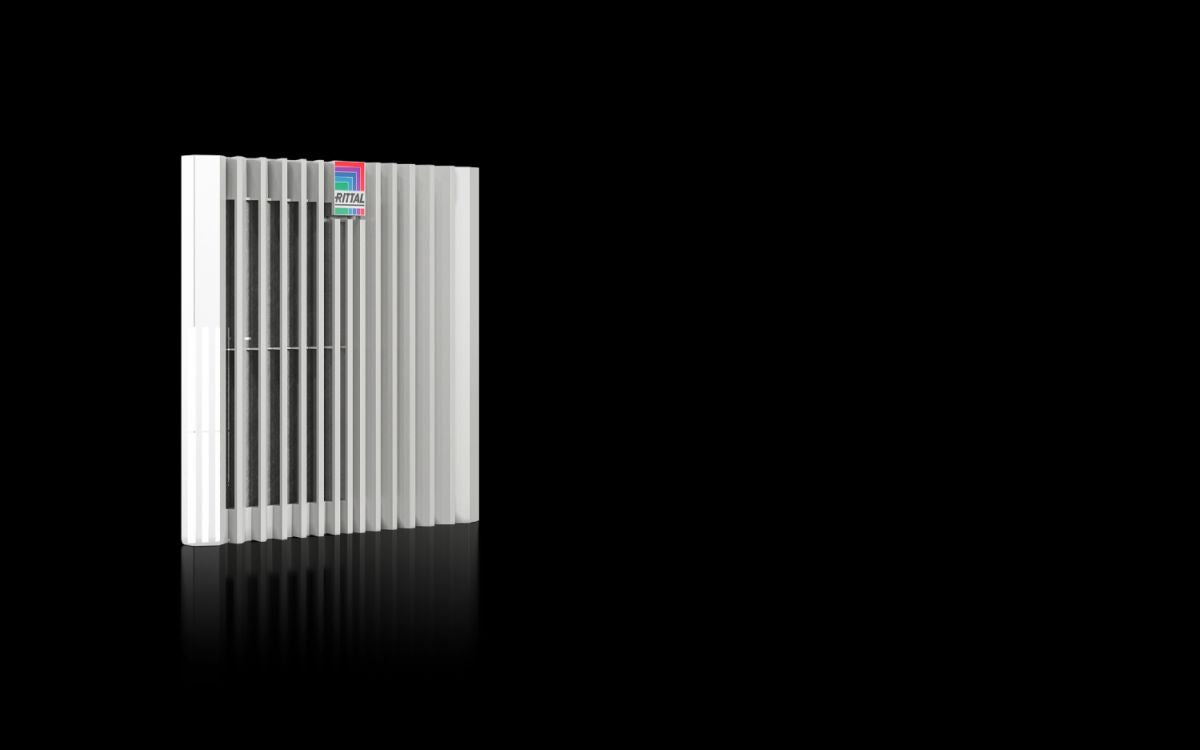

Rittal SK 3240.300, Blue e+ outlet filter
Rittal SK 3240.300, Blue e+ outlet filter
Regular price
€43,33
Regular price
Sale price
€43,33
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3240.300
The outlet filter is used in conjunction with the corresponding fan-and-filter unit to dissipate heat loss from enclosures, ventilate the enclosure and protect temperature-sensitive components. This is achieved through the direct infeed of ambient air, the temperature of which must be lower than the permissible internal temperature of the enclosure.
| Article number: | SK 3240.300 |
| Design | wall-mounted |
| Benefits | Easy filter changes, thanks to a new opening mechanism on the louvred grille |
| Material | Plastic |
| Colour | RAL 7035 |
| Supply includes | Outlet filterPleated filter |
| Mounting cut-out | Cut-out width: 224 mmCut-out height: 224 mm |
| To fit Model No. | SK 3240.7xx/3240.9xx/3241.7xx/3241.9xx |
| Dimensions | Width: 255 mmHeight: 255 mmDepth: 45.2 mm |
| Protection category NEMA | Type 12 with chopped-fibre filter/pleated filter |
| IP protection category to IEC 60 529 | IP 54 with chopped-fibre filter/pleated filter |
| Packs of | 1 pc(s). |
| Net weight | 0.4 kg |
| Gross weight | 0.67 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177998360 |
| ETIM 9 | EC002513 |
| ETIM 8 | EC002513 |
| ECLASS 8.0 | 27180706 |
| Product description | SK Blue e+ outlet filter, for fan-and-filter units 3240.7xx/3240.9xx/3241.7xx/3241.9xx, WxH 255 x 255 mm, RAL 7035 |
