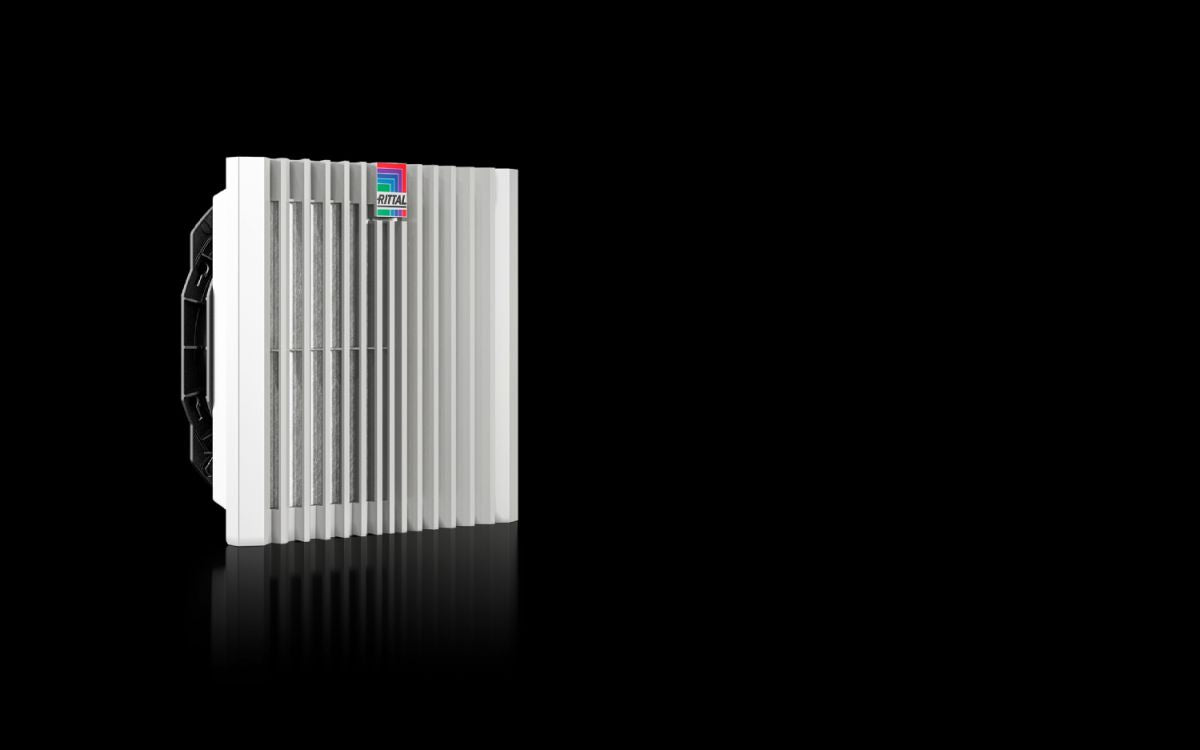

Rittal SK 3241.724, Blue e+ filter fan
Rittal SK 3241.724, Blue e+ filter fan
Regular price
€266,53
Regular price
Sale price
€266,53
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3241.724
Complete fan-and-filter units for tool-free installation in surfaces. Air throughput 20 – 1,160 m³/h, protection category IP 54 as standard.
| Article number: | SK 3241.724 |
| Design | wall-mounted |
| Product description | Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure. |
| Benefits | Maximum air throughput via pleated filter included in the delivered state |
| Material | Plastic |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including pleated filter |
| Fan | Diagonal, DC motor |
| Air throughput, unimpeded airflow (with chopped-fibre filter) | With DC: 225 m³/h |
| Air throughput, unimpeded airflow (with pleated filter) | With DC: 272 m³/h |
| Air throughput with matching outlet filter including chopped-fibre filter | With DC: 173 m³/h |
| Air throughput with matching outlet filter including pleated filter | With DC: 242 m³/h |
| Rated operating voltage | 24 V (DC) |
| Power consumption Pel | With DC: 19.1 W |
| Rated current max. | With DC: 0.8 A |
| Dimensions | Width: 255 mmHeight: 255 mmDepth: 129 mm |
| Installation depth | 108 mm |
| Mounting cut-out | Cut-out width: 224 mmCut-out height: 224 mm |
| IP protection category to IEC 60 529 | IP 54 with chopped-fibre filter/pleated filter |
| Protection category NEMA | Type 12 with chopped-fibre filter/pleated filter |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Note | With the filter fan 3237.XXX, electrical connection is made via two single wires (length approx. 300 mm) on the unit, for all other filter fans, a screwless spring terminal is used |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level | With DC: 53 dB(A) |
| Packs of | 1 pc(s). |
| Net weight | 1.97 kg |
| Gross weight | 2.17 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177998025 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK Blue e+ fan-and-filter unit, 272 m³/h, 24 V (DC), WHD 255 x 255 x 129 mm, RAL 7035 |
