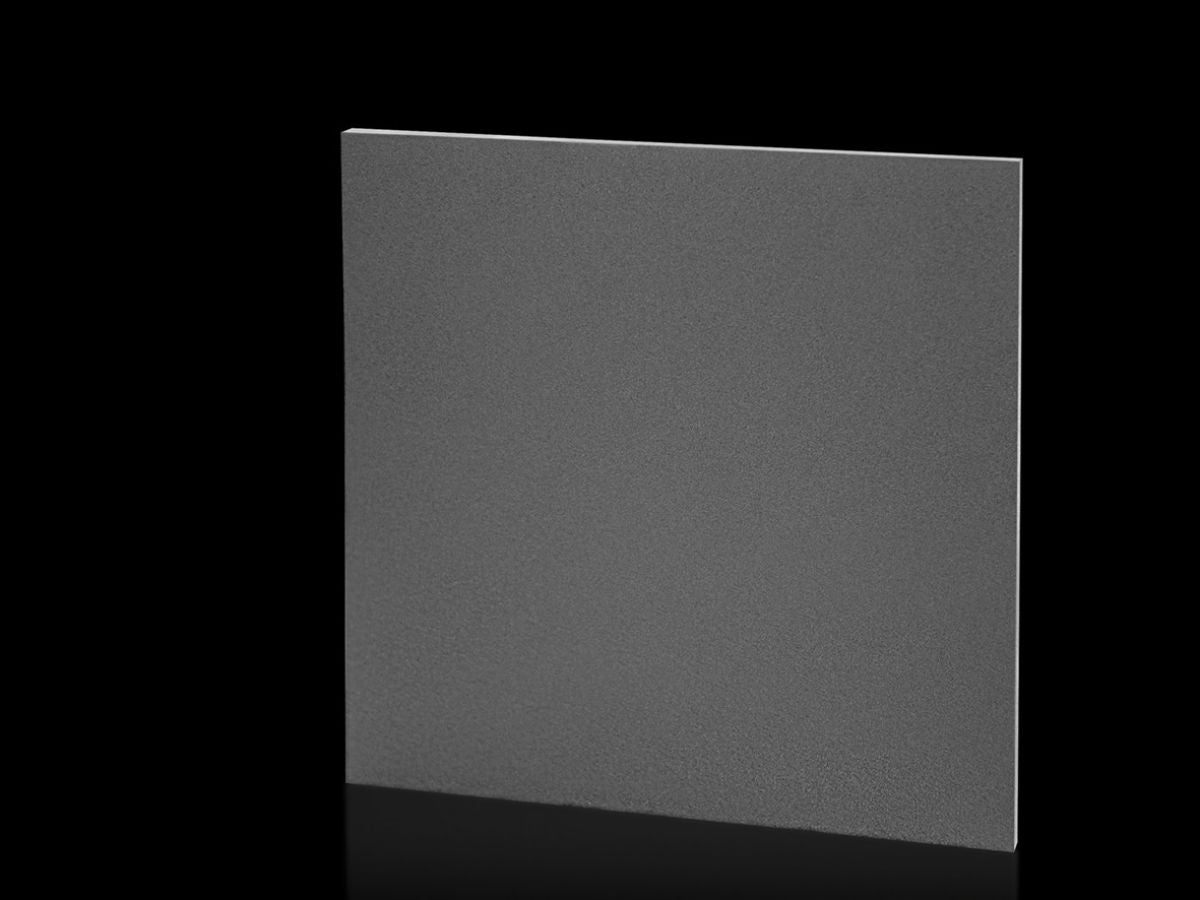

Rittal SK 3243.020, Blanking cover for filter fans / outlet filters
Rittal SK 3243.020, Blanking cover for filter fans / outlet filters
Regular price
€35,77
Regular price
Sale price
€35,77
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3243.020
If you need to close existing mounting cut-outs for fan-and-filter units/outlet filters in order to achieve a higher protection category, a blanking cover may be used in the fan-and-filter unit / outlet filter instead of the filter mat, without the need for welding or other metal machining.
| Article number: | SK 3243.020 |
| Product description | If existing mounting cut-outs for fan-and-filter units/outlet filters need to be closed to achieve a higher protection category, the filter mat of the fan-and-filter unit/outlet filter can simply be replaced with a blanking cover, welding or other mechanical modification of the enclosure is not necessary. |
| Material | PE, closed-cell |
| Colour | Anthracite |
| Note | No suitable for use in EMC filter fans. |
| To fit Model No. | 3243.... |
| Dimensions | Width: 282 mmHeight: 282 mmDepth: 15 mm |
| IP protection category to IEC 60 529 | IP 54 |
| Packs of | 2 pc(s). |
| Net weight | 0.07 kg |
| Gross weight | 0.076 kg |
| Customs tariff number | 39211900 |
| EAN | 4028177652040 |
| ETIM 9 | EC002617 |
| ETIM 8 | EC002617 |
| ECLASS 8.0 | 27189260 |
| Product description | SK blanking cover, for filter fans and outlet filters, for SK 3243…/3244…/3245…, plastic, Colour: Anthracite |
