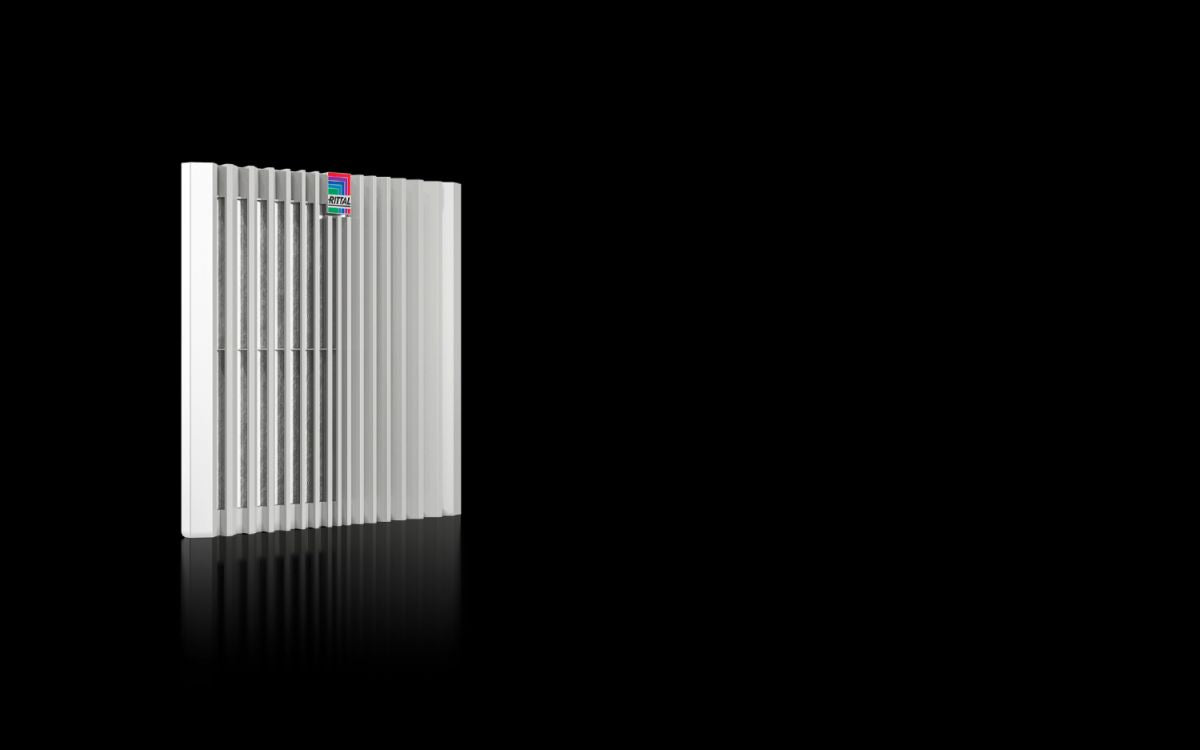

Rittal SK 3243.400, Blue e+ outlet filter EMC
Rittal SK 3243.400, Blue e+ outlet filter EMC
Regular price
€154,00
Regular price
Sale price
€154,00
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3243.400
The outlet filter is used in conjunction with the corresponding fan-and-filter unit to dissipate heat loss from enclosures, ventilate the enclosure and protect temperature-sensitive components. This is achieved through the direct infeed of ambient air, the temperature of which must be lower than the permissible internal temperature of the enclosure.
| Article number: | SK 3243.400 |
| Design | wall-mountedEMC |
| Benefits | Easy filter changes, thanks to a new opening mechanism on the louvred grille |
| Colour | RAL 7035 |
| Supply includes | Outlet filterEMC filter mat |
| Mounting cut-out | Cut-out width: 292 mmCut-out height: 292 mm |
| To fit Model No. | SK 3243.8xx/3244.8xx/3245.8xx |
| Dimensions | Width: 323 mmHeight: 323 mmDepth: 44.7 mm |
| Protection category NEMA | Type 12 with chopped-fibre filter |
| IP protection category to IEC 60 529 | IP 54 with chopped-fibre filter |
| Packs of | 1 pc(s). |
| Net weight | 0.94 kg |
| Gross weight | 0.941 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177998315 |
| ETIM 9 | EC002513 |
| ETIM 8 | EC002513 |
| ECLASS 8.0 | 27180706 |
| Product description | SK Blue e+ outlet filter, EMC, for fan-and-filter units 3243.8xx/3244.8xx/3245.8xx, WxH 323 x 323 mm, RAL 7035 |
