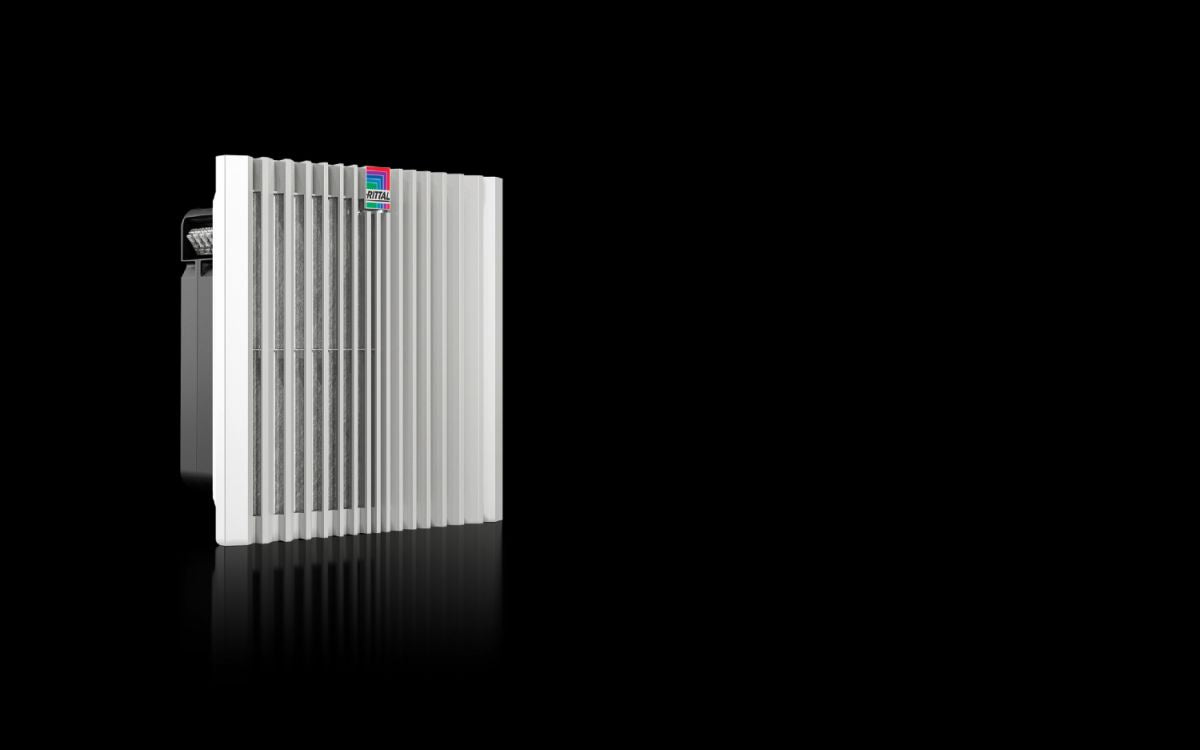

Rittal SK 3243.900, Blue e+ filter fan with EC technology
Rittal SK 3243.900, Blue e+ filter fan with EC technology
Regular price
€290,81
Regular price
Sale price
€290,81
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3243.900
The energy-efficient version with EC technology stands out for more than just its unique IoT capabilities. The Blue e+ fan-and-filter unit unlocks countless other advantages, from energy efficiency, to monitoring and sustainability, through to a higher air throughput (175 – 1,160 m³/h).
| Article number: | SK 3243.900 |
| Design | wall-mountedEC |
| Product description | Blue e+ fan-and-filter units achieve maximum air throughput because they use pleated filters as standard. The wide-range input (100-240 V) supports worldwide use. Activation and monitoring via a Modbus interface supports exclusive features (automatic filter cleaning, filter maintenance display, emergency cooling function). |
| Benefits | Maximum air throughput via pleated filter included in the delivered state |
| Material | Plastic |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including pleated filter |
| Fan | Diagonal, EC motor |
| Air throughput, unimpeded airflow (with chopped-fibre filter) | At 50 Hz: 540 m³/h |
| Air throughput, unimpeded airflow (with pleated filter) | At 50 Hz: 625 m³/hAt 60 Hz: 625 m³/h |
| Air throughput with matching outlet filter including chopped-fibre filter | At 50 Hz: 444 m³/h |
| Rated operating voltage | 100 V - 240 V, 1~, 50 Hz/60 Hz |
| Power consumption Pel | At 50 Hz: 55.1 W |
| Rated current max. | At 50 Hz: 0.88 A |
| Dimensions | Width: 323 mmHeight: 323 mmDepth: 156.5 mm |
| Installation depth | 136.5 mm |
| Mounting cut-out | Cut-out width: 292 mmCut-out height: 292 mm |
| IP protection category to IEC 60 529 | IP 54 with chopped-fibre filter/pleated filter |
| Protection category NEMA | Type 12 with chopped-fibre filter/pleated filter |
| Pre-fuse | Miniature circuit-breaker/fuse: 6 A |
| Operating temperature range | -25 °C...55 °C |
| Storage temperature range | -25 °C...70 °C |
| Noise level | At 50 Hz: 65 dB(A) |
| Interfaces | 0 - 10 V/PWM input |
| Packs of | 1 pc(s). |
| Net weight | 3.65 kg |
| Gross weight | 3.763 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177997929 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK Blue e+ fan-and-filter unit, EC technology, 625 m³/h, 100 V – 240 V, 1~, 50 Hz/60 Hz, WxHxD 323 x 323 x 156.5 mm, RAL 7035 |
