Rittal

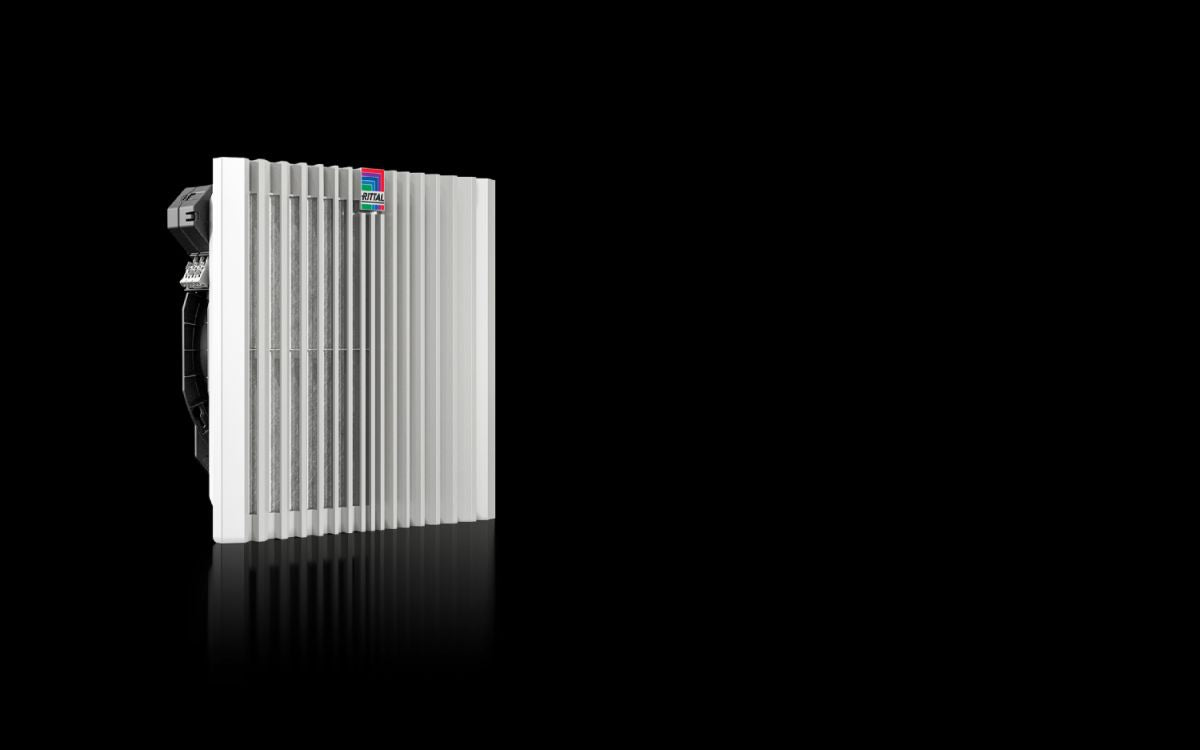

Rittal SK 3245.800, Blue e+ filter fan EMC
Rittal SK 3245.800, Blue e+ filter fan EMC
Regular price
€629,21
Regular price
Sale price
€629,21
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3245.800
Complete fan unit with EMC shielding for tool-free mounting on surfaces. Air throughput from 20 – 900 m³/h
| Article number: | SK 3245.800 |
| Design | wall-mountedEMC |
| Product description | EMC fan-and-filter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3. |
| Benefits | Easy filter changes, thanks to a new opening mechanism on the louvred grille |
| Material | Plastic |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including EMC filter mat |
| Fan | Diagonal, EC motor |
| Air throughput, unimpeded airflow (with chopped-fibre filter) | At 50 Hz: 931 m³/h |
| Air throughput with matching outlet filter including chopped-fibre filter | At 50 Hz: 728 m³/h |
| Rated operating voltage | 200 V - 240 V, 1~, 50 Hz/60 Hz |
| Power consumption Pel | At 50 Hz: 173.5 W |
| Rated current max. | At 50 Hz: 1.38 A |
| Dimensions | Width: 323 mmHeight: 323 mmDepth: 161 mm |
| Installation depth | 141 mm |
| Mounting cut-out | Cut-out width: 292 mmCut-out height: 292 mm |
| IP protection category to IEC 60 529 | IP51 with chopped-fibre filter |
| Protection category NEMA | Type 12 with chopped-fibre filter |
| Note | To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays |
| Operating temperature range | -25 °C...55 °C |
| Storage temperature range | -25 °C...70 °C |
| Noise level | At 50 Hz: 72 dB(A) |
| Interfaces | 0 - 10 V/PWM input |
| Packs of | 1 pc(s). |
| Net weight | 4.01 kg |
| Gross weight | 4.218 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177997837 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK Blue e+ fan-and-filter unit, EMC, 931 m³/h, 200 V - 240 V, 1~, 50 Hz/60 Hz, WHD 323 x 323 x 161 mm, RAL 7035 |
