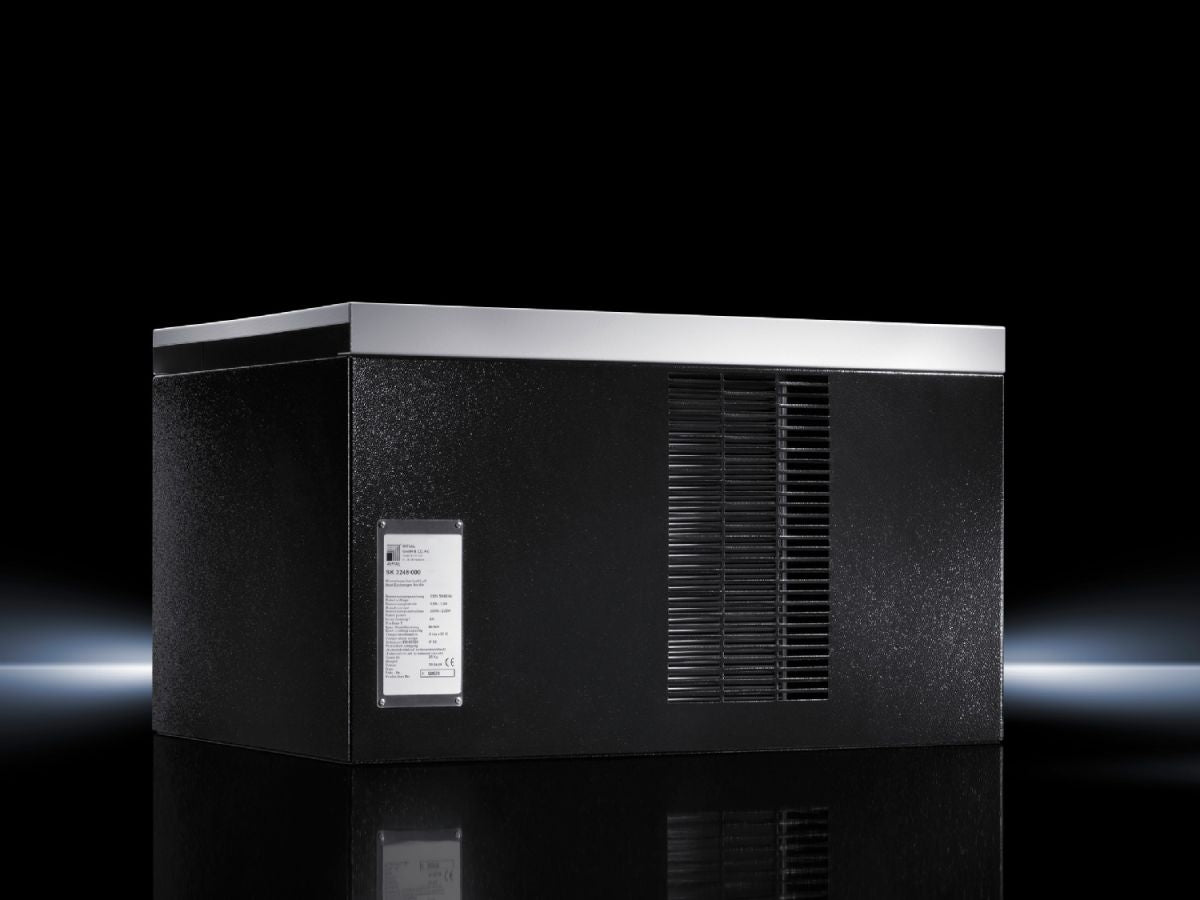

Rittal SK 3248.000, Air-air heat exchanger roof-mounted
Rittal SK 3248.000, Air-air heat exchanger roof-mounted
Regular price
€1.437,82
Regular price
Sale price
€1.437,82
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3248.000
Complete roof-mounted heat exchanger unit ready for connection, without control
| Article number: | SK 3248.000 |
| Design | roof-mounted |
| Product description | Air/air heat exchangers are particularly well-suited to aggressive ambient conditions, because the internal and external air circuits are completely separate from one another. |
| Colour | Cover: RAL 7035Enclosure: RAL 7016 |
| Supply includes | Complete unit ready for connectionThe fans are connected via two 3-wire connection cables, with wire end ferrulesDrilling templateAssembly parts |
| Specific thermal output | 66 W/K |
| Air throughput (unimpeded air flow) | External circuit with 50 Hz: 965 m³/hInternal circuit at 50 Hz: 965 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated current max. | per fan at 50 Hz: 0.32 Aper fan at 60 Hz: 0.4 A |
| Type of electrical connection | Connection cable |
| Dimensions | Width: 595 mmHeight: 362 mmDepth: 440 mm |
| Note | For precise temperature control inside the enclosure, we recommend the enclosure internal thermostat, the digital enclosure internal temperature display and thermostat or the speed control. |
| No. of fans | 2 |
| Pre-fuse | Miniature circuit-breaker/fuse: 4 A |
| Operating temperature range | -5 °C...55 °C |
| IP protection category to IEC 60 529 | Internal circuit IP 54 |
| Packs of | 1 pc(s). |
| Net weight | 25 kg |
| Gross weight | 27 kg |
| Customs tariff number | 84158300 |
| EAN | 4028177039247 |
| ETIM 9 | EC002514 |
| ETIM 8 | EC002514 |
| ECLASS 8.0 | 27180711 |
| Product description | SK Direct Air Cooling system (DAC), roof mounting, 48 V DC, WHD: 875 x 125 x 313 mm |
