Rittal

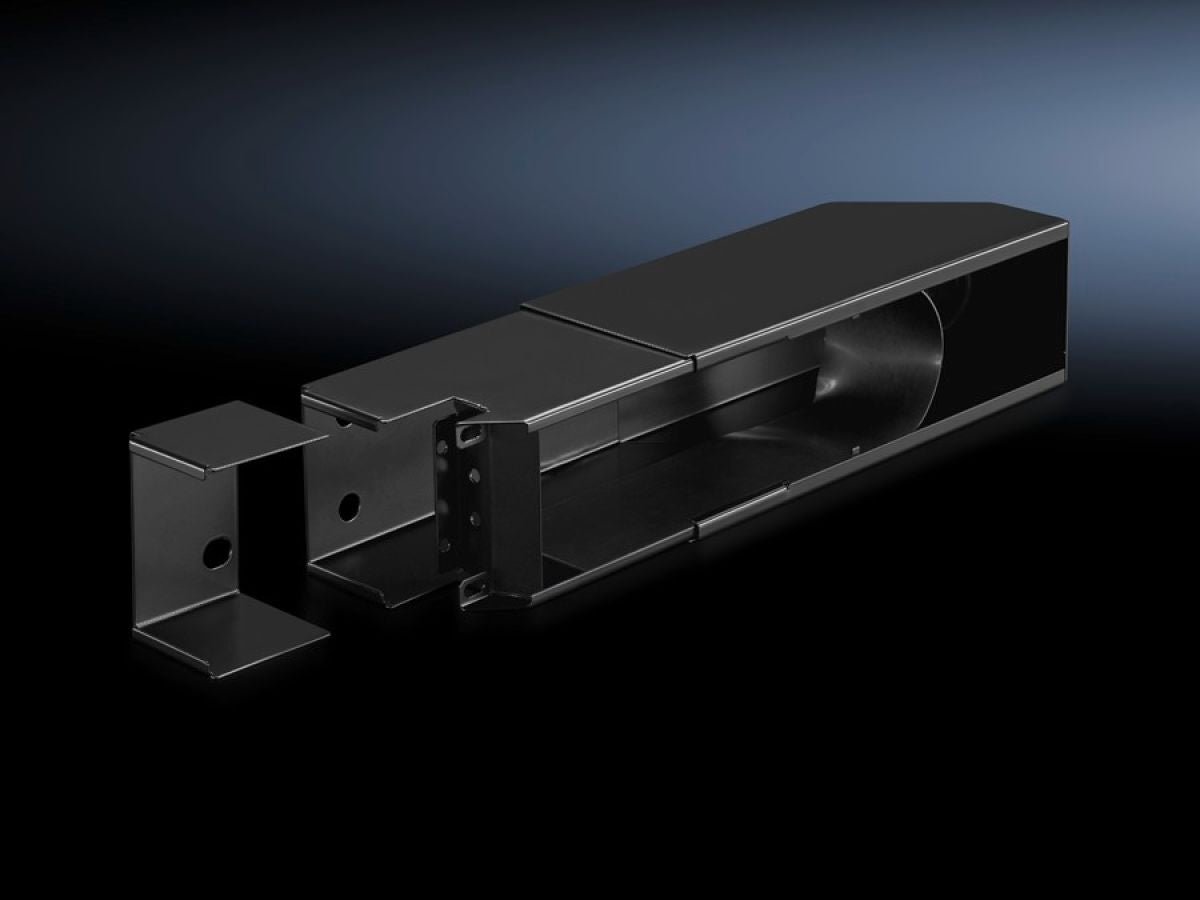

Rittal SK 3301.392, Air duct for side air routing
Rittal SK 3301.392, Air duct for side air routing
Regular price
€205,84
Regular price
Sale price
€205,84
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3301.392
For cold air supply to hubs with side air intake.
| Article number: | SK 3301.392 |
| Product description | Air duct, passive, for cold air intake to 482.6 mm (19") IT equipment with side air inlet. Suitable for use in conjunction with all-round partitioning around the mounting level via air baffle plates and targeted management of the airflow through the air duct. |
| Benefits | For superior air infeed to the rear 482.6 mm (19") equipment with side air routing |
| Material | Sheet steel |
| Surface finish | Spray-finished |
| Colour | RAL 9005 |
| Supply includes | Air ductAdaptor for attaching to 482.6 mm (19") mounting anglesMagnetic strip to cover the remaining vertical openings in the air baffle plate |
| Installation options | for TS IT 482.6 mm (19") mounting angles |
| Assembly instruction | Only suitable for fitting on the front 482.6 mm (19") installation level |
| Dimensions | Height: 2 U |
| To fit | Enclosure type: TS ITVX ITWidth: 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.55 kg |
| Gross weight | 1.8 kg |
| PCF per pack (cradle-to-gate) | 6.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177716612 |
| ETIM 9 | EC011217 |
| ETIM 8 | EC011217 |
| ECLASS 8.0 | 22410601 |
| Product description | SK Air duct, for side air flow, 2 U, depth-variable 275 - 418 mm, sheet steel, RAL 9005 |
