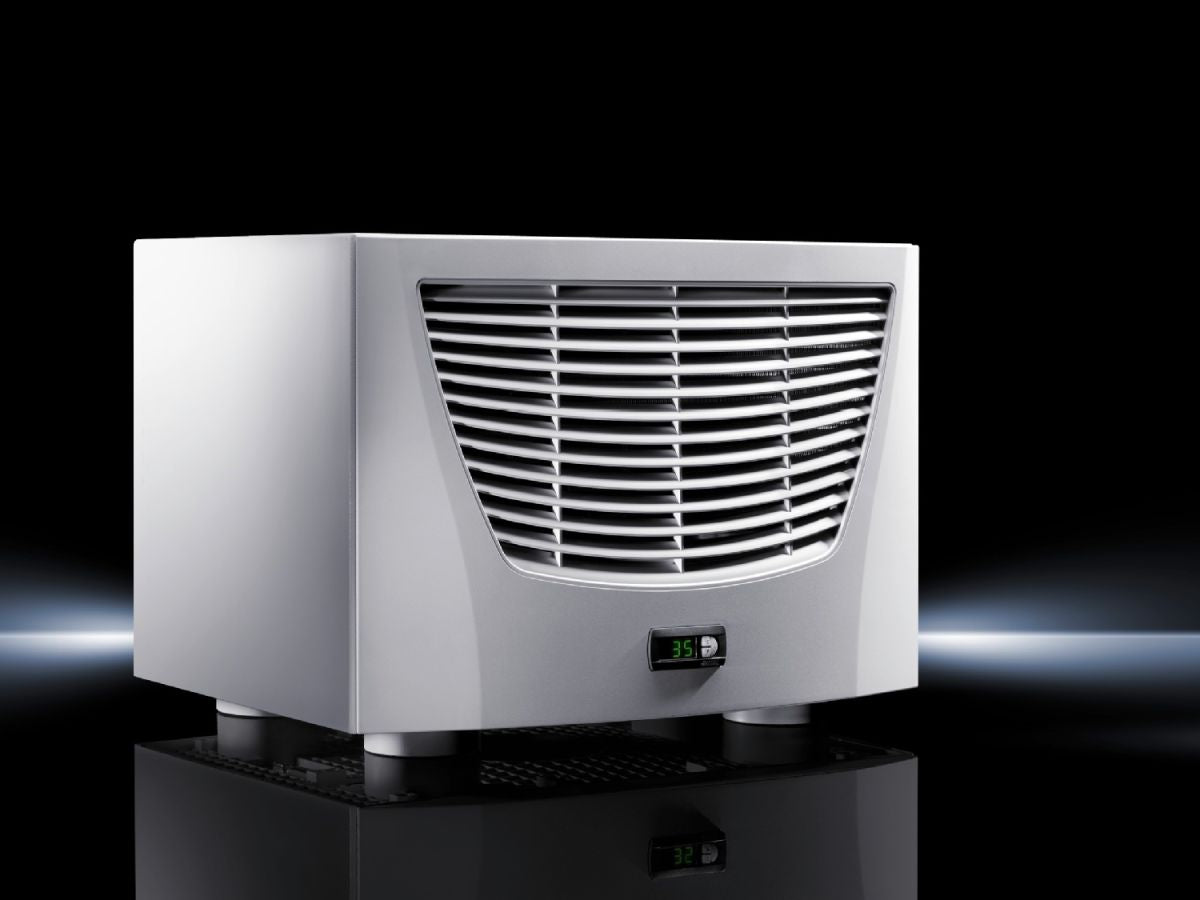

Rittal SK 3301.800, Roof-mounted cooling units for cooling IT equipment
Rittal SK 3301.800, Roof-mounted cooling units for cooling IT equipment
Regular price
€5.745,92
Regular price
Sale price
€5.745,92
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3301.800
Active climate control of individual enclosures for heat losses of up to 3 kW. Target temperature-controlled control of the server inlet temperature.
| Article number: | SK 3301.800 |
| Benefits | Even air distribution in front of the 482.6 mm (19") level |
| Applications | Cooling of IT equipment in IT enclosures sited as stand-alone units in secondary rooms |
| Function principle | The device supports front-to-back air routing typical of IT applications, and regulates the server inlet temperature to the set value |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Condenser with hydrophobic RiNano coatingIntegral electric condensate evaporationFully wired ready for connectionDrilling templateAir baffle plateAssembly parts |
| Total cooling output to DIN EN 14511 | Total cooling output L35 L45: 3,200 W |
| Air throughput (unimpeded air flow) | External circuit: 2,000 m³/hInternal circuit: 1,450 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 1.6 |
| Rated operating voltage | 230 V, 1~, 50 Hz |
| Rated current max. | At 50 Hz: 10.4 A |
| Type of electrical connection | Plug-in terminal strip |
| Dimensions | Width: 597 mmHeight: 417 mmDepth: 895 mm |
| Start-up current max. | At 50 Hz: 36 A |
| Duty cycle | 100 % |
| Temperature control | Control of the server inlet temperature |
| Monitoring | Monitoring of incoming air temperature |
| Permissible operating pressure (p. max.) | 25 bar |
| Pre-fuse | Miniature circuit-breaker/fuse: 16 A |
| Setting range | 20 °C...25 °C |
| Protection category to IEC 60 529 | External circuit IP 20 |
| Refrigerant/cooling medium | Refrigerant: R134aQuantity: 1.2 kgGlobal Warming Potential (GWP): 1,430 |
| Packs of | 1 pc(s). |
| Net weight | 89 kg |
| Gross weight | 98 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177558298 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| ECLASS 8.0 | 27180704 |
| Product description | SK Roof-mounted cooling unit, For cooling IT equipment, Control of the server air infeed temperature, WHD: 597x417x895 mm, 230 V, 1~, 50 Hz |
