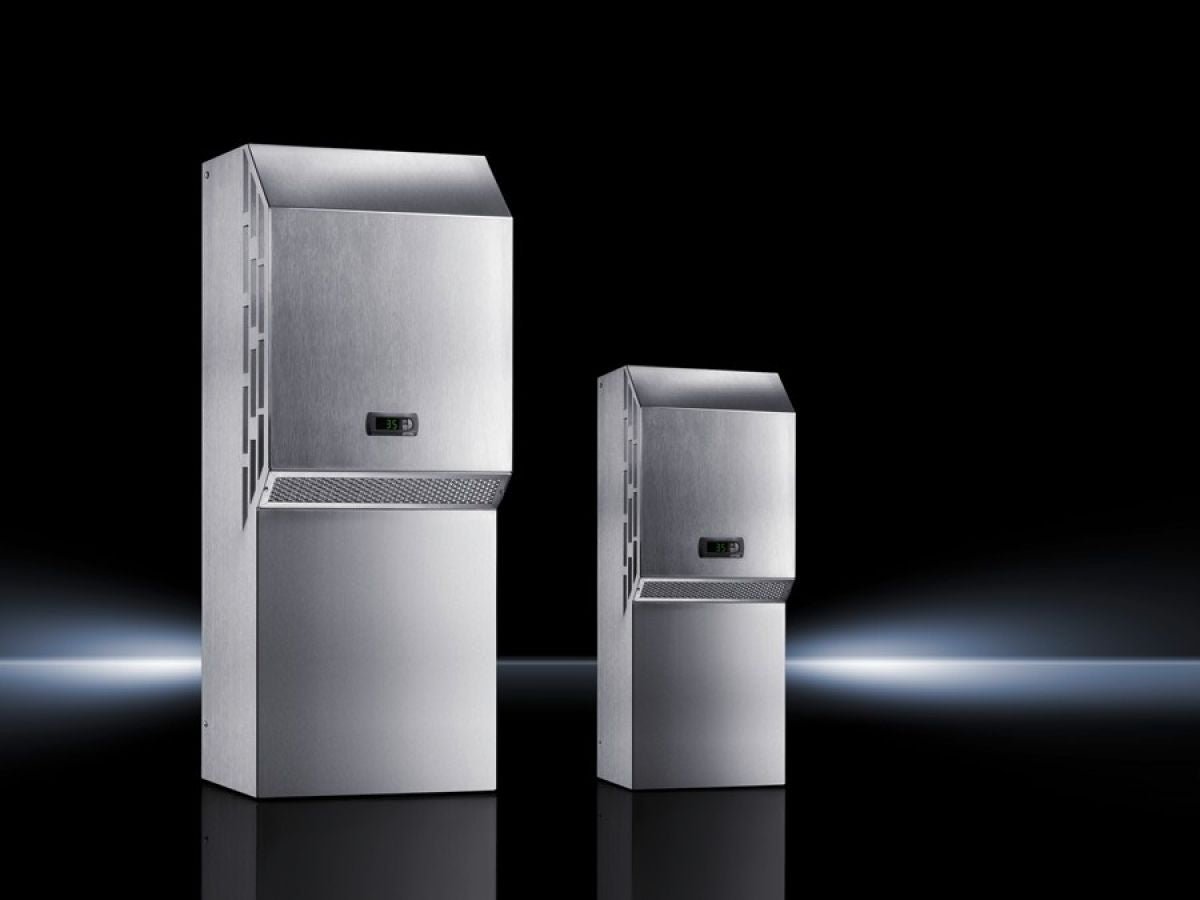

Rittal SK 3303.514, TopTherm wall-mounted cooling unit Blue e, NEMA 4X 0.5 - 2.5 kW
Rittal SK 3303.514, TopTherm wall-mounted cooling unit Blue e, NEMA 4X 0.5 - 2.5 kW
Regular price
€3.337,50
Regular price
Sale price
€3.337,50
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3303.514
Energy-efficient Blue e wall-mounted cooling units in power categories 500 W to 2,500 W with e-Comfort controller integrated as standard and electrical condensate evaporation. Protection category NEMA 4X.
| Article number: | SK 3303.514 |
| Design | wall-mounted |
| Product description | Energy-efficient Blue e wall-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard. Protection category NEMA 4X. |
| Benefits | May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller |
| Material | Stainless steel 1.4404 (AISI 316L) |
| Colour | RAL 7001 |
| Supply includes | Condenser with hydrophobic RiNano coatingFully wired ready for connection (plug-in terminal strip)Drilling templateAssembly parts |
| Total cooling output to DIN EN 14511 | Cooling output L35 L35/60 Hz: 0.6 kWCooling output L35 L50/60 Hz: 0.35 kW |
| Rated operating voltage | 115 V, 1~, 60 Hz |
| Rated current max. | At 60 Hz: 5.7 A |
| Start-up current max. | At 60 Hz: 11.5 A |
| Air throughput (unimpeded air flow) | External circuit: 345 m³/hInternal circuit: 280 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.36 |
| Design | wall-mounted |
| Dimensions | Width: 285 mmHeight: 620 mmDepth: 298 mm |
| Protection category to IEC 60 529 | External circuit IP 34 |
| Protection category NEMA | NEMA 4X |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 0.19 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 0.12 t |
| Temperature control | e-Comfort controller (factory setting +35 °C) |
| Operating temperature range | 10 °C...55 °C |
| Operating temperature max @60 Hz | 54 °C |
| Storage temperature range | -40 °C...70 °C |
| Setting range | 20 °C...54 °C |
| Power consumption Pel | Power consumption L35 L35/60 Hz: 0.44 kWPower consumption L35 L50/60 Hz: 0.5 kW |
| Permissible operating pressure (p. max.) | 28 bar |
| Pre-fuse | Miniature circuit-breaker/fuse: 10 A |
| Note on Model No. | without integral condensate evaporation |
| Packs of | 1 pc(s). |
| Net weight | 26.75 kg |
| Gross weight | 38.5 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177384279 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| ECLASS 8.0 | 27180704 |
| Product description | SK cooling unit Blue e, wall-mounted, NEMA 4X, 0.66 kW, 115 V, 1~, 60 Hz, Stainless steel, WHD: 285 x 620 x 298 mm |
