Rittal

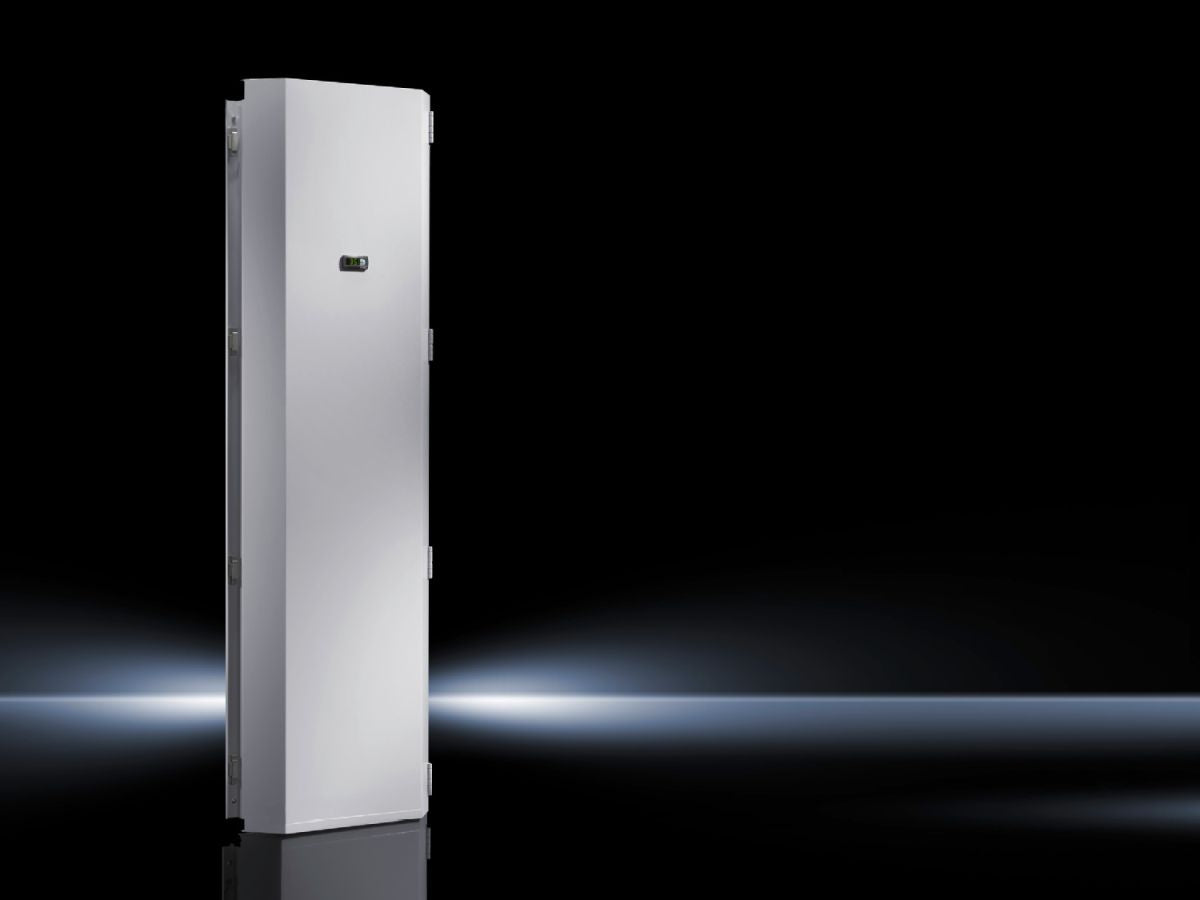

Rittal SK 3310.740, Modular climate control concept - Cooling module "Blue e" Total cooling output 1.50 - 2.50 kW
Rittal SK 3310.740, Modular climate control concept - Cooling module "Blue e" Total cooling output 1.50 - 2.50 kW
Regular price
€2.566,38
Regular price
Sale price
€2.566,38
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3310.740
Cooling module for climate control doors. Cooling output from 1500 to 2500 W.
| Article number: | SK 3310.740 |
| Product description | All cooling modules may be individually combined with any climate control door. The cooling modules are equipped with energy-efficient Blue e technology, with integral e-Comfort controller and electric condensate evaporation as standard. |
| Benefits | May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Condenser with hydrophobic RiNano coatingCooling module prepared for installation in climate control doorIntegral electric condensate evaporationFully wired ready for connection (plug-in terminal strip) |
| Rated current max. | At 50 Hz: 3.5 AAt 60 Hz: 3.7 A |
| Start-up current max. | At 50 Hz: 13 AAt 60 Hz: 14 A |
| Power consumption Pel 50/60 Hz L35 L35 | 1.41 kW/1.82 kW |
| Power consumption Pel 50/60 Hz L35 L50 | 1.54 kW/2.08 kW |
| Temperature control | e-Comfort controller (factory setting +35 °C) |
| At 60 Hz | 3.7 A |
| Note | A base/plinth with a height of 100 or 200 mm is required for efficient operation |
| Air throughput (unimpeded air flow) | External circuit: 1,100 m³/hInternal circuit: 1,100 m³/h |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 1 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 0.63 t |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 1.91Refrigeration factor L35 L35 (EER) 60 Hz: 1.51 |
| Operating temperature range | 10 °C...54 °C |
| Permissible operating pressure (p. max.) | 30 bar |
| Setting range | 20 °C...53 °C |
| Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 2.7 kWCooling output L35 L35/60 Hz: 2.75 kWCooling output L35 L50/50 Hz: 1.76 kWCooling output L35 L50/60 Hz: 1.9 kW |
| Rated operating voltage | 400 V, 3~, 50 Hz |
| Packs of | 1 pc(s). |
| Net weight | 73 kg |
| Gross weight | 77 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177559820 |
| ETIM 9 | EC002510 |
| ETIM 8 | EC002510 |
| ECLASS 8.0 | 27180702 |
| Product description | SK modular climate control concept, Blue e cooling module, 2.7/2.75 kW, 400-460 V, 3~, 50/60 Hz |
