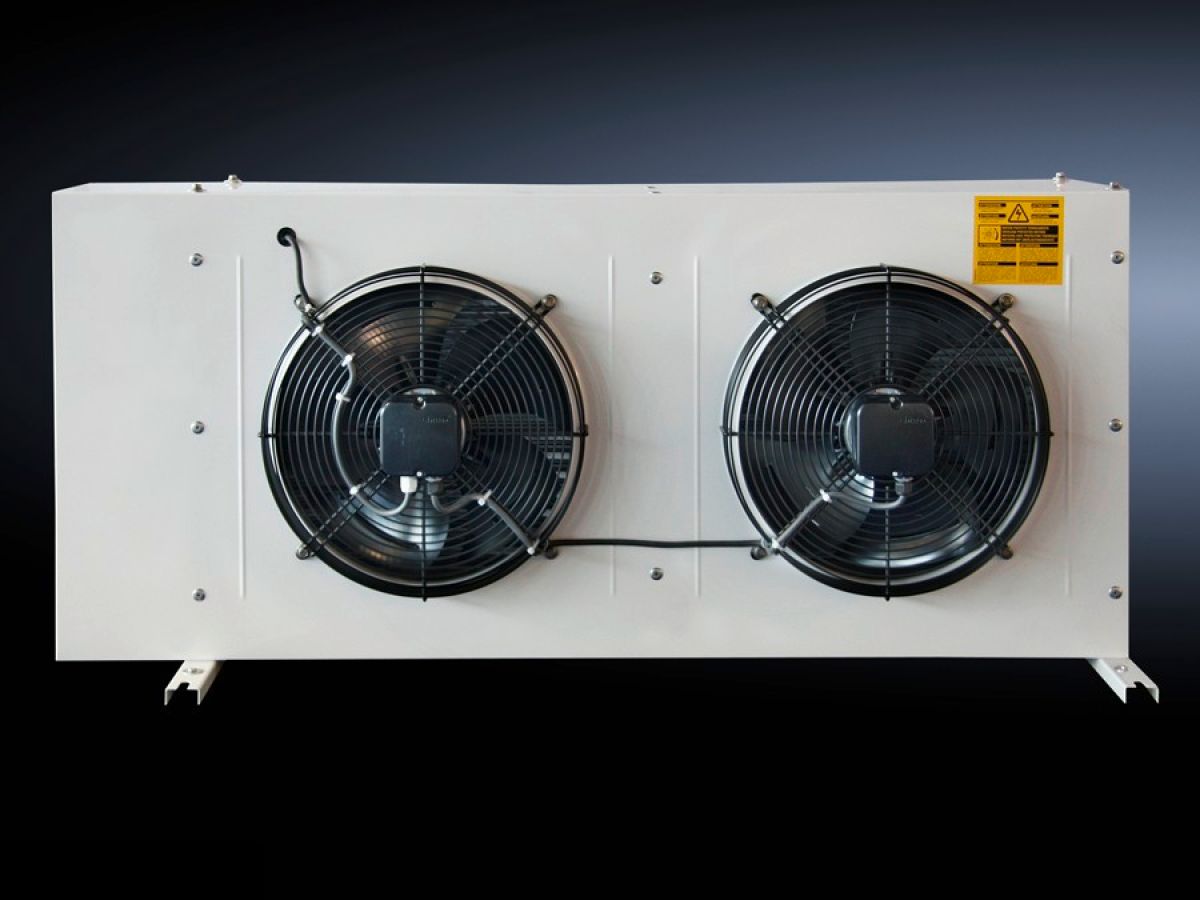

Rittal SK 3311.363, Condenser unit for LCP DX
Rittal SK 3311.363, Condenser unit for LCP DX
Regular price
€3.274,58
Regular price
Sale price
€3.274,58
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3311.363
The condenser units are necessary for operating refrigerant-based LCPs. Depending on the version, the units have an external condenser and fan, or additionally a free cooler. The variant with free cooler is needed for the combination variant LCP DX/FC. The units are suitable for roof and wall mounting.
| Article number: | SK 3311.363 |
| Design | Condenser |
| Product description | The condenser unit is needed to operate the refrigerant-based LCPs, and comprises the external condenser and two fans whose speed is controlled as a function of the pressure in the cooling circuit. |
| Material | Sheet steel, spray-finished |
| Surface finish | Powder-coated, zinc-plated |
| Colour | RAL 9003 |
| Supply includes | Base unitAssembly parts |
| Max. cooling output | 20 kW |
| Temperature control | Speed-controlled fan |
| Refrigerant/cooling medium | Refrigerant: R410ACooling medium: - |
| Dimensions | Width: 2,282 mmHeight: 480 mmDepth: 508 mm |
| Total cooling output/Number of fan modules | 3 |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Packs of | 1 pc(s). |
| Net weight | 65 kg |
| Gross weight | 113 kg |
| Customs tariff number | 84189910 |
| EAN | 4028177716643 |
| ETIM 9 | EC002515 |
| ETIM 8 | EC002515 |
| ECLASS 8.0 | 27180712 |
| Product description | Air-cooled condenser for LCP Rack/Inline DX, 20 kW, for roof/wall mounting, power supply: 230 V, 1~, 50/60 Hz, WHD: 2282x510x480 mm, RAL 9003 |
