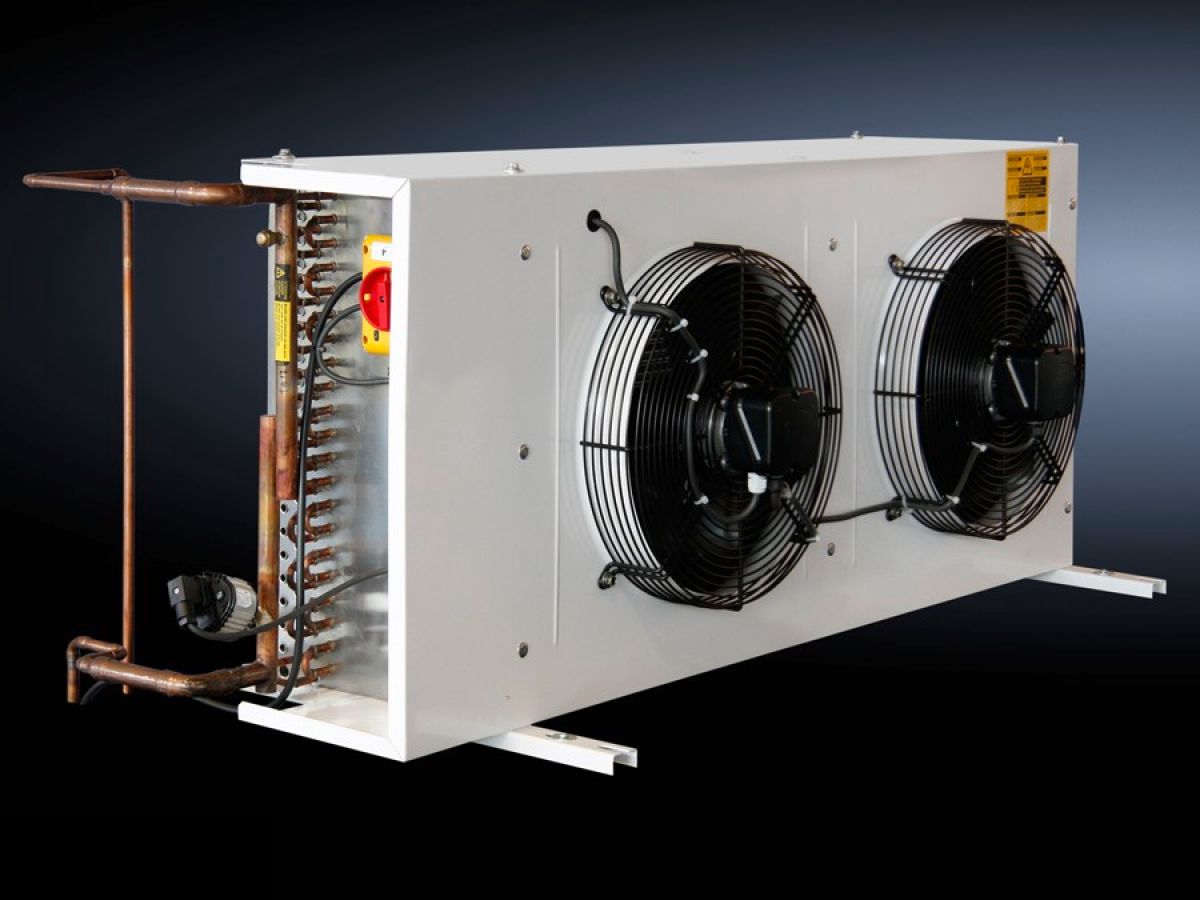

Rittal SK 3311.370, Condenser unit for LCP DX
Rittal SK 3311.370, Condenser unit for LCP DX
Regular price
€4.286,68
Regular price
Sale price
€4.286,68
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.01.2026
Couldn't load pickup availability
SKU: SKU:SK 3311.370
The condenser units are necessary for operating refrigerant-based LCPs. Depending on the version, the units have an external condenser and fan, or additionally a free cooler. The variant with free cooler is needed for the combination variant LCP DX/FC. The units are suitable for roof and wall mounting.
| Article number: | SK 3311.370 |
| Design | Condenser |
| Product description | The condenser unit is needed to operate the refrigerant-based LCPs, and comprises the external condenser and two fans whose speed is controlled as a function of the pressure in the cooling circuit. |
| Material | Sheet steel, spray-finished |
| Surface finish | Powder-coated, zinc-plated |
| Colour | RAL 9003 |
| Supply includes | Base unitAssembly parts |
| Max. cooling output | 35 kW |
| Temperature control | Speed-controlled fan |
| Refrigerant/cooling medium | Refrigerant: R410ACooling medium: - |
| Dimensions | Width: 2,293 mmHeight: 1,270 mmDepth: 1,110 mm |
| Total cooling output/Number of fan modules | 2 |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Packs of | 1 pc(s). |
| Net weight | 121 kg |
| Gross weight | 166 kg |
| Customs tariff number | 84189910 |
| EAN | 4028177691445 |
| ETIM 9 | EC002515 |
| ETIM 8 | EC002515 |
| ECLASS 8.0 | 27180712 |
| Product description | Air-cooled condenser for LCP Inline DX 35 kW, for roof and wall mounting, power supply: 230 V, 1~, 50/60 Hz, WHD: 2219 x 1110 x 850 mm, colour: RAL 9003 |
