Rittal

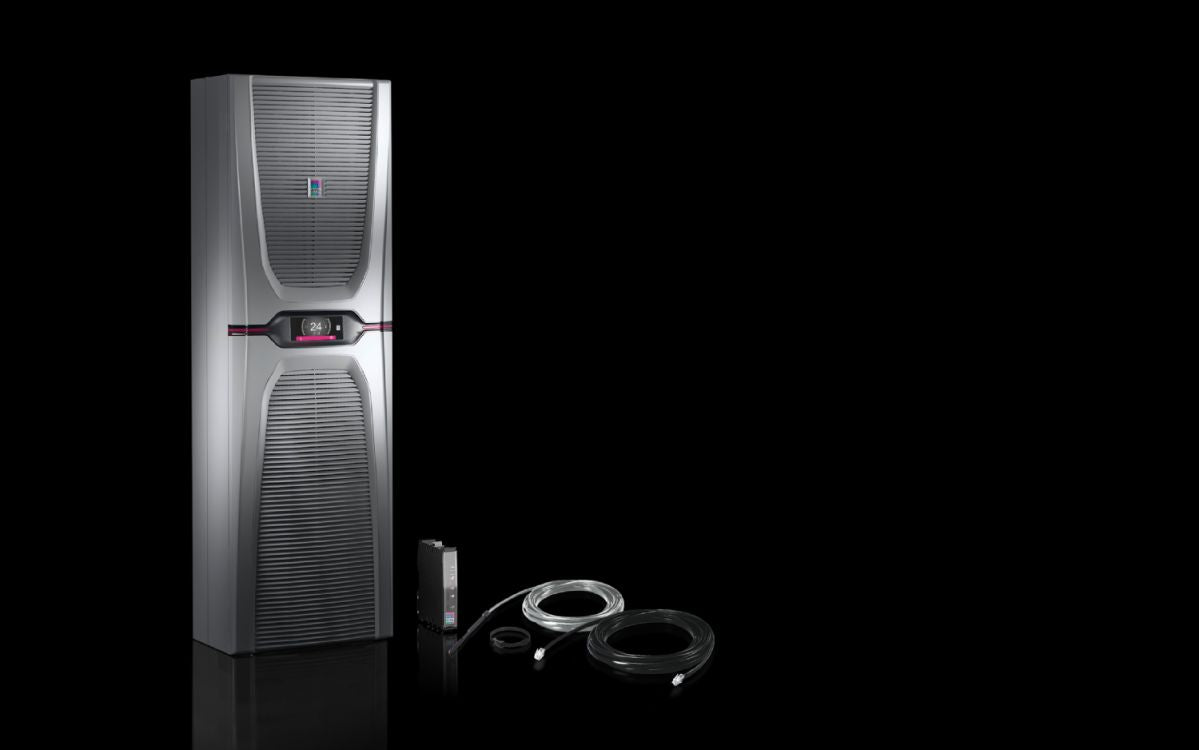

Rittal SK 3312.810, Wall-mounted cooling unit Blue e+ IT
Rittal SK 3312.810, Wall-mounted cooling unit Blue e+ IT
Regular price
€3.911,83
Regular price
Sale price
€3.911,83
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3312.810
The use of Blue e+ technology makes this bundle ideally suited to the requirements of energy-efficient cooling of IT racks. In combination with the IoT interfaces, it supports communication with various systems as well as monitoring and energy management.
| Article number: | SK 3312.810 |
| Design | wall-mounted |
| Product description | The use of Blue e+ technology makes this bundle ideally suited to the requirements of energy-efficient cooling of IT racks. In combination with the IoT interfaces, it supports communication with various systems as well as monitoring and energy management. |
| Benefits | Energy savings thanks to speed-regulated components and heat pipe technology |
| Technical specifications | Further information, instructions and technical data on the individual components listed in this bundle can be found on the relevant item pages |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Bundle comprised of the following individual components:Wall-mounted cooling unit (3187.930)IoT interface (3124.300)Temperature sensor (3124.400)Connection cable (7030.091)Nylon loop cable holder (7111.350) |
| Useful cooling output L22 L30 | 3,000 W |
| Rated operating voltage | 110 V - 240 V, 1~, 50 Hz/60 Hz |
| Rated power input | 1.05 kW |
| Type of electrical connection | Plug-in terminal strip |
| Dimensions | Width: 450 mmHeight: 1,600 mmDepth: 294 mm |
| Duty cycle | 100 % |
| Temperature control | e+ controller |
| Protocols | OPC-UA |
| Operating temperature range | -20 °C...60 °C |
| Permissible operating pressure (p. max.) | 25 bar |
| Storage temperature range | -40 °C...70 °C |
| Setting range | 20 °C...50 °C |
| Protection category to IEC 60 529 | External circuit IP 24 |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 1.07 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 0.68 t |
| Packs of | 1 pc(s). |
| Net weight | 69 kg |
| Gross weight | 74.5 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177944558 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| ECLASS 8.0 | 27180704 |
| Product description | SK IT wall cooling unit Blue e+, 2kW, With IoT Interface, WHD: 450x1600x294 mm |
