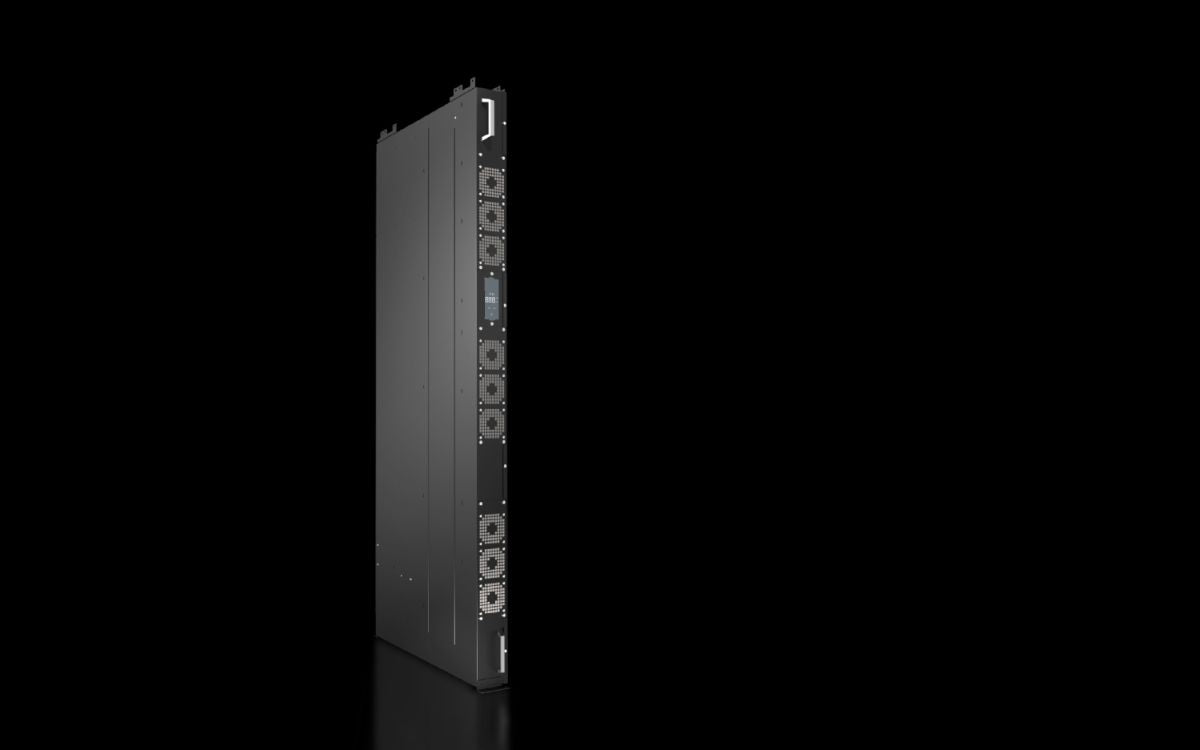

Rittal SK 3313.610, Liquid Cooling Unit LCU CW
Rittal SK 3313.610, Liquid Cooling Unit LCU CW
Regular price
€5.743,24
Regular price
Sale price
€5.743,24
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3313.610
The LCU CW essentially comprises an air/water heat exchanger, fans and the controller. It is used to dissipate heat from network/server racks and ensure the effective cooling of built-in components.
| Article number: | SK 3313.610 |
| Design | Rack coolingCW |
| Benefits | Efficient cooling of network/server racks |
| Function principle | The LCU CW is built into the network/server rack adjacent to the 482.6 mm (19") mounting level. The heated air is drawn in at the rear third of the rack, cooled via the heat exchanger, and then expelled again from the front section of the rack. |
| Material | Sheet steel, spray-finished |
| Colour | RAL 9005 |
| Supply includes | 1 liquid cooling unit CW1 support for LCU CW3 m braided hose (for condensate discharge)2 angular hose connectors 90°12 screws M5 x 12 self-tapping NZ/TX301 female multi-point connector (7-pole)1 set of assembly, installation and operating instructions |
| Options | Connect a maximum of 16 CMC III sensors |
| Monitoring | Monitoring of all system-relevant parameters such as server air intake temperature, server waste air temperature, water inlet/return temperature, water flow, cooling output, fan speed, leakage |
| Temperature control | Control of the server inlet temperature |
| IP protection category to IEC 60 529 | IP 20 |
| Duty cycle | 100 % |
| Refrigerant/cooling medium | Cooling medium: Water |
| To fit | Enclosure type: VX IT Standard 19" mounting anglesWidth: ≥ 800 mmHeight: ≥ 2,000 mmDepth: ≥ 1,000 mm |
| Dimensions | Width: 110 mmHeight: 1,866.5 mmDepth: 756 mm |
| Rated operating voltage | 90 – 264 V, 1~, 50 Hz/60 Hz |
| Air throughput (unimpeded air flow) | 1,500 m³/h |
| Rated power input | 0.5 kW |
| DC fans | Yes |
| Fans may be exchanged with the system operational | Yes |
| Water connections | G ¾" external thread |
| Permissible operating pressure (p. max.) | 1 MPa |
| Operating temperature range | 10 °C...50 °C |
| Operating temperature range of cooling medium | 10 °C...30 °C |
| Total cooling output | Useful cooling output L24 (server air inlet temperature) W15: 7.9 kWUseful cooling output L24 (server air inlet temperature) W18: 6.8 kW |
| Packs of | 1 pc(s). |
| Net weight | 92.5 kg |
| Gross weight | 102.5 kg |
| Customs tariff number | 84186900 |
| EAN | 4028177973251 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| Product description | SK 3313.610 Liquid Cooling Unit LCU CW, L24/W15: 7.9 kW, WHD: 110x1866.5x756 mm |
