Rittal

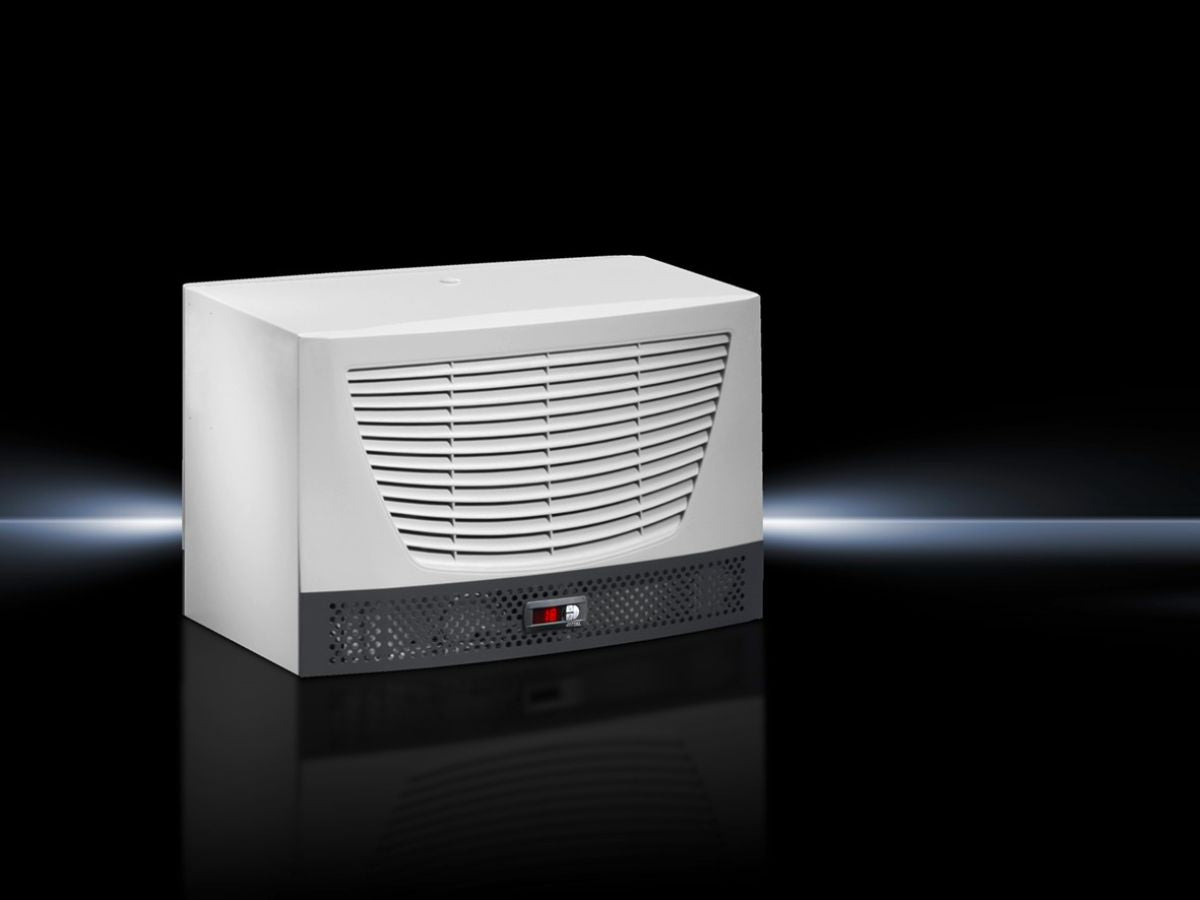

Rittal SK 3319.610, TopTherm chillers 1 - 4 kW
Rittal SK 3319.610, TopTherm chillers 1 - 4 kW
Regular price
€3.413,81
Regular price
Sale price
€3.413,81
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3319.610
Roof-mounted and stand-alone TopTherm chillers are both flexible and compact. They provide for economical chilling of a central cooling water supply for air/water heat exchangers or the like. With nano-coated condenser as standard.
| Article number: | SK 3319.610 |
| Design | Compact, modular layout of the refrigeration componentsPump to convey the medium |
| Benefits | Precise temperature control, based on microprocessor technology |
| Colour | RAL 7035 |
| Supply includes | Condenser with hydrophobic RiNano coatingComplete unit ready for connectionMultilingual documentation including functional diagram and wiring plans |
| Protection category to IEC 60 529 | IP 44 (electrics) |
| Total cooling output Tw10 / Tu32 | Cooling output Tw10 Tu32/50 Hz: 1.2 kWCooling output Tw10 Tu32/60 Hz: 1.3 kW |
| Total cooling output Tw18 / Tu32 | Cooling output Tw18 Tu32/50 Hz: 1.5 kWCooling output Tw18 Tu32/60 Hz: 1.7 kW |
| Total cooling output to DIN EN 14511 Tw18 / Tu35 | Cooling output Tw18 Tu35/50 Hz: 1.7 kWCooling output Tw18 Tu35/60 Hz: 1.9 kW |
| Air throughput (unimpeded air flow) | At 50 Hz: 900 m³/hAt 60 Hz: 900 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Dimensions | Width: 600 mmHeight: 400 mmDepth: 455 mm |
| Temperature control | Microcontroller control (factory setting +20 °C) |
| Operating temperature range | 10 °C...43 °C |
| Operating temperature range of cooling medium | 10 °C...30 °C |
| Temperature hysteresis | ± 2 K |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 0.975 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 0.61 t |
| Pump pressure | At 50 Hz: 2.5 bar |
| Volumetric flow (cooling medium) | At 50 Hz: 3.5 l/minAt 60 Hz: 6 l/min |
| Power consumption Pel | At 50 Hz: 0.86 kWAt 60 Hz: 1.07 kW |
| Rated current max. | At 50 Hz: 5.7 AAt 60 Hz: 5.6 A |
| Energy efficiency ratio (EER) 50 Hz Tw18/Tu35 DIN EN 14511 | 1.77 |
| Water circuit | hermetically open |
| Water connections | G ½" internal thread |
| Number of cooling circuits | 1 |
| Tank | Material: PP plasticVolume: 2.5 l |
| Packs of | 1 pc(s). |
| Net weight | 51 kg |
| Gross weight | 56 kg |
| Customs tariff number | 84186900 |
| EAN | 4028177351165 |
| ETIM 9 | EC002516 |
| ETIM 8 | EC002516 |
| ECLASS 8.0 | 27180713 |
| Product description | SK Chiller TopTherm, standalone, open, 1.7/1.9 kW, 230 V, 1~, 50/60 Hz, WHD: 600 x 400 x 430 mm |
