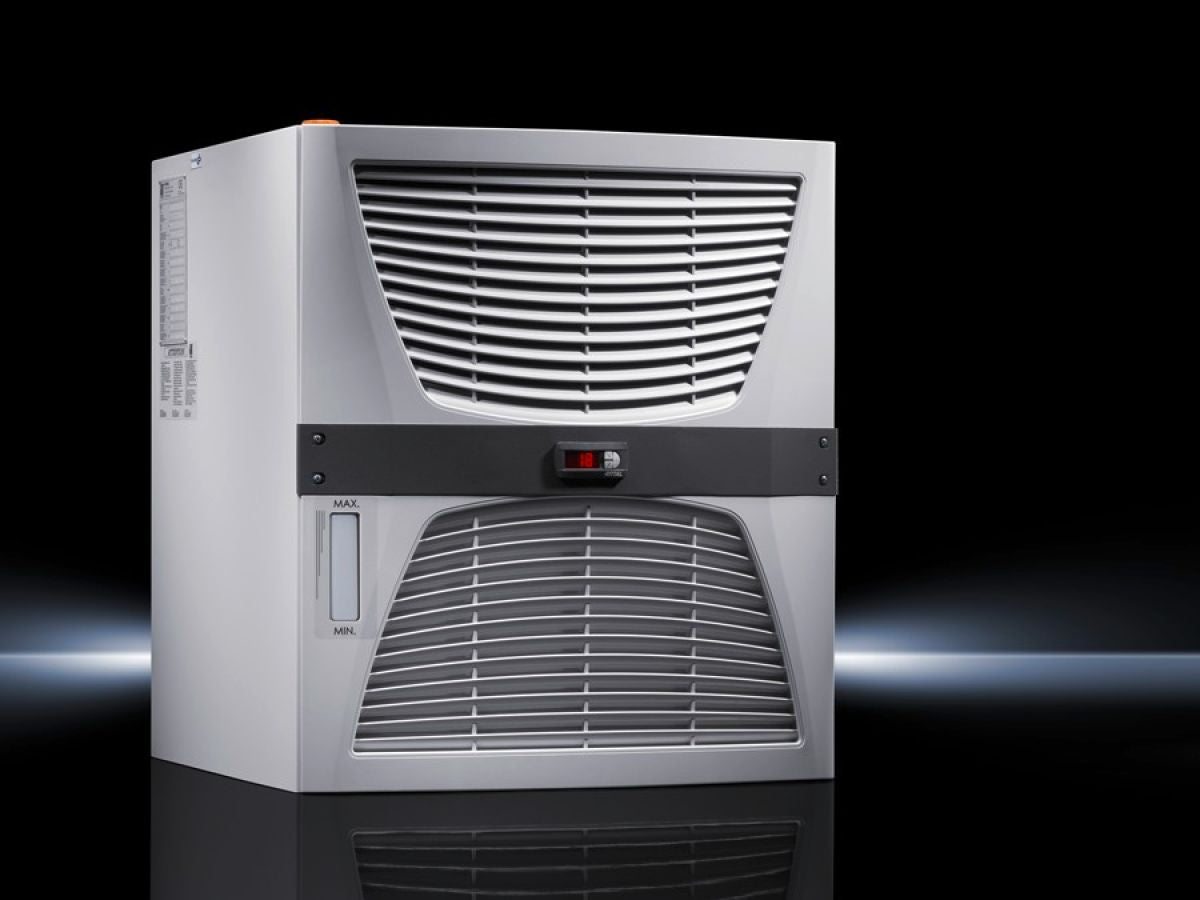

Rittal SK 3320.600, TopTherm chillers 1 - 4 kW
Rittal SK 3320.600, TopTherm chillers 1 - 4 kW
Regular price
€4.745,87
Regular price
Sale price
€4.745,87
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.01.2026
Couldn't load pickup availability
SKU: SKU:SK 3320.600
Roof-mounted and stand-alone TopTherm chillers are both flexible and compact. They provide for economical chilling of a central cooling water supply for air/water heat exchangers or the like. With nano-coated condenser as standard.
| Article number: | SK 3320.600 |
| Design | Compact, modular layout of the refrigeration componentsPump to convey the medium |
| Benefits | Precise temperature control, based on microprocessor technology |
| Colour | RAL 7035 |
| Supply includes | Condenser with hydrophobic RiNano coatingComplete unit ready for connectionMultilingual documentation including functional diagram and wiring plans |
| Protection category to IEC 60 529 | IP 44 (electrics) |
| Total cooling output Tw10 / Tu32 | Cooling output Tw10 Tu32/50 Hz: 2.7 kWCooling output Tw10 Tu32/60 Hz: 3 kW |
| Total cooling output Tw18 / Tu32 | Cooling output Tw18 Tu32/50 Hz: 3 kWCooling output Tw18 Tu32/60 Hz: 3.4 kW |
| Total cooling output to DIN EN 14511 Tw18 / Tu35 | Cooling output Tw18 Tu35/50 Hz: 2.6 kWCooling output Tw18 Tu35/60 Hz: 3.3 kW |
| Air throughput (unimpeded air flow) | At 50 Hz: 1,785 m³/hAt 60 Hz: 1,785 m³/h |
| Rated operating voltage | 400 V, 3~, 50 Hz |
| Dimensions | Width: 602 mmHeight: 676 mmDepth: 645 mm |
| Temperature control | Microcontroller control (factory setting +20 °C) |
| Operating temperature range | 10 °C...43 °C |
| Operating temperature range of cooling medium | 10 °C...30 °C |
| Temperature hysteresis | ± 2 K |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 1.2 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 0.75 t |
| Volumetric flow (cooling medium) | At 50 Hz: 20 l/min |
| Power consumption Pel | At 50 Hz: 2.03 kWAt 60 Hz: 2.67 kW |
| Rated current max. | At 50 Hz: 4.05 AAt 60 Hz: 4.35 A |
| Energy efficiency ratio (EER) 50 Hz Tw18/Tu35 DIN EN 14511 | 2.53 |
| Water circuit | Open |
| Water connections | G ½" internal thread |
| Number of cooling circuits | 1 |
| Tank | Material: PP plasticVolume: 30 l |
| Packs of | 1 pc(s). |
| Net weight | 88 kg |
| Gross weight | 98 kg |
| Customs tariff number | 84186900 |
| EAN | 4028177351172 |
| ETIM 9 | EC002516 |
| ETIM 8 | EC002516 |
| ECLASS 8.0 | 27180713 |
| Product description | SK Chiller TopTherm, standalone, open, 2.6/3.3 kW, 400-460 V, 3~, 50/60 Hz, WHD: 602 x 676 x 645 mm |
