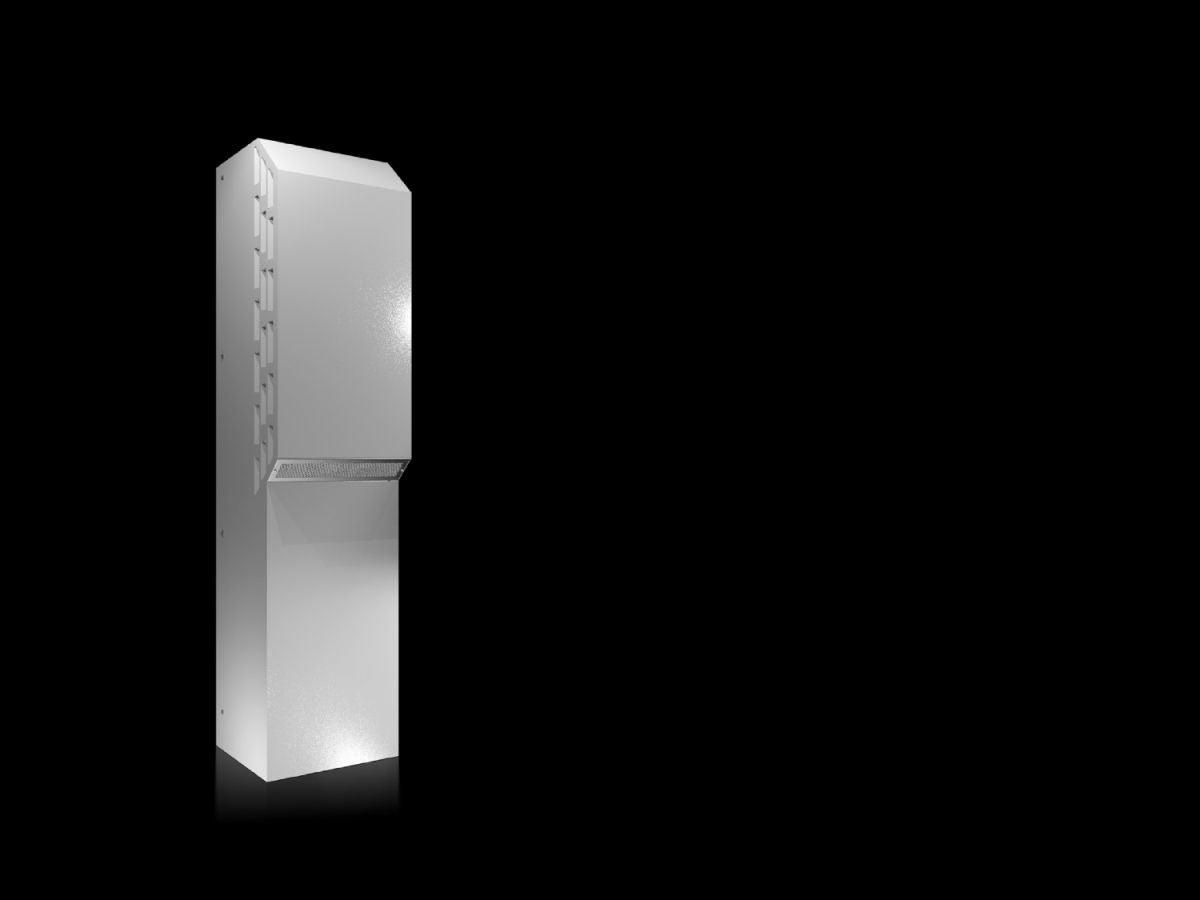

Rittal SK 3329.548, TopTherm wall-mounted cooling unit Blue e, UL Type 3R/4 0.5 - 2.5 kW
Rittal SK 3329.548, TopTherm wall-mounted cooling unit Blue e, UL Type 3R/4 0.5 - 2.5 kW
Regular price
€3.989,48
Regular price
Sale price
€3.989,48
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3329.548
Energy-efficient Blue e wall-mounted cooling units in output categories 500 W to 2,500 W with integral e-Comfort controller and electric condensate evaporation (from 1000 W) as standard, protection category UL Type 3R/4, 12.
| Article number: | SK 3329.548 |
| Design | wall-mounted |
| Product description | Energy-efficient Blue e wall-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard. Protection category UL Type 3R/4, 12. |
| Benefits | Suitable for outdoor siting |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Condenser with hydrophobic RiNano coatingFully wired ready for connection (plug-in terminal strip)Drilling templateAssembly partsIntegral electric condensate evaporation |
| Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 2.55 kWCooling output L35 L35/60 Hz: 2.75 kWCooling output L35 L50/50 Hz: 1.9 kWCooling output L35 L50/60 Hz: 2 kW |
| Rated operating voltage | 400 V, 3~, 50 Hz |
| Rated current max. | At 50 Hz: 3.3 AAt 60 Hz: 3.4 A |
| Start-up current max. | At 50 Hz: 6.8 AAt 60 Hz: 7.6 A |
| Air throughput (unimpeded air flow) | External circuit: 1,200 m³/hInternal circuit: 1,200 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 2.14Refrigeration factor L35 L35 (EER) 60 Hz: 1.44 |
| Design | wall-mounted |
| Dimensions | Width: 405 mmHeight: 1,650 mmDepth: 388 mm |
| Protection category to IEC 60 529 | External circuit IP 34 |
| Protection category NEMA | UL Type 3R |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 1.1 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 0.69 t |
| Temperature control | e-Comfort controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...50 °C |
| Operating temperature | Compressor cooling mode from +10 °C ambient temperature. Only the internal fan is active in the temperature range -20 °C to +10 °C. |
| Storage temperature range | -40 °C...70 °C |
| Setting range | 20 °C...50 °C |
| Power consumption Pel | Power consumption L35 L35/50 Hz: 1.19 kWPower consumption L35 L35/60 Hz: 1.78 kWPower consumption L35 L50/50 Hz: 1.45 kWPower consumption L35 L50/60 Hz: 1.75 kW |
| Permissible operating pressure (p. max.) | 28 bar |
| Pre-fuse | Motor circuit-breaker: 6.3...10 A |
| Packs of | 1 pc(s). |
| Net weight | 84 kg |
| Gross weight | 95 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177937116 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| ECLASS 8.0 | 27180704 |
| Product description | SK cooling unit Blue e, wall-mounted, UL Type 3R/4,, 2.43 kW, 400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz,, Sheet steel,, WHD: 405 x 1650 x 388 mm, |
