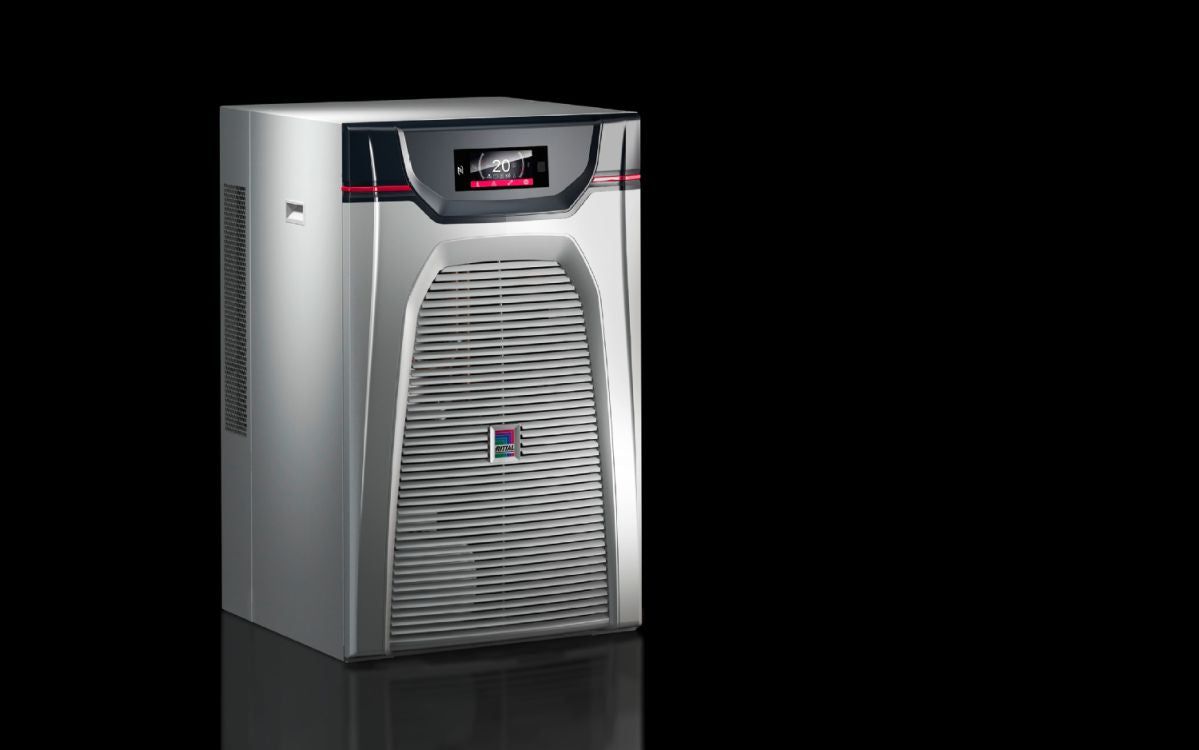

Rittal SK 3334.300, Chillers Blue e+ 1 - 6 kW
Rittal SK 3334.300, Chillers Blue e+ 1 - 6 kW
Regular price
€5.114,03
Regular price
Sale price
€5.114,03
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.01.2026
Couldn't load pickup availability
SKU: SKU:SK 3334.300
Blue e+ chillers are efficient, flexible and compact. They offer central, cost-effective chilling of the cooling water and are used to supply air/water heat exchangers etc. Up to 70% energy savings thanks to speed-controlled components and inverter technology. International approvals and multi-voltage capability for worldwide use. Intuitive operation via touch display and intelligent communications interfaces ensure user-friendly operation and analysis.
| Article number: | SK 3334.300 |
| Benefits | Blue e+ chillers ensure centralised and efficient cooling of liquid media with a high level of temperature accuracy and innovative DC inverter technology |
| Colour | Textured RAL 7035 |
| Supply includes | Complete unit ready for connection (plug-in terminal strip)Multilingual documentation |
| Options | For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages. |
| Protection category to IEC 60 529 | IP 24 |
| Total cooling output Tw10 / Tu32 | Cooling output Tw10 Tu32/50 Hz: 2.87 kWCooling output Tw10 Tu32/60 Hz: 2.77 kW |
| Total cooling output Tw18 / Tu32 | Cooling output Tw18 Tu32/50 Hz: 4.18 kWCooling output Tw18 Tu32/60 Hz: 4.08 kW |
| Total cooling output to DIN EN 14511 Tw18 / Tu35 | Cooling output Tw18 Tu35/50 Hz: 4 kWCooling output Tw18 Tu35/60 Hz: 3.9 kW |
| Air throughput (unimpeded air flow) | At 50 Hz: 1,850 m³/hAt 60 Hz: 1,850 m³/h |
| Rated operating voltage | 380 V - 415 V, 3~, 50 Hz |
| Dimensions | Width: 450 mmHeight: 820 mmDepth: 710 mm |
| Note | By downloading the software, a contract is concluded between the contractual partner and Rittal for the free use of the software in accordance with these licence conditions. |
| Temperature control | e+ controller (factory setting +20 °C) |
| Operating temperature range | -5 °C...50 °C |
| Storage temperature range | -40 °C...70 °C |
| Operating temperature range of cooling medium | 5 °C...35 °C |
| Temperature hysteresis | ± 0.5 K |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 0.7 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 0.44 t |
| Pump pressure | At 50 Hz: 2.9 bar |
| Volumetric flow (cooling medium) | At 50 Hz: 15 l/min |
| Power consumption Pel | At 50 Hz: 2.63 kWAt 60 Hz: 2.9 kW |
| Rated current max. | At 50 Hz: 4 AAt 60 Hz: 3.8 A |
| Pre-fuse | Miniature circuit-breaker/fuse: 15 A |
| Energy efficiency ratio (EER) 50 Hz Tw18/Tu35 DIN EN 14511 | 2.53 |
| Water circuit | hermetically open |
| Water connections | ¾" internal thread |
| Number of cooling circuits | 1 |
| Tank | Material: PE plasticVolume: 12 l |
| Packs of | 1 pc(s). |
| Net weight | 90 kg |
| Gross weight | 107 kg |
| Customs tariff number | 84186900 |
| EAN | 4028177809840 |
| ETIM 9 | EC002516 |
| ETIM 8 | EC002516 |
| ECLASS 8.0 | 27180713 |
| Product description | SK Chiller Blue e+, 4 kW, 380-415 V, 440-480 V, 3~, 50/60 Hz, WHD: 450 x 820 x 710 mm |
