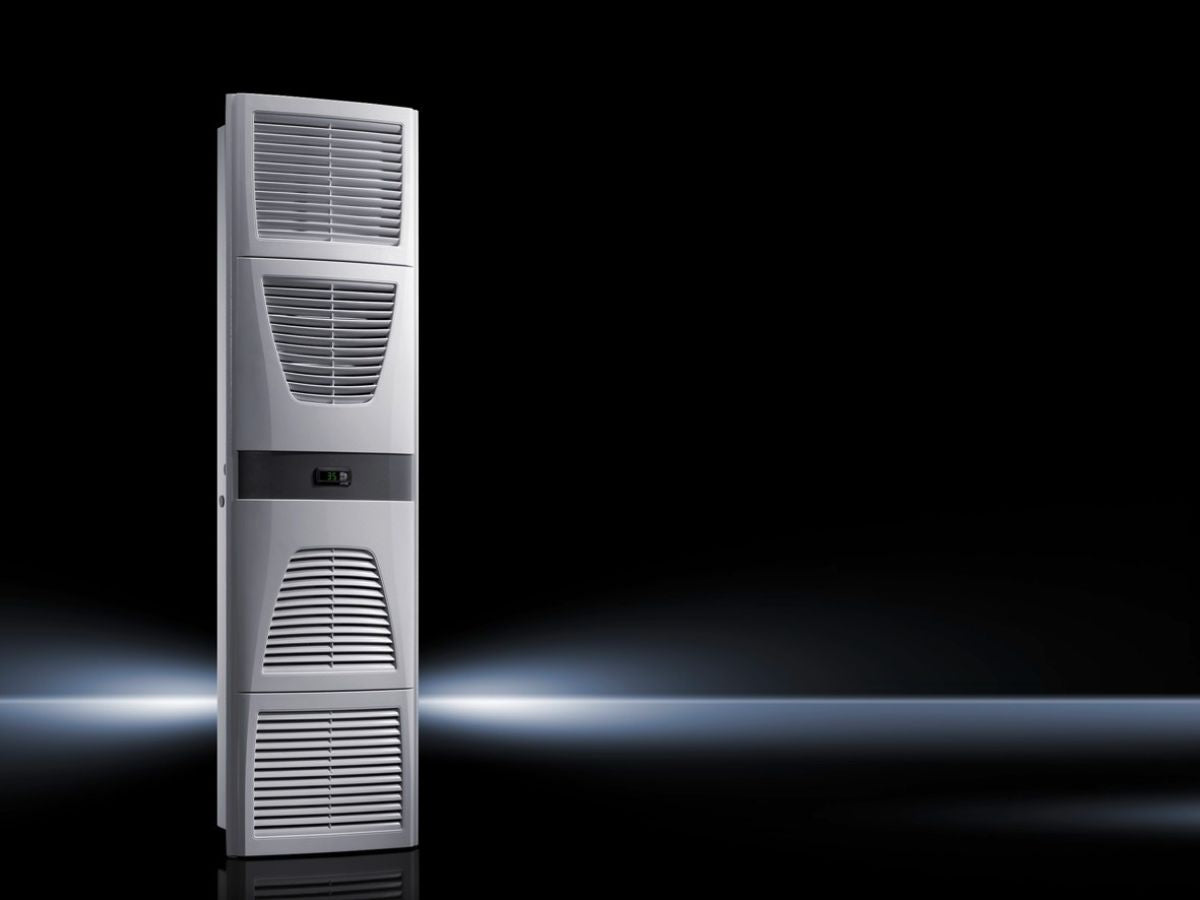

Rittal SK 3366.505, TopTherm wall-mounted cooling unit Blue e 0.3 - 4 kW
Rittal SK 3366.505, TopTherm wall-mounted cooling unit Blue e 0.3 - 4 kW
Regular price
€2.275,88
Regular price
Sale price
€2.275,88
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3366.505
Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W). Available in the special formats "horizontal" and "flat".
| Article number: | SK 3366.505 |
| Design | wall-mountedFlat |
| Product description | Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W). |
| Benefits | May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Fully wired ready for connection (plug-in terminal strip)Drilling templateAssembly partsIntegral electric condensate evaporationAssembly parts for internal mountingCondenser with hydrophobic RiNano coating |
| Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 1.25 kWCooling output L35 L35/60 Hz: 1.25 kWCooling output L35 L50/50 Hz: 0.85 kWCooling output L35 L50/60 Hz: 0.92 kW |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Note on Model No. | For external mounting of the cooling unit, trim frame 3377.000 including assembly parts may be fitted. This gives the cooling unit a closed front appearance. |
| Rated current max. | At 50 Hz: 6.5 AAt 60 Hz: 6.9 A |
| Start-up current max. | At 50 Hz: 21 AAt 60 Hz: 23 A |
| Air throughput (unimpeded air flow) | External circuit: 910 m³/hInternal circuit: 860 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 1.69Refrigeration factor L35 L35 (EER) 60 Hz: 1.79 |
| Design | wall-mounted |
| Special design | Flat |
| Dimensions | Width: 435 mmHeight: 1,590 mmDepth: 205 mm |
| Protection category to IEC 60 529 | External circuit IP 34 |
| Protection category NEMA | UL Type 12 |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 0.7 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 0.44 t |
| Temperature control | e-Comfort controller (factory setting +35 °C) |
| Operating temperature range | 10 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Setting range | 20 °C...50 °C |
| Power consumption Pel | Power consumption L35 L35/50 Hz: 0.74 kWPower consumption L35 L35/60 Hz: 0.8 kWPower consumption L35 L50/50 Hz: 0.8 kWPower consumption L35 L50/60 Hz: 0.9 kW |
| Permissible operating pressure (p. max.) | 28 bar |
| Pre-fuse | Miniature circuit-breaker/fuse: 10 A |
| Packs of | 1 pc(s). |
| Net weight | 50 kg |
| Gross weight | 59 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177977587 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| ECLASS 8.0 | 27180704 |
| Product description | SK Cooling unit Blue e, wall-mounted, slimline, 1.25 kW, 230 V, 1~, 50-60 Hz, sheet steel, WHD: 435 x 1590 x 205 mm |
