Rittal

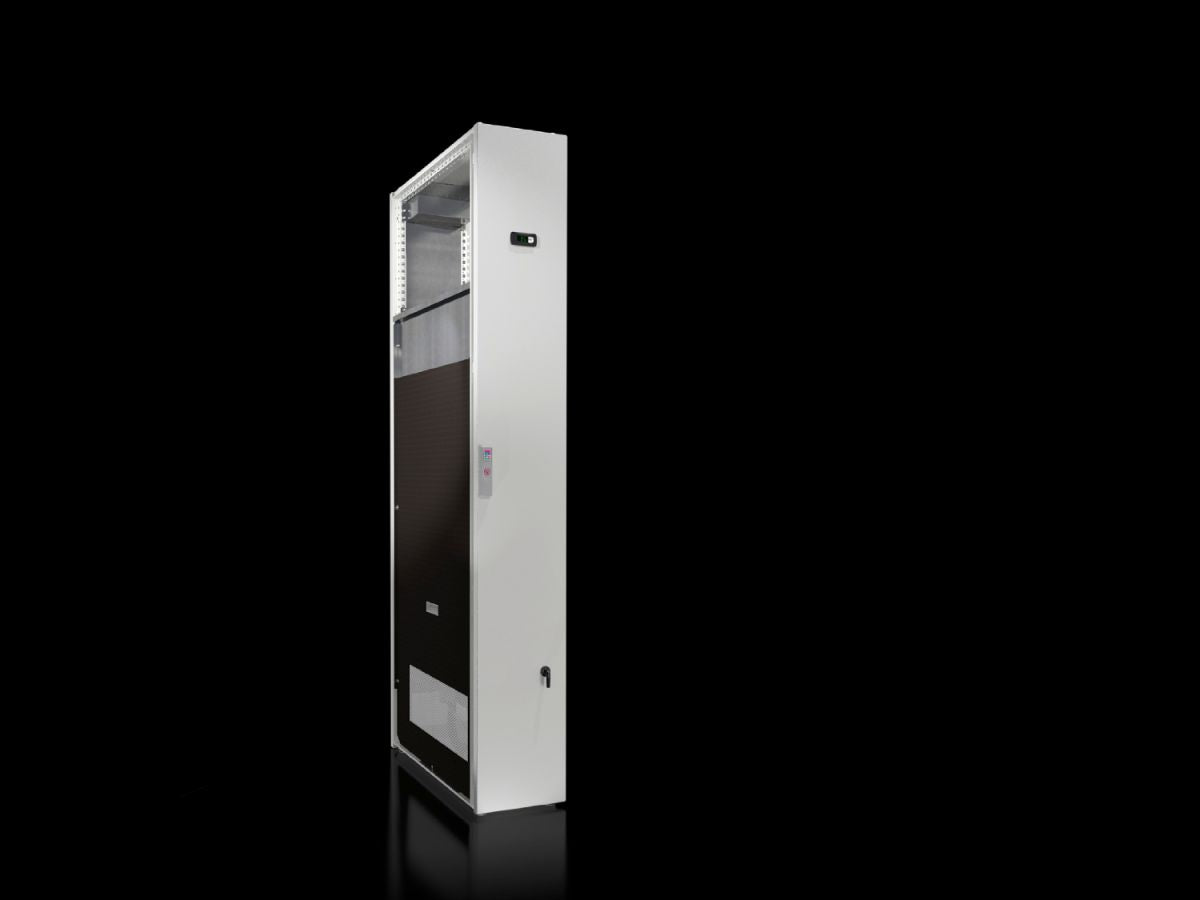

Rittal SK 3378.380, Liquid Cooling Package LCP rack industry
Rittal SK 3378.380, Liquid Cooling Package LCP rack industry
Regular price
€5.313,50
Regular price
Sale price
€5.313,50
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3378.380
Air/water heat exchanger in the bayed enclosure system VX25. To fit 600 or 800 mm deep, 2,000 mm high VX25 enclosures. Air outlet either with 5 kW on each side or 10 kW on one side only. Flexible options for water connection on the top or bottom of the unit.
| Article number: | SK 3378.380 |
| Design | Water-carrying parts, copper/brass (Cu/CuZn) |
| Product description | Air/water heat exchanger in the bayed enclosure system VX25. To fit 600 or 800 mm deep and 2,000 mm high VX25 enclosures. Air outlet either with 5 kW on each side or 10 kW on one side only. Flexible options for water connection on the top or bottom of the unit. |
| Colour | RAL 7035 |
| Supply includes | Cooling unit ready for connection, wired to terminal stripFront door with displayRear panelMultilingual documentation |
| Total cooling output | L 35 W 10 at 2000 l/h: 9.5 kW |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Power consumption Pel | At 50 Hz: 350 WAt 60 Hz: 350 W |
| Rated current max. | At 50 Hz: 2.65 AAt 60 Hz: 2.62 A |
| Permissible operating pressure (p. max.) | 1 ‐ 6 bar |
| Type of electrical connection | Connection clamp |
| Duty cycle | 100 % |
| Cooling medium | Water (see Internet for specifications) |
| Water inlet temperature | 7 °C...30 °C |
| Water connections | G ¾" internal thread |
| Temperature control | e-Comfort controller (factory setting +35 °C) |
| Operating temperature range | 5 °C...70 °C |
| Note | Bayable by screw-fastening at the sides |
| Dimensions | Width: 300 mmHeight: 2,000 mmDepth: 800 mm |
| Noise level | 60 dB(A) |
| Pre-fuse | Miniature circuit-breaker/fuse: 4 A |
| Setting range | 20 °C...55 °C |
| Protection category to IEC 60 529 | IP 55 |
| Packs of | 1 pc(s). |
| Net weight | 127.5 kg |
| Gross weight | 135.5 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177958272 |
| ETIM 9 | EC002515 |
| ETIM 8 | EC002515 |
| ECLASS 8.0 | 27180712 |
| Product description | SK Liquid cooling package, air/water heat exchanger in the bayed enclosure system VX25, 9.5 kW, 230 V, 1~, 50/60 Hz, water-carrying parts: copper/brass, WHD: 300 x 2000 x 800 mm |
