Rittal

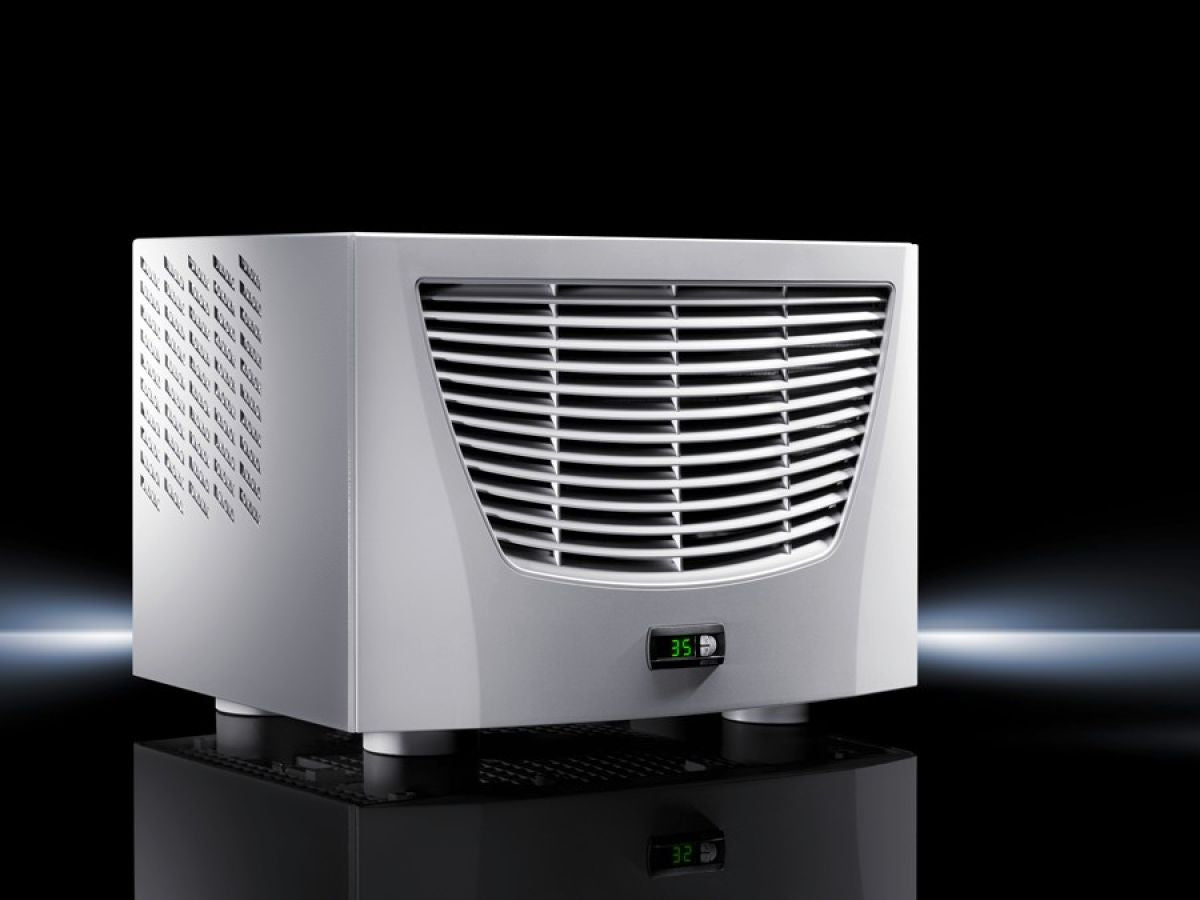

Rittal SK 3383.500, TopTherm Blue e roof-mounted cooling unit Total cooling output 0.50 - 4.00 kW
Rittal SK 3383.500, TopTherm Blue e roof-mounted cooling unit Total cooling output 0.50 - 4.00 kW
Regular price
€1.826,06
Regular price
Sale price
€1.826,06
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3383.500
Energy-efficient Blue e roof-mounted cooling units in output categories from 500 W to 4,000 W with e-Comfort controller integrated as standard and electrical condensate evaporation.
| Article number: | SK 3383.500 |
| Design | roof-mounted |
| Product description | Energy-efficient Blue e roof-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard. |
| Benefits | May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Condenser with hydrophobic RiNano coatingIntegral electric condensate evaporationFully wired ready for connection (plug-in terminal strip)Drilling templateAssembly parts |
| Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 1 kWCooling output L35 L35/60 Hz: 1.09 kWCooling output L35 L50/50 Hz: 0.8 kWCooling output L35 L50/60 Hz: 0.81 kW |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Note | The roof-mounted cooling unit 3273.500 is also suitable for office applications, thanks to its low noise level. |
| Rated current max. | At 50 Hz: 3.1 AAt 60 Hz: 4.5 A |
| Start-up current max. | At 50 Hz: 8.8 AAt 60 Hz: 10.1 A |
| Air throughput (unimpeded air flow) | External circuit: 1,600 m³/hInternal circuit: 491 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 2.4Refrigeration factor L35 L35 (EER) 60 Hz: 1.95 |
| Design | roof-mounted |
| Dimensions | Width: 597 mmHeight: 417 mmDepth: 475 mm |
| Protection category to IEC 60 529 | External circuit IP 34 |
| Refrigerant/cooling medium | Refrigerant: R-513AQuantity: 0.65 kgGlobal Warming Potential (GWP): 631CO₂ equivalent (CO₂e): 0.41 t |
| Type of electrical connection | Plug-in terminal strip |
| Duty cycle | 100 % |
| Temperature control | e-Comfort controller (factory setting +35 °C) |
| Operating temperature range | 10 °C...55 °C |
| Operating temperature max @60 Hz | 53 °C |
| Storage temperature range | -40 °C...70 °C |
| Setting range | 20 °C...53 °C |
| Power consumption Pel | Power consumption L35 L35/50 Hz: 0.42 kWPower consumption L35 L35/60 Hz: 0.56 kWPower consumption L35 L50/50 Hz: 0.48 kWPower consumption L35 L50/60 Hz: 0.65 kW |
| Permissible operating pressure (p. max.) | 28 bar |
| Pre-fuse | Miniature circuit-breaker/fuse: 10 A |
| Packs of | 1 pc(s). |
| Net weight | 41.8 kg |
| Gross weight | 44 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177323216 |
| ETIM 9 | EC000855 |
| ETIM 8 | EC000855 |
| ECLASS 8.0 | 27180704 |
| Product description | SK cooling unit Blue e, roof-mounted, 1 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 597 x 417 x 475 mm |
