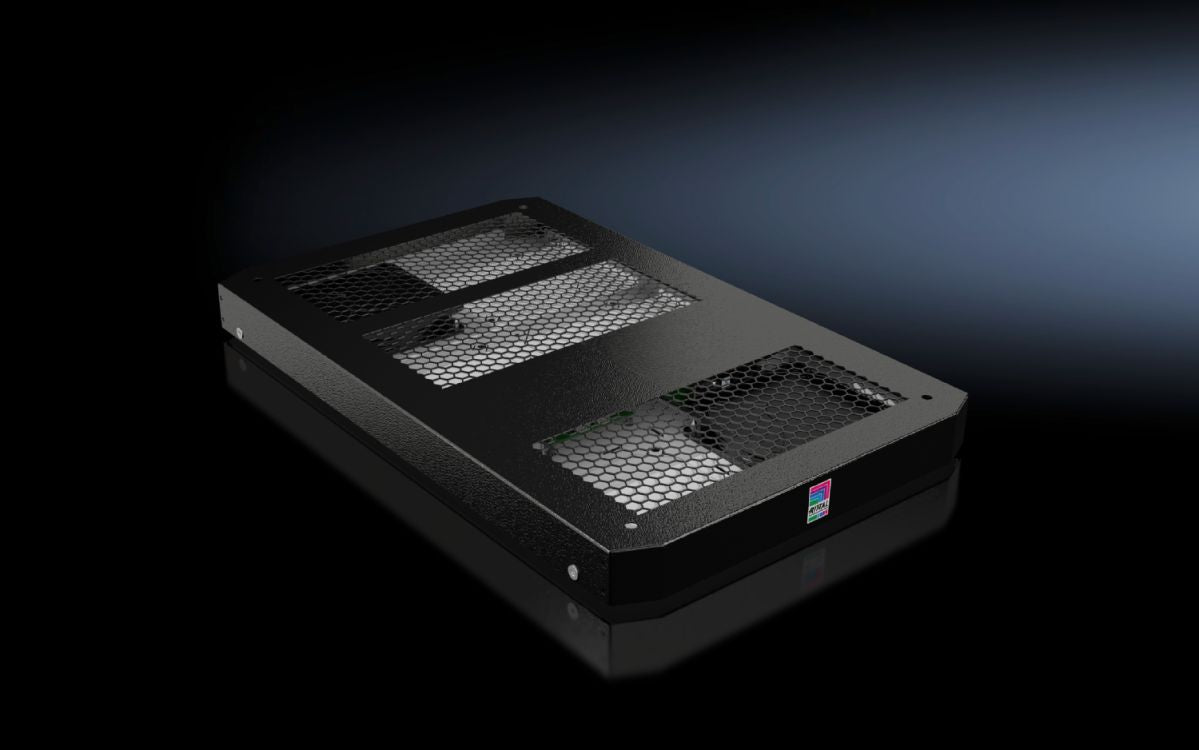

Rittal SK 5503.025, Fan module for VX IT, TS IT
Rittal SK 5503.025, Fan module for VX IT, TS IT
Regular price
€268,53
Regular price
Sale price
€268,53
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 5503.025
For active ventilation. The unit may optionally be extended with additional fans. Simple connection system and energy-efficient speed control.
| Article number: | SK 5503.025 |
| Design | Without roof plate |
| Product description | For active ventilation. The unit may optionally be extended with additional fans. |
| Benefits | Simple connection system with C13 IEC 320 socket |
| Material | Sheet steel, spray-finished |
| Colour | RAL 9005 |
| Supply includes | 1 fan unit2 fansFully wired ready for connectionAssembly partsInstallation and Short User's Guide |
| Air throughput (at operating point) | 280 m³/h |
| Rated operating voltage | 100 V - 240 V, 1~, 50 Hz/60 Hz |
| Rated current max. | At 50 Hz: 0.7 AAt 60 Hz: 0.69 A |
| Dimensions | Width: 550 mmHeight: 42 mmDepth: 340 mm |
| IP protection category to IEC 60 529 | IP 20 |
| Speed | 100 % |
| Pre-fuse | Miniature circuit-breaker/fuse: 10 A |
| Installation options | In VX IT with W x D (mm): 800 x 800 / 800 x 1000 / 800 x 1200 |
| Note | Reduction in the specified air throughput to 280 m³/h at 25 Pa counterpressure |
| Noise level (at operating point) | 46 dB(A) |
| To fit | Enclosure type: VX ITTS IT |
| Operating temperature range | 5 °C...55 °C |
| Power consumption | 42.5 W |
| Packs of | 1 pc(s). |
| Net weight | 3.62 kg |
| Gross weight | 3.62 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177966239 |
| ETIM 9 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK Fan module 100-240 V, 50-60 Hz, speed-controlled, (2 fans, max. 6 fans) 280 m³/h, for VX IT, WxHxD: 550x42x340 mm, RAL 9005 |
