Rittal

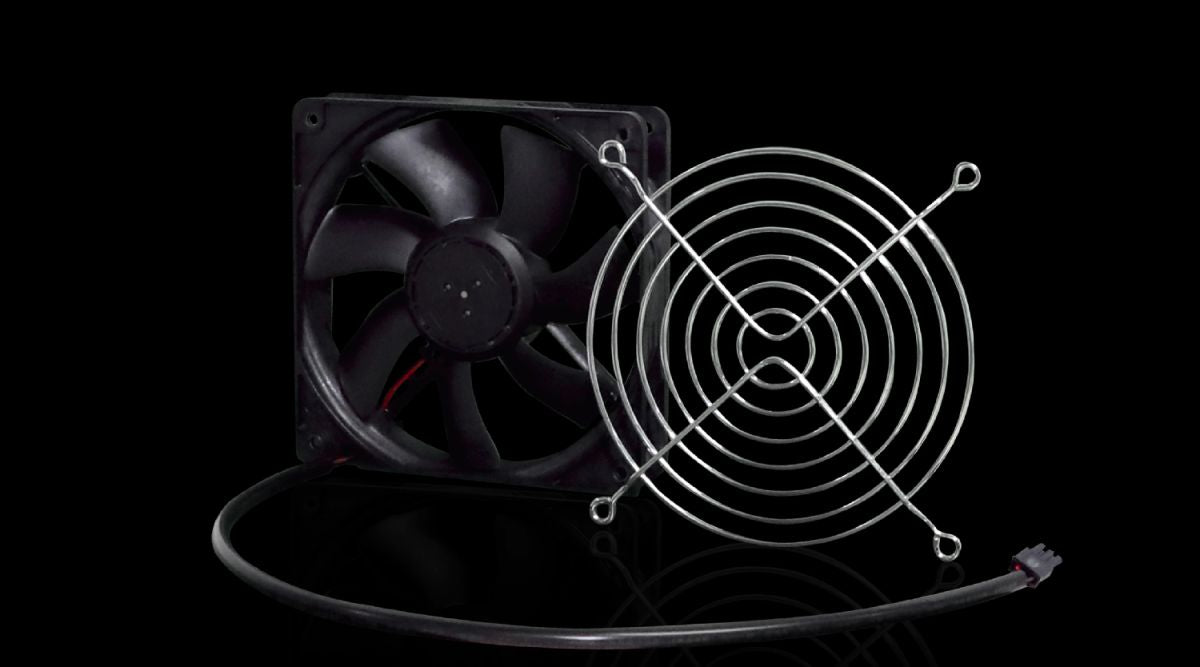

Rittal SK 7990.000, Fan expansion kit for VX IT, TS IT
Rittal SK 7990.000, Fan expansion kit for VX IT, TS IT
Regular price
€57,76
Regular price
Sale price
€57,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SK 7990.000
Fan expansion kit with integral speed control for retrofitting to fan modules 5503.010, 5503.020 and 5503.025.
| Article number: | SK 7990.000 |
| Design | Without roof plate |
| Product description | Fan expansion kit with integral speed control for installing in fan modules 5503.xxx. |
| Benefits | Complete, ready-to-connect solution |
| Material | Plastic |
| Colour | RAL 9005 |
| Supply includes | FanProtective grilleAssembly partsInstallation and Short User's Guide |
| Air throughput (at operating point) | 150 m³/h |
| Rated operating voltage | 24 V (DC) |
| Rated current max. | At 50 Hz: 0.32 AAt 60 Hz: 0.32 A |
| Dimensions | Width: 119 mmHeight: 25 mmDepth: 119 mm |
| IP protection category to IEC 60 529 | IP 20 |
| Speed | 100 % |
| Note | Reduction in the specified air throughput to 150 m³/h at 25 Pa counterpressure |
| Noise level (at operating point) | 44 dB(A) |
| Operating temperature range | 5 °C...55 °C |
| Power consumption | 7.7 W |
| Packs of | 1 pc(s). |
| Net weight | 0.3 kg |
| Gross weight | 0.308 kg |
| Customs tariff number | 84149000 |
| EAN | 4028177966345 |
| ETIM 9 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK Fan expansion kit, speed-controlled, 192 m³/h unimpeded airflow, for fan modules, WHD:119x25x119 mm, RAL 9005 |
