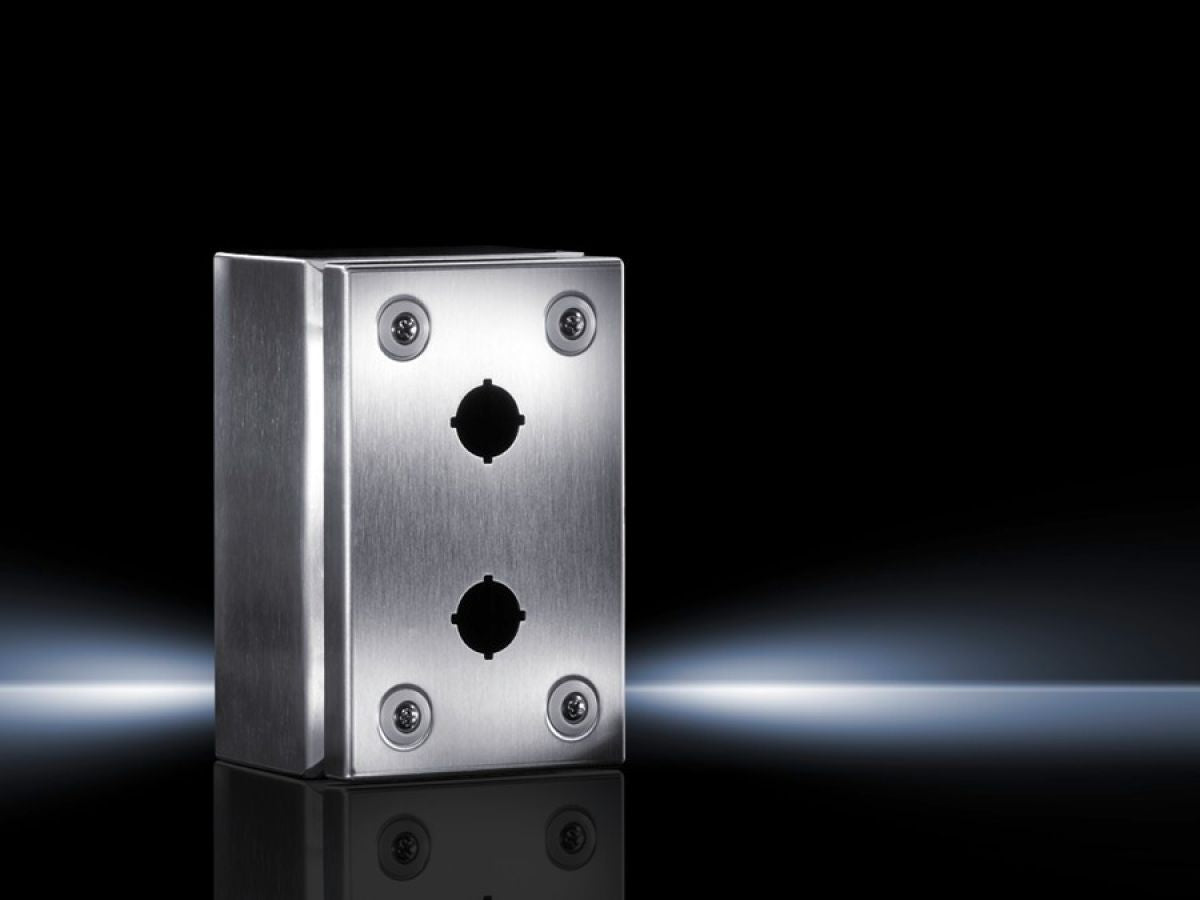

Rittal SM 2384.020, Switch housings Stainless steel
Rittal SM 2384.020, Switch housings Stainless steel
Regular price
€133,16
Regular price
Sale price
€133,16
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SM 2384.020
Switch housing made from stainless steel 1.4301 (AISI 304) with switch cut-outs, diameter: 22.5 mm. Protection category IP 66.
| Article number: | SM 2384.020 |
| Material | Enclosure: Stainless steel 1.4301 (AISI 304)Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal |
| Surface finish | Enclosure and cover: Brushed, grain 240 |
| Supply includes | Enclosure with coverQuick-release fastener including plastic bushes |
| Protection category NEMA | NEMA 4X |
| Protection category to IEC 60 529 | IP 66 |
| IK Code | IK08 |
| Dimensions | Width: 160 mmHeight: 100 mmDepth: 90 mm |
| Material thickness - cover | 1.25 mm |
| Material thickness - enclosure | 1.25 mm |
| Pitch pattern | 60 mm |
| Cut-outs (quantity x diameter) | 2 x 22.5 mm |
| Lock | Lock version: Quick-release fastener including plastic bushesNumber of locks: 4 |
| Cable entry (quantity x diameter) | 2 |
| No. of metric knockouts | 2 |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| Packs of | 1 pc(s). |
| Net weight | 0.98 kg |
| Gross weight | 1 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177529410 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | SM Switch housing, WHD: 160x100x90 mm, Stainless steel 1.4301, without mounting plate, 2 switch cut-outs |
