Rittal

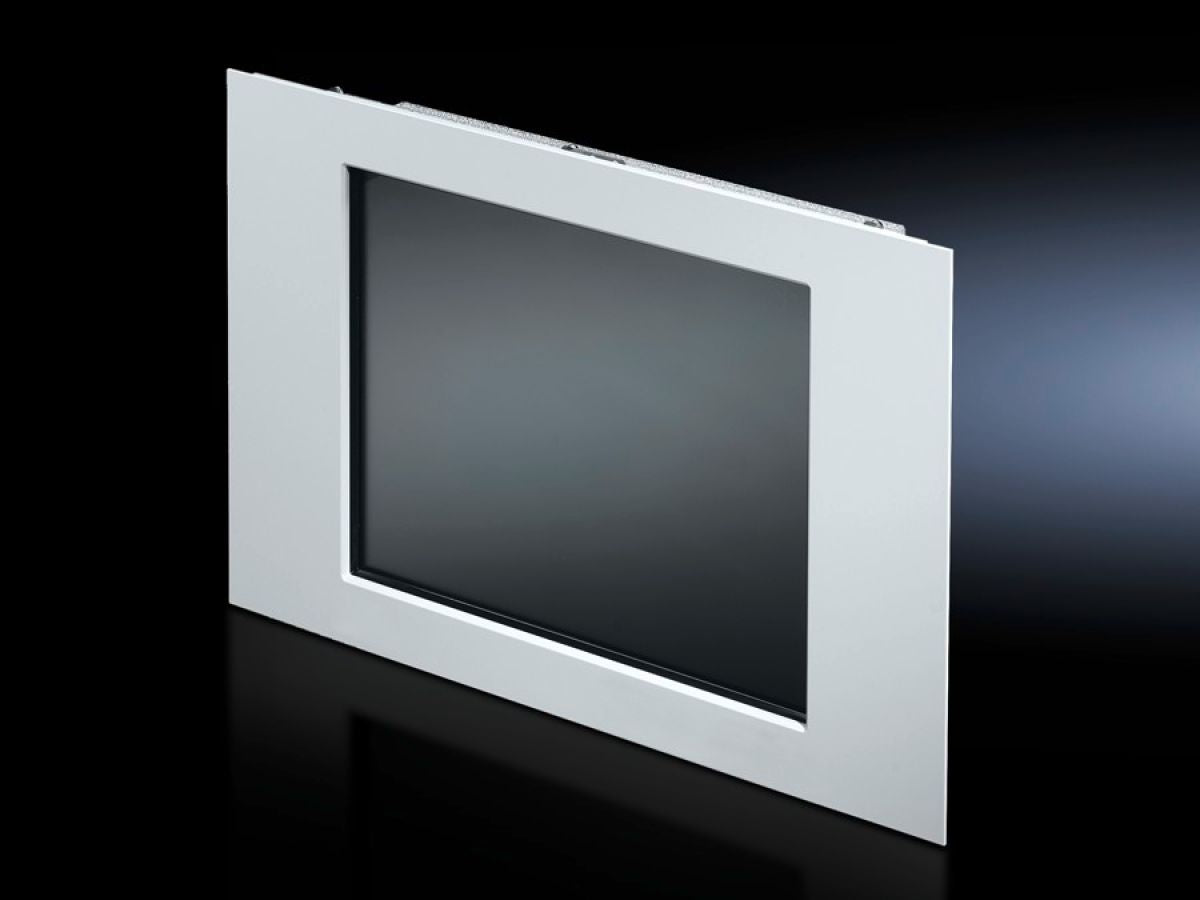

Rittal SM 6450.010, TFT monitor
Rittal SM 6450.010, TFT monitor
Regular price
€1.797,94
Regular price
Sale price
€1.797,94
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SM 6450.010
Installation variant for surfaces and command panels.
| Article number: | SM 6450.010 |
| Design | without touchscreen |
| Product description | Installation variant for surfaces and command panels. |
| Benefits | High-quality industrial design |
| Material | Front frame: Aluminium |
| Surface finish | Powder-coated |
| Colour | RAL 7035 |
| Supply includes | SealHex nuts (for installation in surfaces)VGA cableThreaded bolt M5, for rear mountingTouch variants additionally with integral connection cable and CD-ROM driverWith anti-reflection coated safety glass screen. |
| Dimensions | Width: 430 mmHeight: 343 mm |
| Interfaces | VGA (D-Sub HD 15-pole) |
| Operating temperature range | 0 °C...50 °C |
| Storage temperature range | -40 °C...85 °C |
| Display brightness | 400 cd/m² |
| Contrast ratio | 700 : 1 |
| Diagonal | 15" |
| Hours of operation | > 50,000 h |
| On Screen Display (OSD) | Operating buttons at the rear |
| Reading angle left/right | 80 ° |
| Resolution of display | 1024 x 768 pixels |
| Power consumption Pel | With DC: 15 W |
| H-Sync. (min./max.) | 31.4 ‐ 80 kHz |
| V-Sync. (min./max.) | 60 ‐ 75 Hz |
| Number of colours | 16.7 |
| Resolution of controller | VGA |
| Packs of | 1 pc(s). |
| Net weight | 6.4 kg |
| Gross weight | 6.52 kg |
| Customs tariff number | 85286200 |
| EAN | 4028177389991 |
| ETIM 9 | EC001428 |
| ECLASS 8.0 | 19200201 |
| Product description | SM TFT monitor, 15" |
