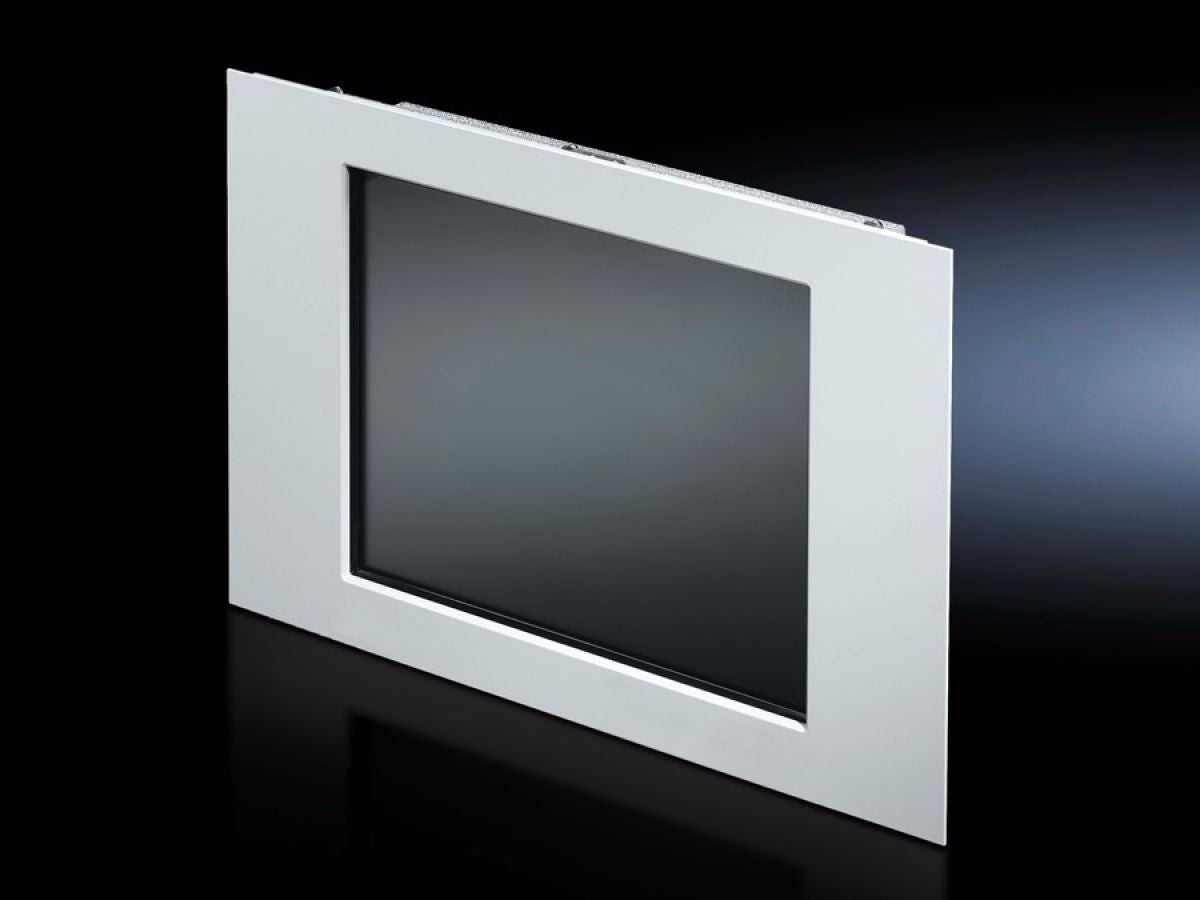

Rittal SM 6450.020, TFT monitor
Rittal SM 6450.020, TFT monitor
Regular price
€2.212,95
Regular price
Sale price
€2.212,95
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SM 6450.020
Installation variant for surfaces and command panels.
| Article number: | SM 6450.020 |
| Design | without touchscreen |
| Product description | Installation variant for surfaces and command panels. |
| Benefits | High-quality industrial design |
| Material | Front frame: Aluminium |
| Surface finish | Powder-coated |
| Colour | RAL 7035 |
| Supply includes | SealHex nuts (for installation in surfaces)VGA cableThreaded bolt M5, for rear mountingTouch variants additionally with integral connection cable and CD-ROM driverWith anti-reflection coated safety glass screen. |
| Dimensions | Width: 482.6 mmHeight: 354.8 mm |
| Interfaces | VGA (D-Sub HD 15-pole) |
| Operating temperature range | 0 °C...50 °C |
| Storage temperature range | -30 °C...85 °C |
| Note on Model No. | Other variants as resistive touchscreen with serial or USB interface available on request. |
| Display brightness | 350 cd/m² |
| Contrast ratio | 1000 : 1 |
| Diagonal | 17" |
| Hours of operation | > 50,000 h |
| On Screen Display (OSD) | Operating buttons at the rear |
| Reading angle left/right | 85 ° |
| Resolution of display | 1280 x 1024 pixels |
| Power consumption Pel | With DC: 20 W |
| H-Sync. (min./max.) | 31.4 ‐ 80 kHz |
| V-Sync. (min./max.) | 60 ‐ 75 Hz |
| Number of colours | 16.7 |
| Resolution of controller | VGA |
| Packs of | 1 pc(s). |
| Net weight | 6.897 kg |
| Gross weight | 7.26 kg |
| Customs tariff number | 85286200 |
| EAN | 4028177442429 |
| ETIM 9 | EC001428 |
| ECLASS 8.0 | 19200201 |
| Product description | SM TFT monitor, 17" |
