Rittal

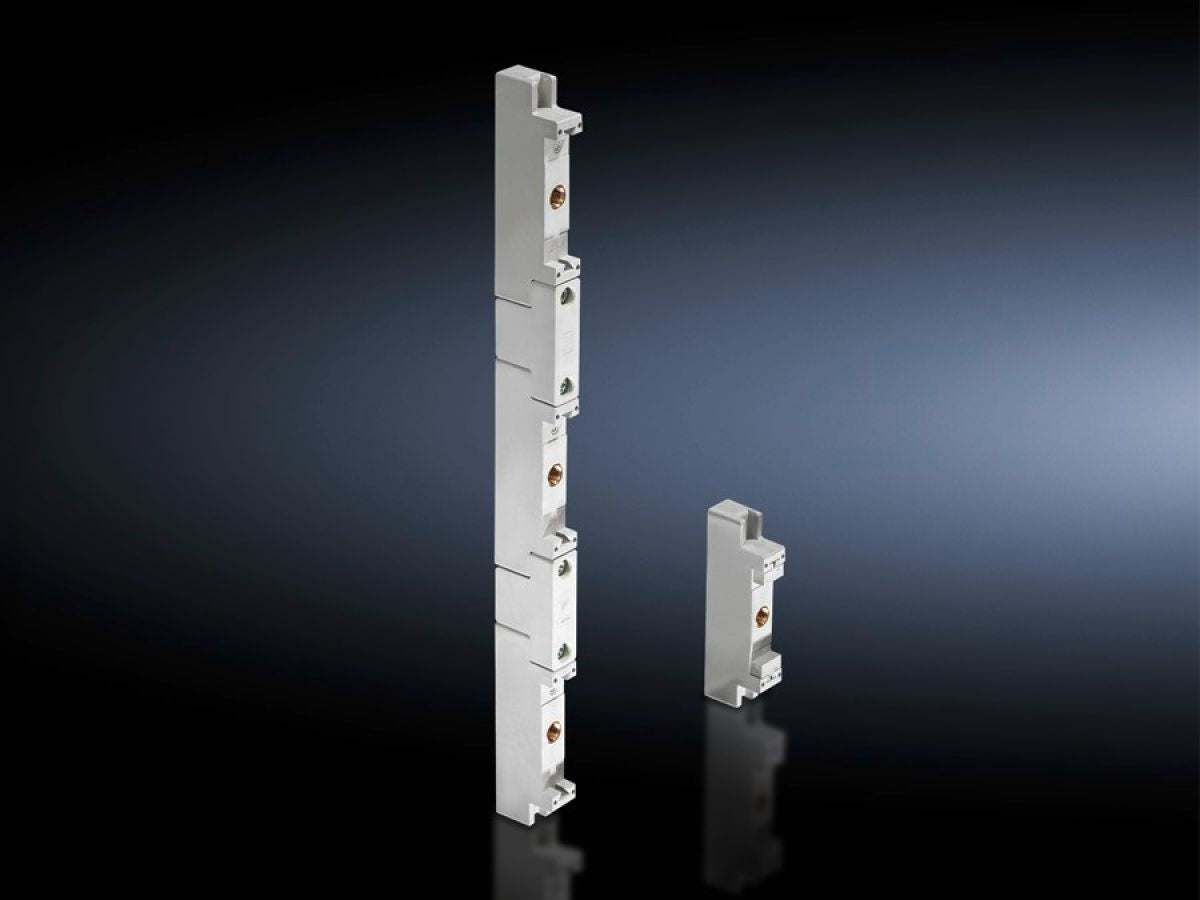

Rittal SV 3052.000, Busbar support
Rittal SV 3052.000, Busbar support
Regular price
€58,19
Regular price
Sale price
€58,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3052.000
For busbar systems 1250 A (100 mm), 1600 A (185 mm), 2500 A (150 mm), 3000 A (150 mm).
| Article number: | SV 3052.000 |
| Material | Fibreglass-reinforced, thermoplastic polyester (PBT)Fire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Number of poles | 3-pole185 mm |
| To fit busbars | 50 x 10 mm |
| Rated current max. | 1,600 A |
| Note on Model No. | The base component of the busbar support may also be used as a single-pole support. |
| Dimensions | Width: 24 mmHeight: 515 mmDepth: 51 mm |
| Packs of | 2 pc(s). |
| Net weight | 1.26 kg |
| Gross weight | 1.338 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177035751 |
| ETIM 9 | EC001166 |
| ETIM 8 | EC001166 |
| ECLASS 8.0 | 27400607 |
| Product description | SV Busbar support, 3-pole, 185 mm bar centre distance, for busbar WH: 50-80x10 mm |
