Rittal

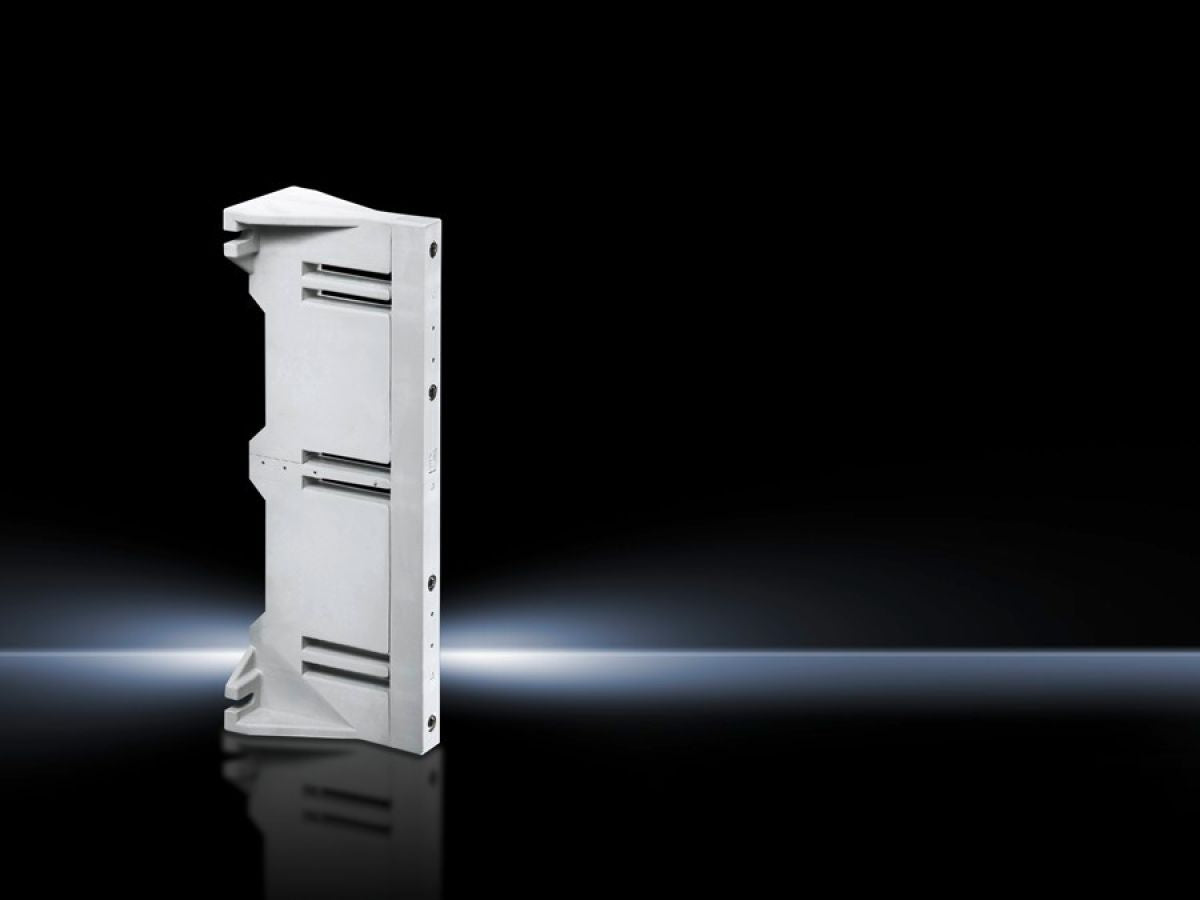

Rittal SV 3055.000, Busbar support
Rittal SV 3055.000, Busbar support
Regular price
€166,57
Regular price
Sale price
€166,57
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3055.000
For busbar systems 1250 A (100 mm), 1600 A (185 mm), 2500 A (150 mm), 3000 A (150 mm).
| Article number: | SV 3055.000 |
| Material | Fibreglass-reinforced, thermoplastic polyester (PBT)Fire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Number of poles | 3-pole150 mm |
| To fit busbars | 60 x 10 mm |
| Rated current max. | 2,500 A |
| Dimensions | Width: 30 mmHeight: 420 mmDepth: 160 mm |
| Packs of | 2 pc(s). |
| Net weight | 4.16 kg |
| Gross weight | 4.503 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177035782 |
| ETIM 9 | EC001166 |
| ETIM 8 | EC001166 |
| ECLASS 8.0 | 27400607 |
| Product description | SV Busbar support, 3-pole, 150 mm bar centre distance, for busbar WH: 80x10 mm |
