Rittal

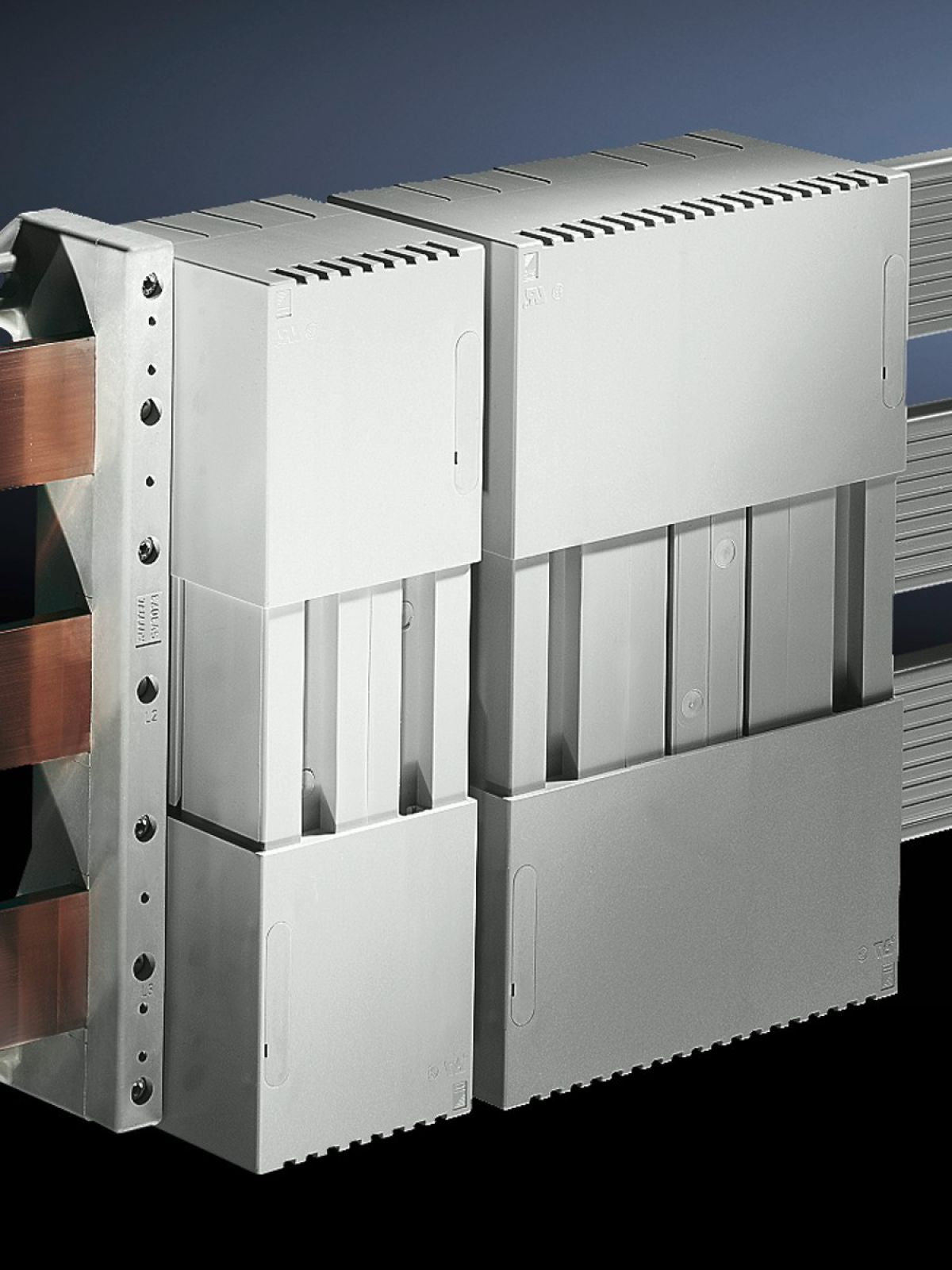

Rittal SV 3091.000, System cover
Rittal SV 3091.000, System cover
Regular price
€113,31
Regular price
Sale price
€113,31
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3091.000
For conductor connection clamps and plate clamps.
| Article number: | SV 3091.000 |
| Product description | For conductor connection clamps and plate clamps. |
| Material | ABSFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Height when mounted on 60 mm busbar systems | 230 mm |
| Height when mounted on 100 mm busbar systems | 325 mm |
| Note | For 3-pole systems with 60/100 mm bar centre distance |
| Dimensions | Width: 200 mmDepth: 110 mm |
| Packs of | 4 pc(s). |
| Net weight | 2 kg |
| Gross weight | 2.597 kg |
| Customs tariff number | 85472000 |
| EAN | 4028177036369 |
| ETIM 9 | EC000775 |
| ETIM 8 | EC000775 |
| ECLASS 8.0 | 27142414 |
| Product description | SV System cover, WD: 200x110 mm, H: 230-325 mm |
